Fasionci: hmm...... that's an interesting proposal!!

Regardless of whether you use reverse lights, or fog lights and if you just connect the lamp wires together to achieve parallel operation - I make the following observations:

• I'm not sure how the internal circuits inside the BCM and the Door modules will react if the module that isn't supplying current sees a back-fed 12V source from the module that is supplying the paralleled lights.
• I'm almost certain that the Door control module won't like supplying extra electrical current to the (relatively) high wattage fog/reverse lamp - given that the internal ciruit for the pin on the door module is designed to run the low-current puddle light

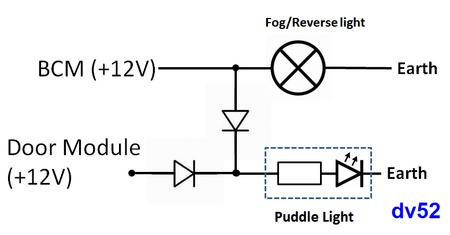

So. if you proceed and as a conservative design for your proposal, I suggest that you provide "blocking diodes" in the circuit (as in my picture).



Don

Thanks for being so thoughtful!

The circuit diagram really helps a lot!

Now I am discussing it with my friend.

We decide to use a 3-Terminal Voltage Regulator to maintain 12v within the puddle lights' circuit.

But still there are some spec-details to test and decide, eg. the wiring route, the puddle-lights' max current, and others.

After all, thanks again!

I will update when the project is done.

[SdvolksArteon]

VCDS (VAG-COM) codes and programmable options for Golf Mk7

This should be easier for you

Enable Mirror LED Light for night parking*
Module 09
Security Access - 31347
Adaptation
Umfeldleuchte als Manoevrierleuchte
Set to Active
Module 6C
Coding
Manoeuvre_Light
Enable

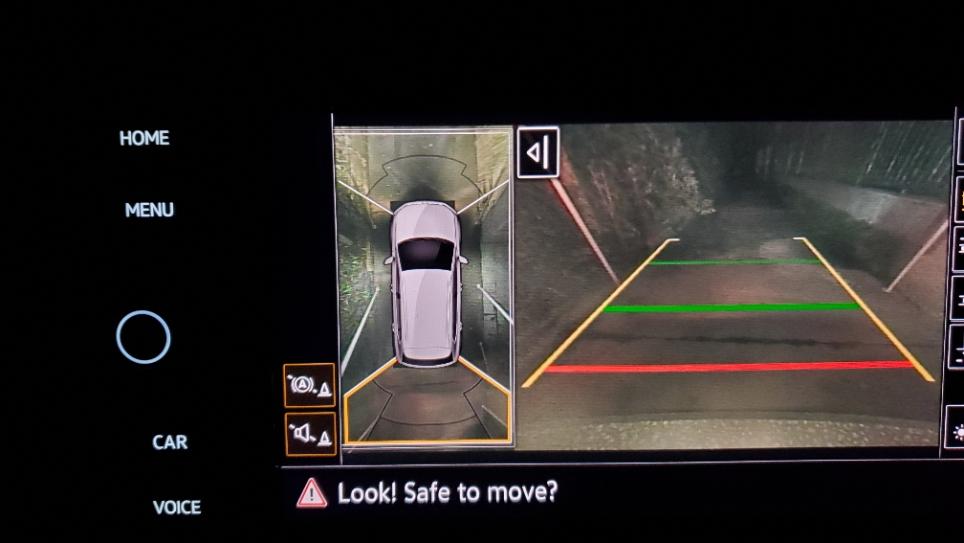

*Viewable only with Area View system, see pic below showing illumination on the ground
under the side view mirrors

[dArK5HaD0w]

This should be easier for you

Enable Mirror LED Light for night parking*
Module 09
Security Access - 31347
Adaptation
Umfeldleuchte als Manoevrierleuchte
Set to Active
Module 6C
Coding
Manoeuvre_Light
Enable
*Viewable only with Area View system, see pic below showing illumination on the ground
under the side view mirrors

i wonder if this will work with cars without the area view? i.e. puddle lights illumimate when reversing

i had a look in my 09-electrics and "Außenlicht_uebergreifend-Umfeldleuchte als Manoevrierleuchte" is currently set to "not active"
i'll set this to active and see if it makes any difference.

[Guest001]

I looked in my TIgs module and that isnt there so no go for us

[fashionci]

This should be easier for you

Enable Mirror LED Light for night parking*
Module 09
Security Access - 31347
Adaptation
Umfeldleuchte als Manoevrierleuchte
Set to Active
Module 6C
Coding
Manoeuvre_Light
Enable
*Viewable only with Area View system, see pic below showing illumination on the ground
under the side view mirrors

Thanks friend!

I tried your method and finally it works!

Awesome!!!

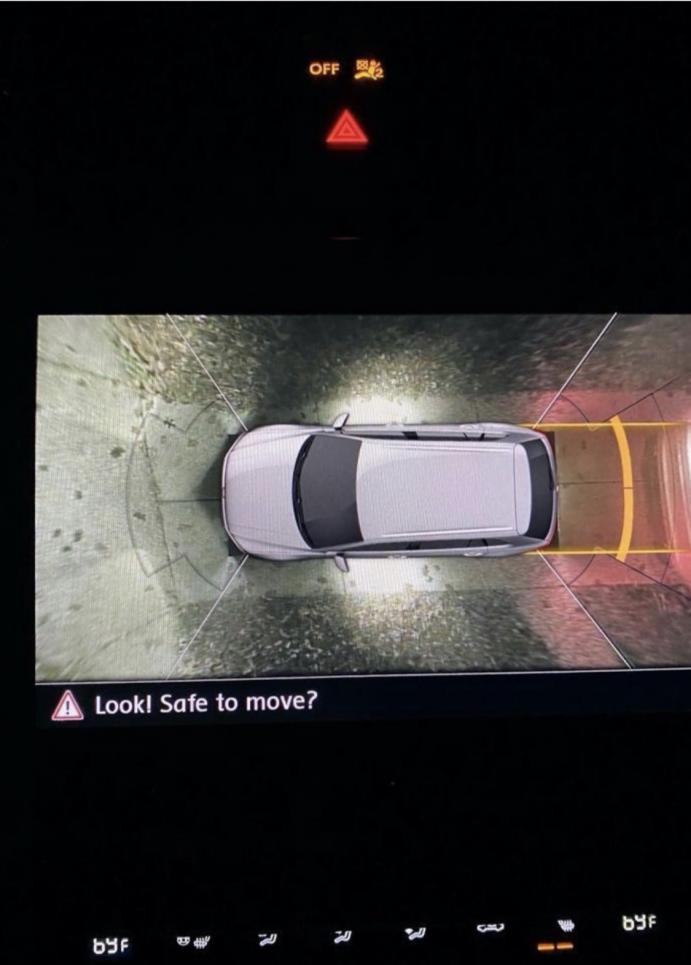

Pic below is the result

[dArK5HaD0w]

i wonder if this will work with cars without the area view? i.e. puddle lights illumimate when reversing

i had a look in my 09-electrics and "Außenlicht_uebergreifend-Umfeldleuchte als Manoevrierleuchte" is currently set to "not active"
i'll set this to active and see if it makes any difference.

Made the change in the 09 module.
My 6C module did not having the coding ability for Manoeuvre Light.

Nothing changed - no puddle lights when I put the car in reverse.

I notice the 09 module is now showing a warning/fault, complaining there is no databus for area view.

So definitely a no go without area view camera, as originally caveated.

[Guest001]

Made the change in the 09 module.
My 6C module did not having the coding ability for Manoeuvre Light.

Nothing changed - no puddle lights when I put the car in reverse.

I notice the 09 module is now showing a warning/fault, complaining there is no database for area view.

So definitely a no go without area view camera, as originally caveated.

Wonder what will happen as mine has the 6C module and can activate that setting but not the one in 09 as its not there

Might try it in the morning Did so with no result

[SdvolksArteon]

Thanks friend!

I tried your method and finally it works!

Awesome!!!

No problem, there are a bunch of mods in the VWvortex forum.

[BlueWater]

There seems to be a lot of knowledge in this thread, I was wondering if someone could help me. I'm trying to adjust the value of the door card lighting / door sill on my MK7.

I've seen a few posts on the internet mention changing:
Leuchte16BLK SLB35BLK SL KC9-Dimmwert AB 16
Leuchte17TFLR SRB3TFL R SR KC3-Dimmwert AB 17

to adust the door card brightness, however these two channels are my indicator inner left rear and indicator inner right rear so thats clearly not right!

I've looked through pretty much every channel I can think of with no luck! I'm positive these should be able to be adjusted as they're dimmable in the MIB interface.

Any help would be great! Thanks.

[DV52]

I'm positive these should be able to be adjusted as they're dimmable in the MIB interface.

hmm.......... I do like your sense of conviction - I've never been "positive" about anything related to car lighting on MQB platform vehicles! It's really all conjecture because the good Burghers @ VW have not released any official explanation about how modules control the 35 x exterior lights on their cars!

That said, perhaps a peak at the wiring diagram for the car might be instructive? The adaptation channels in your post are taken from the Body Control Module (BCM - @ address hex09) and this module is generally responsible for car lighting on early versions of the mk7. On these cars, the entire group of 665 x adaptation channels with the term "Leuchte" in their name control lamps are directly wired to 35 x pins on the BCM.

The door sill lighting is however directly wired to the passenger (J386) & driver (J387) control modules that live @ address hex52 & hex42 respectively on the CAN network. There are no "Leuchte-sets" on either of these 2 x modules (albeit I'm not sure that this is so on the very latest Golf).

Yes, it is correct that the illumination level of the door-sill lighting is adjustable via the MENU together with the footwell lighting. If you think about how this happens, it becomes clear that since the adjustment happens in the MIB unit (which lives @ address hex5F), the control signal for footwell illumination level must be transmitted from the hex5F module to both the BCM and the 2 x door modules via the CAN bus. This has to be a software function that is determined entirely by the module firmware - there is no ability to intervene in this process, other than for the user to set the "slider position" in the MIB screen.

You might want to test my hypothesis like this:
The Leuchte-set for the footwell lighting on is Leuchte30FR LC72 and the illumination level is determined by Dimmwert AB 30. Try changing this value to a low value -then change the "slider position" on the MENU. Re-poll this adaptation channel and you will find that the value has changed as per the "slider position" setting.

But you can add other light functions to the footwell lighting Leuchte-set (thereby affecting the door-sill lighting)- some time ago, I added the turn signal function to this Leuchte-set as an aid for a driver that had hearing difficulties (so that the footwell lighting blinked when the left/right turn signal operated - see here)

Don

[BlueWater]

hmm.......... I do like your sense of conviction - I've never been "positive" about anything related to car lighting on MQB platform vehicles! It's really all conjecture because the good Burghers @ VW have not released any official explanation about how modules control the 35 x exterior lights on their cars!

Hi Don, thanks for the reply!

I've taken a look at the J387 wiring for this, my knowledge isn't great in this area but from what I can tell the door ambient lighting (W87) is controlled by J387 on the T32c connector on pin 8. It seems like a dead end to me.. Sadly not as easy as the BCM having Leuchte-sets per pin!


As you mentioned theres no "Leuchte-sets" in the J387/6. I note this post however on RT
Make interior lights less bright

Particularly:

IDE11477-ENG128587-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_cockpit,1.00 ,256IDE11477-ENG128619-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_dach,1.00 ,256
IDE11477-ENG128539-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_fussraum,0.00 ,256
IDE11477-ENG128571-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_itafel,1.00 ,256
IDE11477-ENG128555-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_lautsprecher,1.00 ,256
IDE11477-ENG128603-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_miko,1.00 ,256
IDE11477-ENG128635-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_psd,1.00 ,256
IDE11477-ENG128523-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_tuer,0.00 ,256

The above is from the 09 BCM. Would it be possible the BCM is sending a CAN message over to the J387/6 to apply voltage based on some of these parameters?


Thanks,
Blue.

[DV52]

As you mentioned theres no "Leuchte-sets" in the J387/6. I note this post however on RT
Make interior lights less bright

Particularly:

IDE11477-ENG128587-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_cockpit,1.00 ,256IDE11477-ENG128619-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_dach,1.00 ,256
IDE11477-ENG128539-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_fussraum,0.00 ,256
IDE11477-ENG128571-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_itafel,1.00 ,256
IDE11477-ENG128555-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_lautsprecher,1.00 ,256
IDE11477-ENG128603-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_miko,1.00 ,256
IDE11477-ENG128635-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_psd,1.00 ,256
IDE11477-ENG128523-Innenbeleuchtung Parameter-p_adaption_kundenwunsch_tuer,0.00 ,256

The above is from the 09 BCM. Would it be possible the BCM is sending a CAN message over to the J387/6 to apply voltage based on some of these parameters?


Thanks,
Blue.

Blue: alas, your question is well beyond my pay-grade - but anything is likely.

TBAx (the author of Ross-Tech post for which your channel list was taken) is extremely knowledgeable - so his suggestion should be taken seriously.

According to Mr Google, in the last channel in your insert, "tuer" means "door" in Eglish - so a pertinent channel perhaps. I'm not sure what effect this channel has on J386/J387 - you could experiment if you want, maybe?

Don

[d_nunn88]

I looked in my TIgs module and that isnt there so no go for us

I think I may have found out how to do this on MK2 Tiguans.

In adaptions in control module 09 Central Electronics, search for “Aussenlicht_uebergreifend” > scroll down that channel until you find “umfeldleuchte als Manoevrierleuchte” > change to “Active”.
Then in control module 6C go to long coding and change “Manoeuvre_Light” to “Active”.

I’m not game to try it in case it thrown an error up but seems like the same instructions as the Golf, just that ours is hidden in a different adaption channel.

Anyone keen to try on their Tig and confirm?

[Guest001]

Maneuver light is already Active in my 6c which is for rearcamera

[Guest001]

I think I may have found out how to do this on MK2 Tiguans.

In adaptions in control module 09 Central Electronics, search for “Aussenlicht_uebergreifend” > scroll down that channel until you find “umfeldleuchte als Manoevrierleuchte” > change to “Active”.
Then in control module 6C go to long coding and change “Manoeuvre_Light” to “Active”.

I’m not game to try it in case it thrown an error up but seems like the same instructions as the Golf, just that ours is hidden in a different adaption channel.

Anyone keen to try on their Tig and confirm?

UPDATE YES IT WORKS Just went out to garage and tried it in the dark Dont know what advantage it is because you cant see the ground where its shining from the drivers seat
