VCDS (VAG-COM) codes and programmable options for Golf Mk7

[marsias]

So far i have figure out the Names, i cant find the names of yellow arrows pointed lamps.(s.Pictures)
Any help from somebody?

[Bladevsneo]

Instrument lighting brightness

Grateful acknowledgement is given to our forum colleague ZEAL8080 for this tweak which will increase the lighting for the clock dials in the instrument cluster during daytime conditions.

The tweak works by altering the settings for the 6 x adaptation channels

Hi Don,

I've been messing around with the adaptation channels for the instrument lighting and I was hoping (since you have more understanding on the subject than most) you could offer some suggestions.

I'm trying to get my cluster to light up full brightness only if the headlight switch is in the off position. In auto position I want the phototransistor to do it's usual voodoo... I turned up the "day-y" dimming curves and as you say it only affects the clock dials and only seems to affect them with the switch in the off position. I put the switch in auto and the lights dim back to a uniform level with the rest of the cluster. So far so good but in the off position, the centre display, needles and indicator lamps on the cluster still remain dull even though the actual clock dials are now bright enough to use as aircraft landing lights!

I upped the levels of the centre display, needles and indicator lamps but they remain bright a.f when I put the switch to auto... Fail there...

Finally I tried altering the phototransistor x and y values but although it increases everything uniformly it is too bright at night and there's not enough adjustment in the infotainment screen to turn them down...

Hope you can offer a suggestion.

Cheers mate
Lex.

[quailallstar]

I was recently acquainted with this tweak by a newbie forum member (thanks harisg). The tweak will illuminate the outer tail-lights (left & right) whenever the hatch is opened. This illumination happens regardless of the position of the rotary light switch, or the time-of-day (i.e. irrespective of whether the car has a RLS/RLHS/RLHS installed, or not). To the extent that the additional illumination provides a "visual" warning for approaching vehicles that a person is at the rear of the car, the tweak is considered a safety feature worthy of implementation.

The tweak is straight-forward and easy to implement, but I have purposefully complicated these instructions to cater of our growing number of USA forum colleagues. As you may be aware, NAR (North American Region) cars have a slightly different lighting arrangement and the factory Leuchte settings for their outer tail-lights are more-functionally rich than our RoW (Rest-of-world)models - due in large part to the fact that the outer tail-lights must also perform the standard blinker activity

A final point - once implemented this tweak will override the normal rear brake-light function. So if you drive with the tailgate opened, the tweak may not be appropriate!

Tail-light illumination when hatch open - Safety feature

1. Select 09 - Central Electr control module
2. Select Security Access - 16 from the "Open Controller" screen
3. Enter the magic number 31347 and return to the "Open Controller" screen
4. Select Adaptation - 10 from the "Open Controller" screen
5. From the pull-down button check that the default settings for the adaptation channels shown in the table below for either your RoW or NAR vehicle are as indicated in the RoW/NAR Setting column
6. For the car type (i.e. RoW, or NAR), change the adaptation channels depicted in the table below to the values in the New Setting column (use the "Search" box to locate the correct channels)


Notes:

1. I've shown the complete Leuchte-set for both outer tail-lights for completeness, For confirmation though:

1. If the car is RoW:

(5)-Leuchte21BR RC8-Lichtfunktion B 21 and
(5)-Leuchte20BR LA71-Lichtfunktion B 20

need to be changed

1. If the car is NAR,

(16)-Leuchte21BR RC8-Lichtfunktion G 21, and
(18 )-Leuchte21BR RC8-Dimmwert GH 21, and
(16)-Leuchte20BR LA71-Lichtfunktion G 20, and
(18 )-Leuchte20BR LA71-Dimmwert GH 20

need to be changed

2. If the default factory settings in the car are not as shown in the table- do not proceed with the tweak

Don, have you known of this mod to work on a NAR MK7.5 with the standard LED tail lamps?

Thanks!
Michael

[DV52]

Hi Don,

I've been messing around with the adaptation channels for the instrument lighting and I was hoping (since you have more understanding on the subject than most) you could offer some suggestions.

I'm trying to get my cluster to light up full brightness only if the headlight switch is in the off position. In auto position I want the phototransistor to do it's usual voodoo... I turned up the "day-y" dimming curves and as you say it only affects the clock dials and only seems to affect them with the switch in the off position. I put the switch in auto and the lights dim back to a uniform level with the rest of the cluster. So far so good but in the off position, the centre display, needles and indicator lamps on the cluster still remain dull even though the actual clock dials are now bright enough to use as aircraft landing lights!

I upped the levels of the centre display, needles and indicator lamps but they remain bright a.f when I put the switch to auto... Fail there...

Finally I tried altering the phototransistor x and y values but although it increases everything uniformly it is too bright at night and there's not enough adjustment in the infotainment screen to turn them down...

Hope you can offer a suggestion.

Cheers mate
Lex.

Lex: Hi. hmm.........while the curve_adjustment channels do allow some flexibility to the illumination thresholds on the dashboard, I'm not sure that they were ever meant to be very sophisticated.

I suspect that your fairly unique "wants" might be outside the capabilities of what is possible - but I'm more than happy to be proven wrong! So I suspect that you may need to accept some form of compromise to your (fairly unique) wants and ultimately I think that you will need to apply changes to a combination of functions - but I'm just guessing.

However, there are a group of similar channels in the hex5F module that might be worth investigating in conjunction with the hex17 module channels. I've not experimented with the hex5F channels below - so I can't be definitive as to whether they will help:

ENG117916-ENG101574-Dimming_Illumination_for_Display_Unit-X1

ENG117916-ENG99557-Dimming_Illumination_for_Display_Unit-X2

ENG117916-ENG102140-Dimming_Illumination_for_Display_Unit-X3

ENG117916-ENG102936-Dimming_Illumination_for_Display_Unit-X4

ENG117916-ENG103548-Dimming_Illumination_for_Display_Unit-X5

ENG117916-ENG113992-Dimming_Illumination_for_Display_Unit-X6

ENG117916-ENG99777-Dimming_Illumination_for_Display_Unit-Y1

ENG117916-ENG100480-Dimming_Illumination_for_Display_Unit-Y2

ENG117916-ENG100773-Dimming_Illumination_for_Display_Unit-Y3

ENG117916-ENG100631-Dimming_Illumination_for_Display_Unit-Y4

ENG117916-ENG102174-Dimming_Illumination_for_Display_Unit-Y5

ENG117916-ENG113993-Dimming_Illumination_for_Display_Unit-Y6

Again, this just a suggestion (guess, really), but I'd welcome any feedback from your experiments -please

Don

[DV52]

Don, have you known of this mod to work on a NAR MK7.5 with the standard LED tail lamps?

Thanks!
Michael

Michael: Hi - good to see a photo of the man-behind-the-name !! I've been thinking about doing the same, but I'm not sure if this is a good idea. The pic that i'm considering is a recent snap of my GF and me (for clarity - I'm male and I'm the one on the left) - what do you think?




On more serious matters, the short answer to your question is alas, NO - because the BCM on mk7.5's seem to vary greatly depending on build-year, model and country of sale.

That said, my tweak instruction uses a very un-sophisticated principle: simply find a "spare" Lichtfunkion channel (read, a Lichtfunkion channel setting not active and with an associated Dimmwert channel that is not zero) on the Leuchte-sets for both the left and right side outer brake lights and change the value to Heckdeckel offen (German for "Boot lid open"). Because the car will (normally) be stationary when the boot is opened, there are no real conflict resolution considerations in this tweak as to where to place this leuchte command - hence it's a relatively benign tweak with a low probability of error IMO.

So, and again with the caveat that my knowledge of the factory programming for the outer brake lights on Mk7.5 NAR LED tail-lights isn't that good - I don't think that there is anything special about these fittings (i.e. the special US style added turn-signal function in the brake-light doesn't apply to LED fittings - I think). This assumes of course that the BCM on your car still uses Leuchte-sets to control the tails!

If my hypothesis is correct, I suspect that the "RC8" and "LA71" Leuchte-sets on these fittings only have one light-function (i.e. Brake light) - which means that an efficient place to add the Heckdeckel offen command would be Lichtfunktion B channel on both Leucht-sets.

But if I'm wrong (entirely possible) and you can't find a workable alternative channel, paste-up one of the brake light Leuchte-sets from your car here.

Don

[quailallstar]

Stunning picture Don I like your sense of humor!

In addition to coding the tail-light on when hatch open feature there are three more tweaks I can't get to work which are fog lights on with high-beams, fog lights flash together with high-beams (when main dipped beam is off/on) and 3rd brake light flash when locking/unlocking car or hazards flash.

My admaps are to long to post here. What's the best way to get these over to you?

[DV52]

^^^ Michael : Load the admaps (in . CSV format-please) on a third party hosting site (like dropbox, or other similar site) - then paste a link where I can access it (either here, or Private Message).

Don

[quailallstar]

^^^ Michael : Load the admaps (in . CSV format-please) on a third party hosting site (like dropbox, or other similar site) - then paste a link where I can access it (either here, or Private Message).

Don

I'll get that uploaded and linked shortly. Thanks!

[quailallstar]

Don - see my admaps below for 09

adpmap-09-5Q0-937-087-BA_3VW6T7AU6KM006717-20191012-0753.CSV - Google Drive

[DV52]

Don - see my admaps below for 09

Thanks for the admap (I'll add it to the others in my database)

For the boot-lid open tweak - do this (bracketed entries are your default values):

ENG116956-ENG116267-Leuchte20BR LA71-Lichtfunktion G 20 > Heckdeckel offen (not active)
ENG116956-ENG116269-Leuchte20BR LA71-Dimmwert GH 20 > 100 (0)

ENG116957-ENG116286-Leuchte21BR RC8-Lichtfunktion G 21 > Heckdeckel offen (not active)
ENG116957-ENG116288-Leuchte21BR RC8-Dimmwert GH 21 > 100 (0)


For the fog light tweak, just follow my instructions HERE

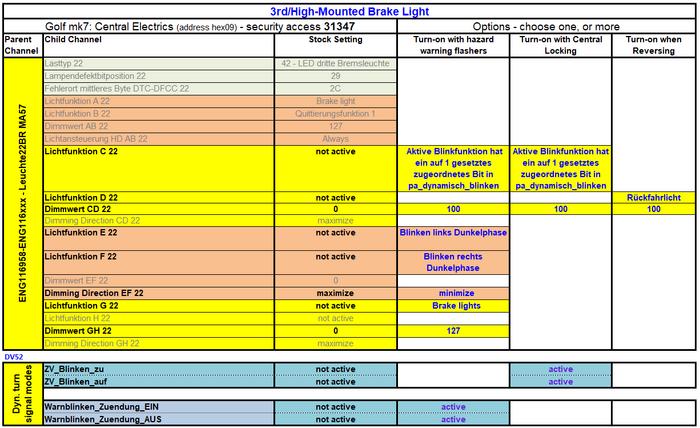

For the 3rd Brake light tweak try this (although I have received feedback that the first 2 x options can be problematic on some mk7.5s):



Don

[Bladevsneo]

Lex: Hi. hmm.........while the curve_adjustment channels do allow some flexibility to the illumination thresholds on the dashboard, I'm not sure that they were ever meant to be very sophisticated.

I suspect that your fairly unique "wants" might be outside the capabilities of what is possible - but I'm more than happy to be proven wrong! So I suspect that you may need to accept some form of compromise to your (fairly unique) wants and ultimately I think that you will need to apply changes to a combination of functions - but I'm just guessing.

However, there are a group of similar channels in the hex5F module that might be worth investigating in conjunction with the hex17 module channels. I've not experimented with the hex5F channels below - so I can't be definitive as to whether they will help:

ENG117916-ENG101574-Dimming_Illumination_for_Display_Unit-X1

ENG117916-ENG99557-Dimming_Illumination_for_Display_Unit-X2

ENG117916-ENG102140-Dimming_Illumination_for_Display_Unit-X3

ENG117916-ENG102936-Dimming_Illumination_for_Display_Unit-X4

ENG117916-ENG103548-Dimming_Illumination_for_Display_Unit-X5

ENG117916-ENG113992-Dimming_Illumination_for_Display_Unit-X6

ENG117916-ENG99777-Dimming_Illumination_for_Display_Unit-Y1

ENG117916-ENG100480-Dimming_Illumination_for_Display_Unit-Y2

ENG117916-ENG100773-Dimming_Illumination_for_Display_Unit-Y3

ENG117916-ENG100631-Dimming_Illumination_for_Display_Unit-Y4

ENG117916-ENG102174-Dimming_Illumination_for_Display_Unit-Y5

ENG117916-ENG113993-Dimming_Illumination_for_Display_Unit-Y6

Again, this just a suggestion (guess, really), but I'd welcome any feedback from your experiments -please

Don

Hi Don, I tried the addresses you suggested but I just kept getting a security access code required. I tried using S12345 as VCDS suggested and although it accepted that code it still came up asking for a code once I tried changing values. Do you have a code I could try?

[DV52]

^^^ I have posted a fulsome set of security codes for MQB platform vehicles (like the mk7) on the Ross-Tech forum HERE.

If you can't access this part of the RT forum, an earlier version of my security code list can be found HERE

Don

[quailallstar]

Referring to this post here.


I just coded option 1 and 2 of the Fog Light Tweak on my NAR spec MY19 GTI with the LED headlamps / fog lamps with success!

[quailallstar]

Thanks for the admap (I'll add it to the others in my database)

For the boot-lid open tweak - do this (bracketed entries are your default values):

ENG116956-ENG116267-Leuchte20BR LA71-Lichtfunktion G 20 > Heckdeckel offen (not active)
ENG116956-ENG116269-Leuchte20BR LA71-Dimmwert GH 20 > 100 (0)

ENG116957-ENG116286-Leuchte21BR RC8-Lichtfunktion G 21 > Heckdeckel offen (not active)
ENG116957-ENG116288-Leuchte21BR RC8-Dimmwert GH 21 > 100 (0)


For the fog light tweak, just follow my instructions HERE

For the 3rd Brake light tweak try this (although I have received feedback that the first 2 x options can be problematic on some mk7.5s):



Don

Boot-lid open tweak works!

Fog light tweak works!

3rd brake light tweak half works and you did mention it could be problematic. After going through the coding chart to compare my stock values against the tweaks I noticed something odd. ENG116302-Leuchte 22BR MA57-Lichtfunktion F 22 stock value was "Ruekfahrlicht" and not set to "Not Active". I went ahead and coded it to "Blinken rechts Dunkelphase" per the instructions and after coding everything else the only visible tweak results are:

1. When using L or R turn signal the 3rd brake light flashes in sequence (didn't really want this because I feel it could confuse drivers??)

2. Hazard button engaged flashed 3rd brake light in sequence with rear turn signals (does not work)

3. Rear turn signals flash in sequence with 3rd brake light (does not work)

[SnakeR32]

Hello, I've got a question about the headlights on my golf 7.5 with "simple led" I've got the \_ _/ and not the \_\_ _/_/. Now is my question:
I want my white drls orange and when I turn the blinkers on it needs to be blinking white. Just the opposite of default from factory. (here in EU) But the most important what I want is that the Amber (corner lights) shining always. Same as US standlight golf 5. I've searched everything but I can't find it. I only find it for the golf 7. Not the 7.5 with led (lowbeam)
