VWW Official MKIV Wheel Q&A

[kapowww]

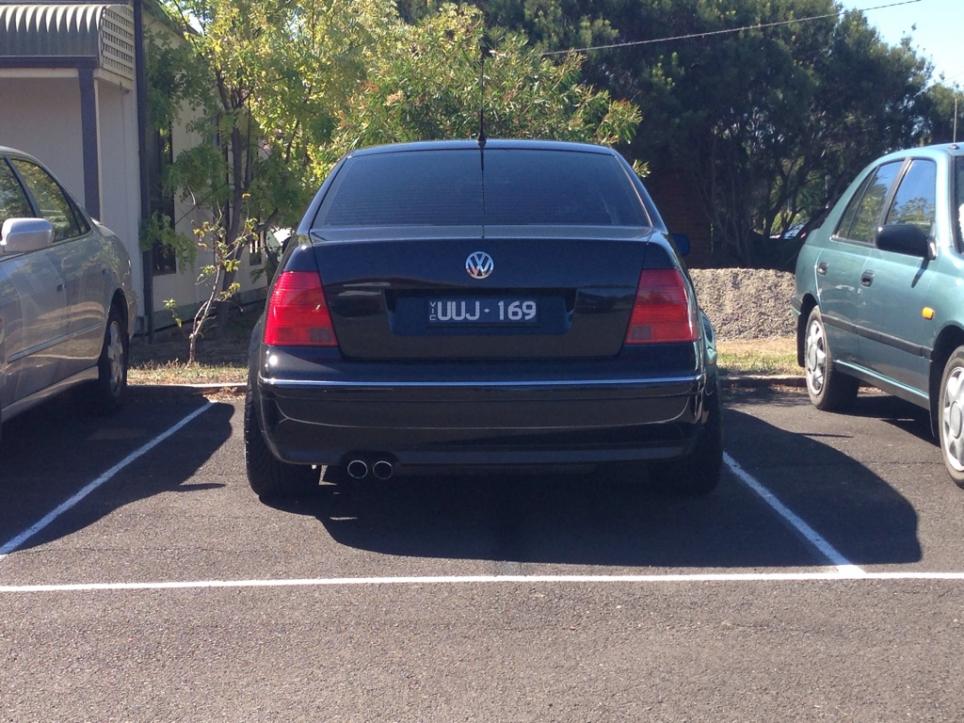

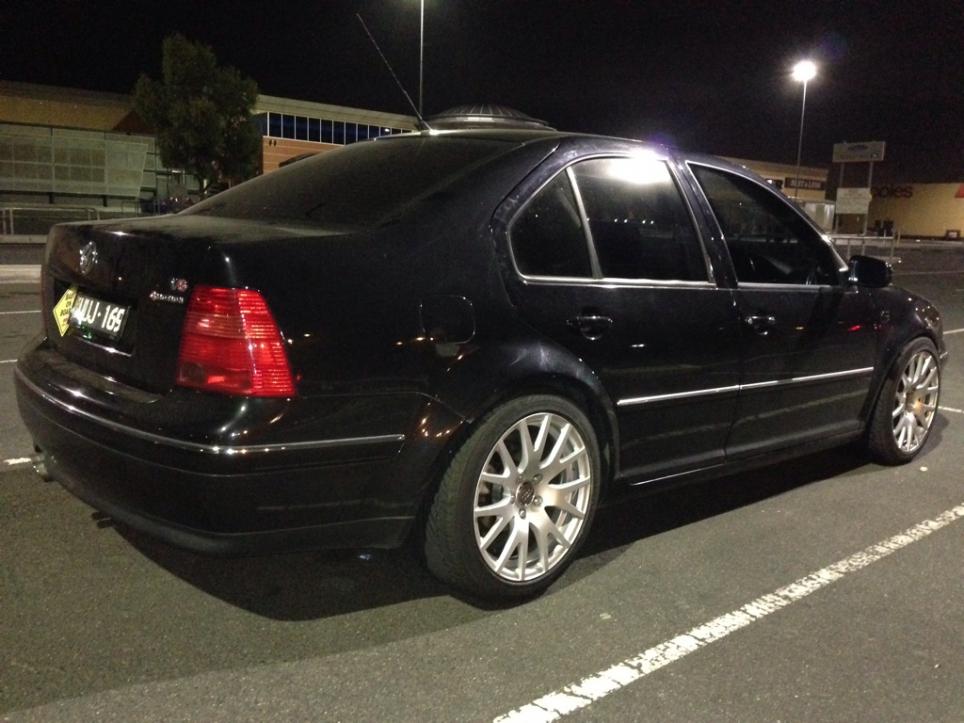

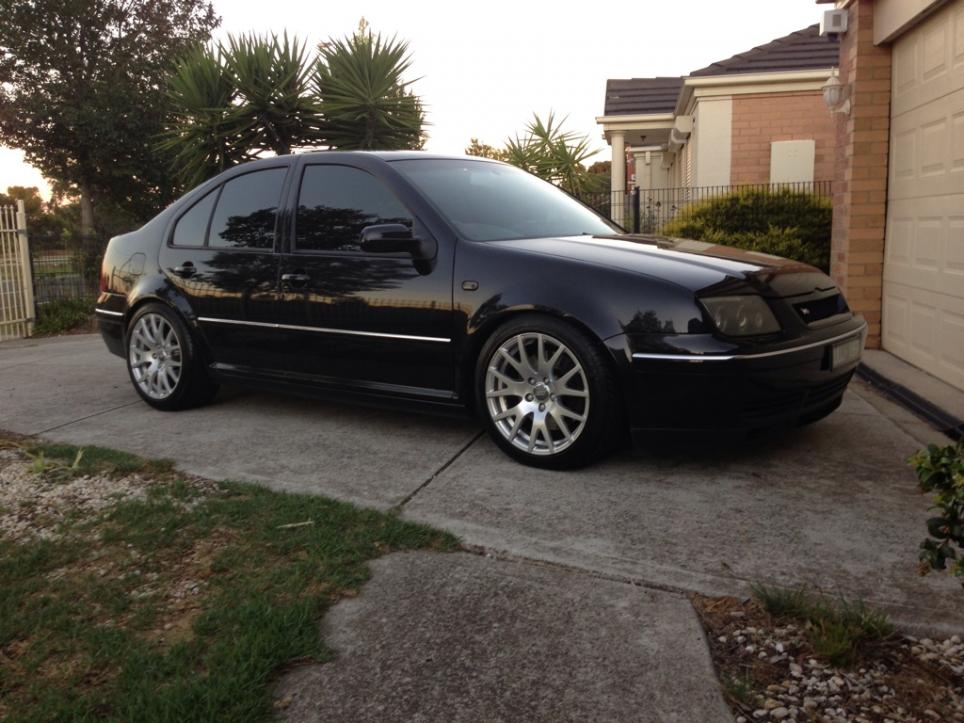

Car: VW Bora V6 4motion
Wheels: Audi TT (8J)
Front: 17x8.5 et25 (after 25mm adapter) 225/45/17
Rear: 17x8.5 et20 (after 30mm adapter) 225/45/17
Fenders Rolled: Yes
Fenders Pulled: Rears only
Camber: Natural 4motion rear camber
Suspension: KW V1 with rear perches and adjusters removed
Notes: I reckon 18" is the perfect size for Mk4s, but the extra inch of rubber on 17" is the best compromise for my daily baby-mobile. Would also love a bit of rake...






Will get better pics..

[dylan8]

sick dude.
so OEM+
Good to see you get them on quick after such a long wait!

[kapowww]

VWW Official MKIV Wheel Q&A

Thanks bro! Yeah old tyres were gone so had to replace them. I'm actually happy with how these turned out.

[perroskkivr6]

Does anyone know a link where i can find a formula to get the rigth adapter size. I see here all final offsets but how do i know what size adapter to use. I drive a mk4 vr6 jetta. Original wheels are 15x7 35mm offset and am getting some17x8 with 52 offset. I need to find out how to calculate for adapters thickness. Thanks in advance for any help.

[dylan8]

Does anyone know a link where i can find a formula to get the rigth adapter size. I see here all final offsets but how do i know what size adapter to use. I drive a mk4 vr6 jetta. Original wheels are 15x7 35mm offset and am getting some17x8 with 52 offset. I need to find out how to calculate for adapters thickness. Thanks in advance for any help.

Use the offset calculator to work out how you want the new wheels to sit (eg 8et35) then work out the wheels orginal offset (52) minus your proposed one (35), 52-35 = 17mm adapter

[perroskkivr6]

Use the offset calculator to work out how you want the new wheels to sit (eg 8et35) then work out the wheels orginal offset (52) minus your proposed one (35), 52-35 = 17mm adapter

Only one doubt. About the diference of width of wheel....original is 7 inch new ones 8 inch....do i have to add that one inch of difference to the 17mm?

[dylan8]

http://www.1010tires.com/WhelOffsetCalculator.asp

Use that, ignoring the fact u are using the adapters, adjust the new wheel offset to suit the final position you want.
Then as the post above minus the wheels desired offset from its actual specs and that will give you the adapter width.

On a stock height or slightly lowered mk4 I'd suggest a final spec of 8et30 or 8et35f and 8et25 or 30r.
So your going to want 17 or 22mm for the front, and 22 or 27mm rear.

[wisher]

Hi Guys,

I'm tossing up between two sets of wheels to suit a set of 235/40/18 tires I've been given.

1st set:
18x8 5x100 30mm offset front
18x9 5x100 30mm offset rear

2nd set:
18x8 5x100 35mm offset all round

Will be going on a Bora 4-motion, running stock suspension, I'm looking at upgrading to coilovers pretty soon.

Just wondering if either of these combos work with the tires i have?

[trickysimon]

Hi Guys,

I'm tossing up between two sets of wheels to suit a set of 235/40/18 tires I've been given.

1st set:
18x8 5x100 30mm offset front
18x9 5x100 30mm offset rear

2nd set:
18x8 5x100 35mm offset all round

Will be going on a Bora 4-motion, running stock suspension, I'm looking at upgrading to coilovers pretty soon.

Just wondering if either of these combos work with the tires i have?

Both should work, obviously depending on how low you plan on going.

[wisher]

Both should work, obviously depending on how low you plan on going.

Ok great, will the 18x8 still work if there 40et?. Im not planning on super low as its a daily driver, i was looking at a set of FK AK's or similar until i can afford something better.

[dylan8]

Ok great, will the 18x8 still work if there 40et?. Im not planning on super low as its a daily driver, i was looking at a set of FK AK's or similar until i can afford something better.

with 225/40s at stock height will be fine.
lowered might be close to the strut depending on how low. if you can stick to the 8et35 you listed earlier id be doing that

[trickysimon]

Car: Bora V6 4Motion
Front: 18x8.5 ET35 235/40/18 Bridgestone RE002
Rear: 18x9.5 ET40 265/35/18 Bridgestone RE002
Arch height to ground Front: 24.2"
Arch height to ground Rear: 24.8" (Will have to be raised. Rubs a fair bit on the inner guard.)
Fenders Rolled: Front only
Fenders Pulled: No
Camber: Front No / 1deg extra in rear

[Cam Farey]

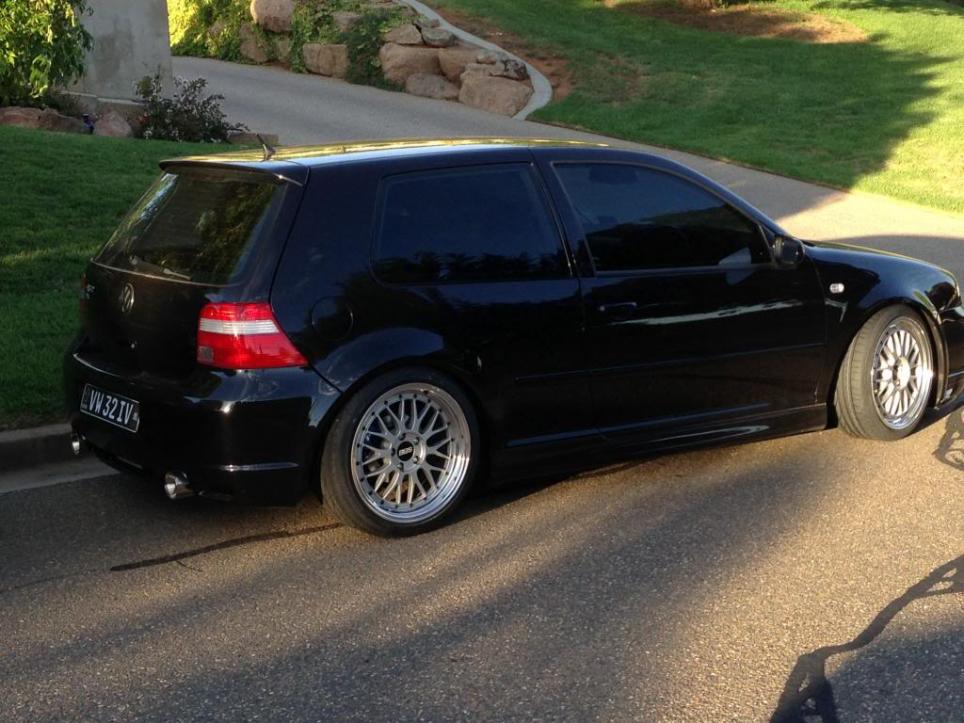

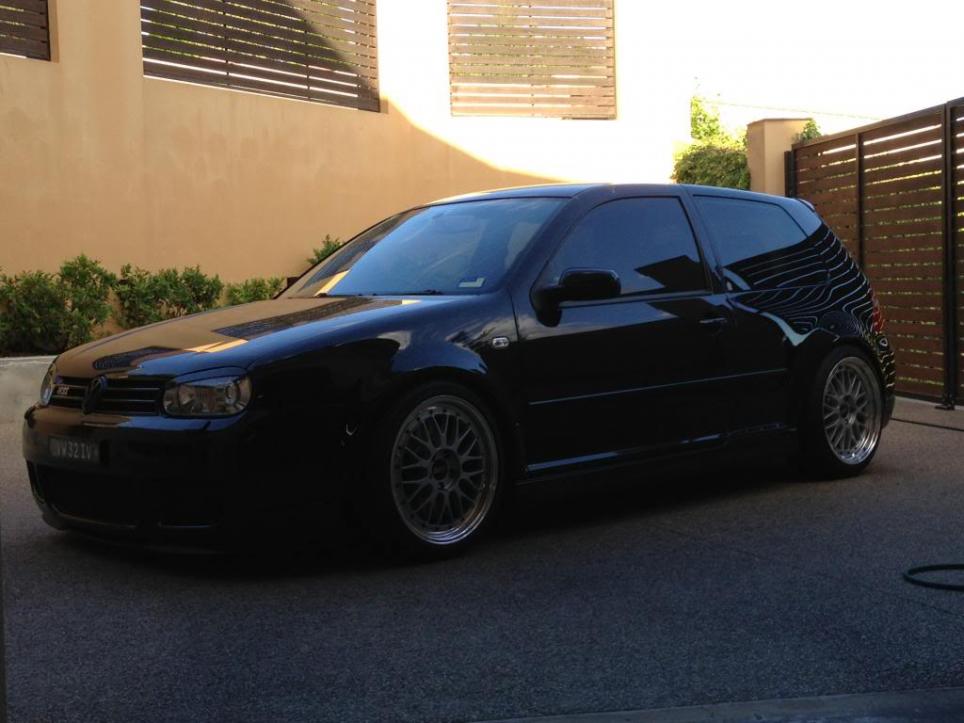

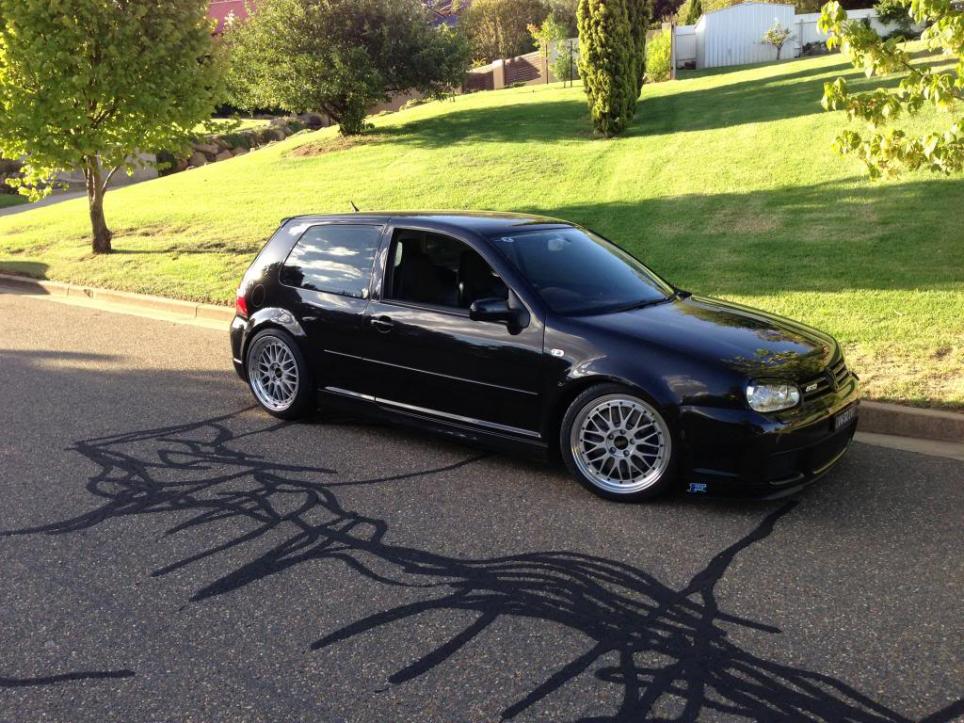

Car: Golf R32
Wheels: BBS LM's
Front: 18x8 et25 215/40/18 Bridgestone RE050A
Rear: 18x9 et25 225/40/18 Bridgestone RE002
Arch hight to ground Front: to come
Arch hight to ground Rear: to come
Fender Rolled: front only
Fender Pulled: none
Camber: none

[trickysimon]

[dylan8]

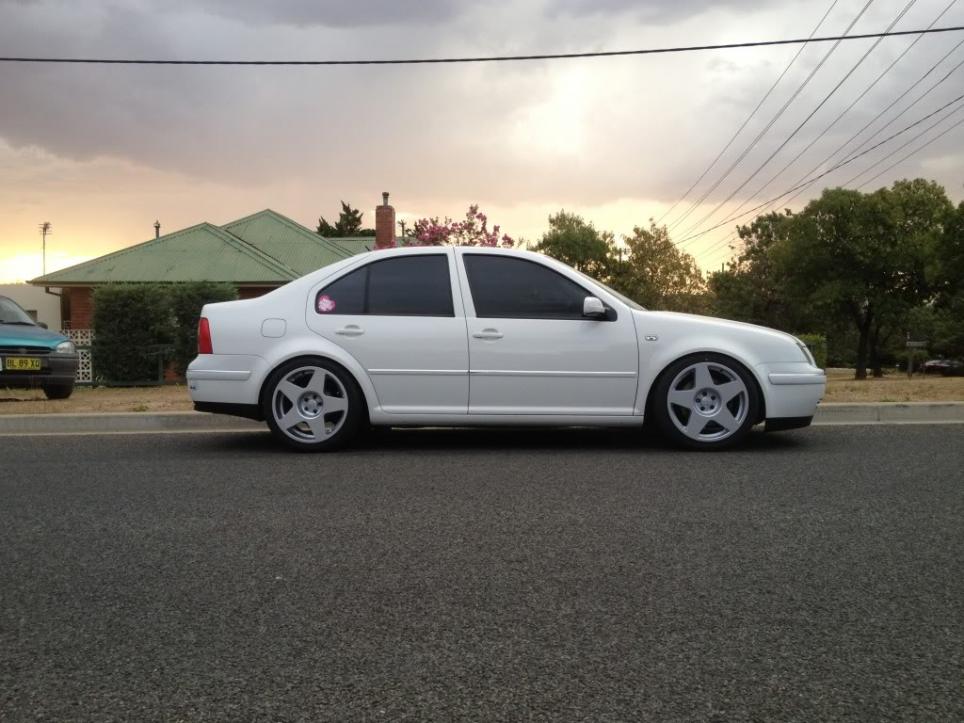

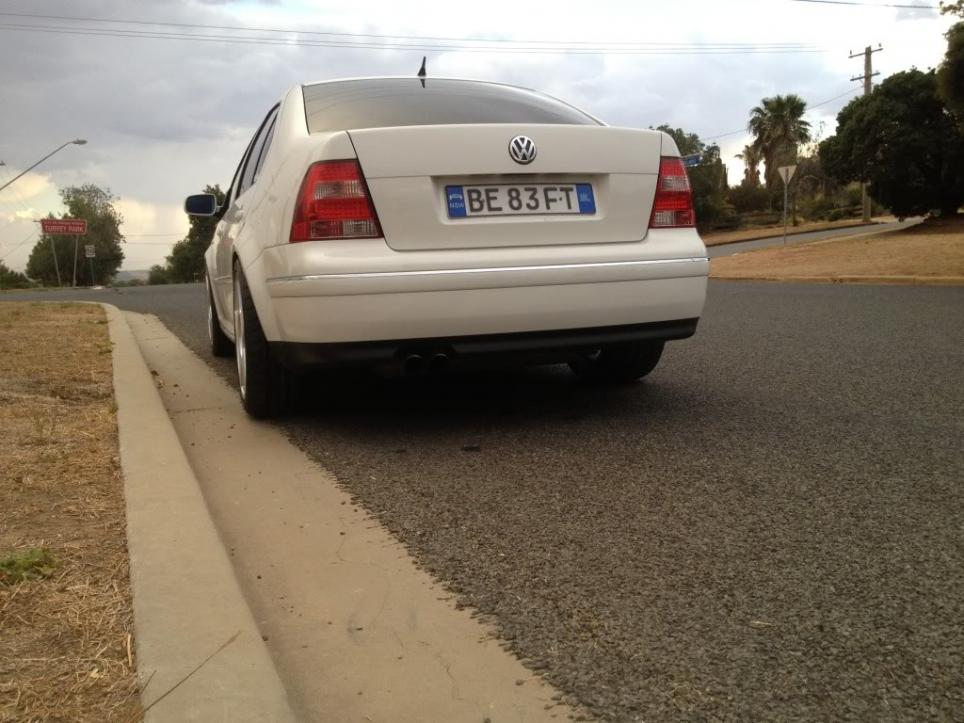

Car: Bora FWD 2lt
Front: 18x8 ET24 215/35/18 Nankang NS20
Rear: 18x9 ET31 225/35/18 Nankang NS20
Arch height to ground Front: 22"
Arch height to ground Rear: 22"
Fenders Rolled: Front only
Fenders Pulled: No
Camber: Front No / 1deg extra in rear

front is sunken a little so when the car is raised up the tread sits inside the guard still.
Currently stuck on the driveshaft on the drivers side and control arm/subframe joint on the passenger so thats why it sat so high/wonky in the front.
tyres are super undersized and would avoid on most mk4s due to load rating and speedo being way out.
ill get some better pics later.
