VWW Official MKIV Wheel Q&A

[dylan8]

Car: VW Bora 2lt FWD
Wheels: BBS RS
Front: 17x7 et20 (after 20mm adapter and 5mm spacer) 195/45/17
Rear: 17x9 et20 (after 15mm adapter) 205/45/17
Fenders Rolled: No
Fenders Pulled: No
Camber: None
Suspension: TA Technix.
Notes: My first real crack at fitment. not great, but have to start somewhere.
195/45 is WAY to small in profile for the height of the car or even a slammed mk4.

[dylan8]

Car: VW Bora 2.8 4Motion
Wheels: BBS Impuls
Front: 17x8 et32 (after 20mm spacer) 225/45/17
Rear: 17x9 et38 225/45/17
Fenders Rolled: Fronts lightly rolled
Fenders Pulled: No
Camber: None
Suspension: TA Technix.
Notes: Helper springs out of front. Rear adjusters completely out.

http://www.vwwatercooled.org.au/foru...tml#post847076

[dylan8]

Car: VW Bora 2.8 4Motion
Wheels:Audi A8s Polished face colour coded inserts
Fronts:20 x 8.5 225/30/20
Rears: 20 x 8.5 225/30/20 25mm spacers
Guards rolled Front & Rear: No
Camber:some factory camber from being low
Suspension:Bilstein Shocks & Lowered Springs

http://www.vwwatercooled.org.au/foru...tml#post848472

[dylan8]

Car: VW Golf MK4 GL (1.6L)
Wheels: Reps
Front: 18x8 et20, 215/40/R18
Rear: 18x8 et15, 215/40/R18
Fenders Rolled: Front (no need rear)
Fenders Pulled: No
Camber: None/standard
Suspension: JOM
Notes:
Front scrubs guard liners.
Rear has a little scrub on the inner guards on big bumps.

http://www.vwwatercooled.org.au/foru...tml#post848719

[dylan8]

Car: VW Golf MK4 GTI
Wheels: BBS RS
Front: 17x8.5 et33, adapters 15mm final et18, 205/40/R17
Rear: 18x9.5 et44, adapters 20mm final et24 215/45/R17
Fenders Rolled: No
Fenders Pulled: No
Camber: None/standard
Suspension: JOM perches out in rear
Notes: needs to be lowerrrrrrr

http://www.vwwatercooled.org.au/foru...tml#post850886

[dylan8]

Thought this might be interesting to post up here.
Car: VW Bora V6 4motion
Wheels: BBS Impul
Front: 17x9 et28, (after 10mm spacer), 205/45/R17
Fenders Rolled: Slightly
Fenders Pulled: No
Camber: None/standard
Suspension: Ta Technix, helper springs removed
Notes: Only the front so far. Rear will be 17x11

http://www.vwwatercooled.org.au/foru...tml#post851001

[dylan8]

Car: VW Bora V6 4motion
Wheels: O.Z Racing SuperTurismo GTs
Front: 18x8 et35 225/40/18
Rear: 18x8 et35 225/40/18
Fenders Rolled: No
Fenders Pulled: No
Camber: None/standard
Suspension: Weitec Hicon GTs



Forgive the old photo! Car is a tad lower now and has a few other mods

http://www.vwwatercooled.org.au/foru...tml#post851357

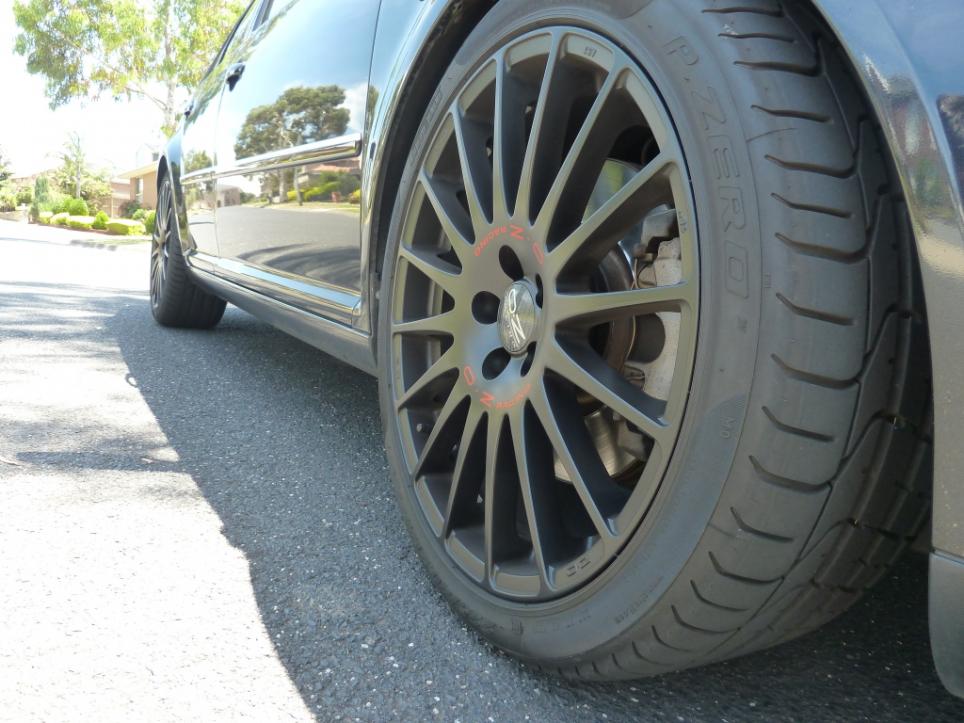

[dylan8]

OEM Bravo (Bora Sport)
Size: 17x7.5" et 35?
PCD: 5x100mm
Offset: 38mm
Weight: 10.2Kg

http://www.vwwatercooled.org.au/foru...tml#post493998

[dylan8]

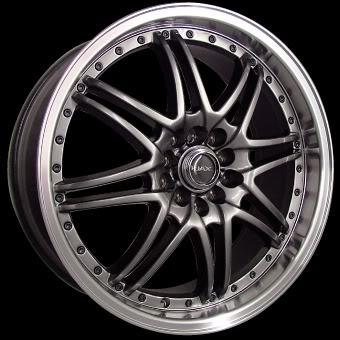

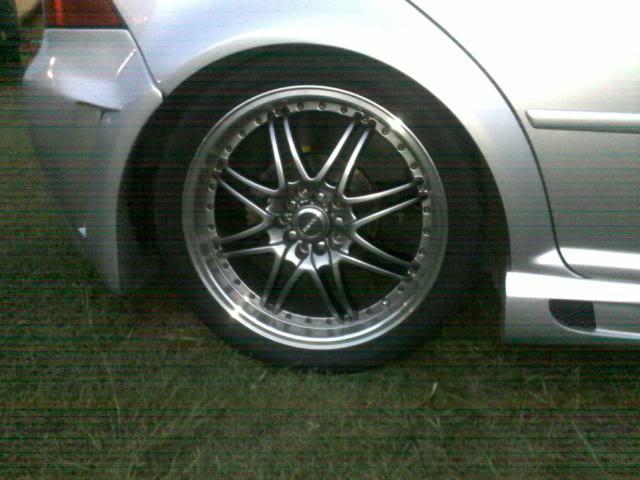

Halo Zuka
Size: 18x7.5
Offset: 45mm

will be changing wheels to a set with 30mm offset so the front can go lower

Note: If I recall front rubbed on strut due to the amount of lowing, tyre size and offset

http://www.vwwatercooled.org.au/foru...tml#post494003

[dylan8]

Car: VW Golf FWD
Wheels: BBS RC
Front: 18x8 et32 225/40/18
Rear: 18x8 et32 225/40/18
Fenders Rolled: No
Fenders Pulled: No
Camber: None/standard
Suspension:

Official Mk4 Wheel Thread

[dylan8]

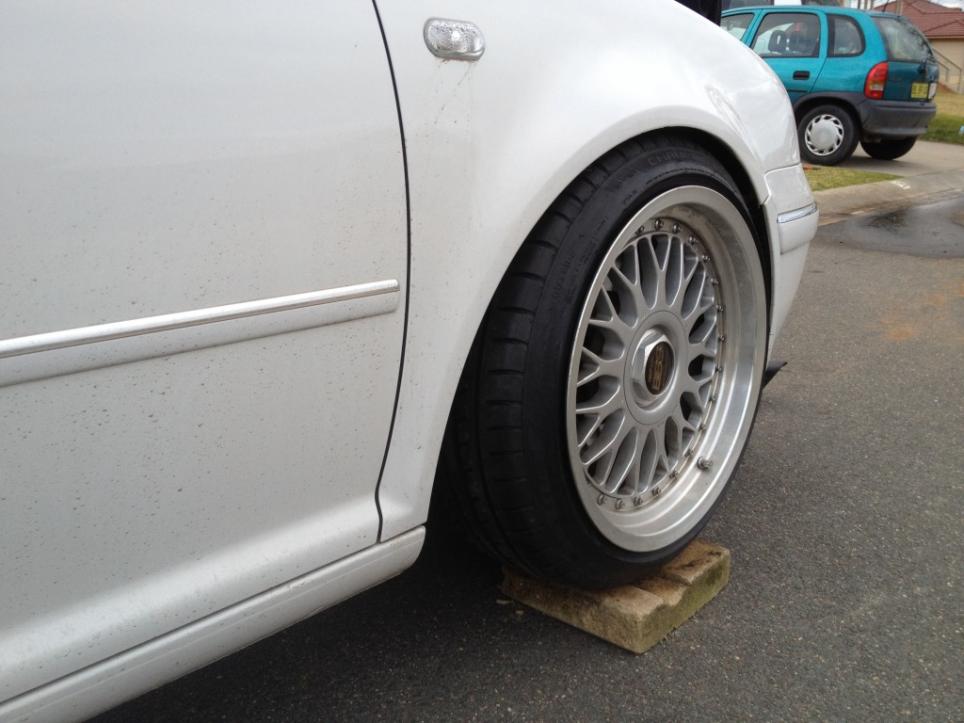

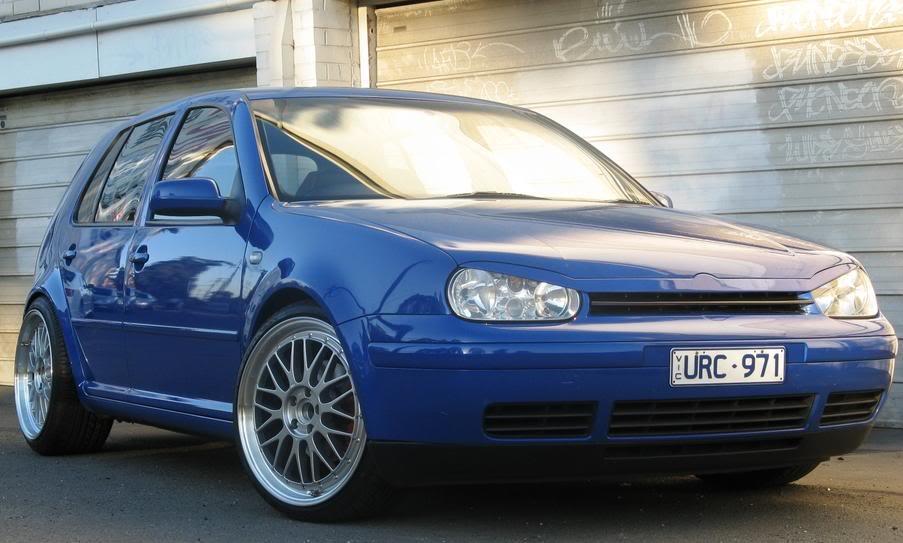

BBS LM's
Front: 19x8.5
Rear 19x10

At a guess as I purchased these wheels after:
I believe still the 215/35 and 245/35 in this picture.
8.5et55+25 adapter, 10et52+20 adapter

http://www.vwwatercooled.org.au/foru...tml#post494911

[dylan8]

Raderwerks 18x8 front
18x9 rear

http://www.vwwatercooled.org.au/foru...tml#post497302

[dylan8]

Hmmm... just realised I don't have any pics of the car since lowering it nearly 2 years ago!
Better get some more...

BBS CH 18x8.5

Note: if genuine BBS CH I think et35?

http://www.vwwatercooled.org.au/foru...tml#post497477

[dylan8]

DPE 19x8 on front, 19x10 on rear.

Note: 265 wide rubber on the rear, either 225 or 235 front.

http://www.vwwatercooled.org.au/foru...tml#post497505

[dylan8]

17x7.5" tt wheels

et32

http://www.vwwatercooled.org.au/foru...tml#post497505
