Anyone know how to remove the air inletmanifold on the AXZ engines (V6/VR6 FSI)

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Anyone know how to remove the air inletmanifold on the AXZ engines (V6/VR6 FSI)

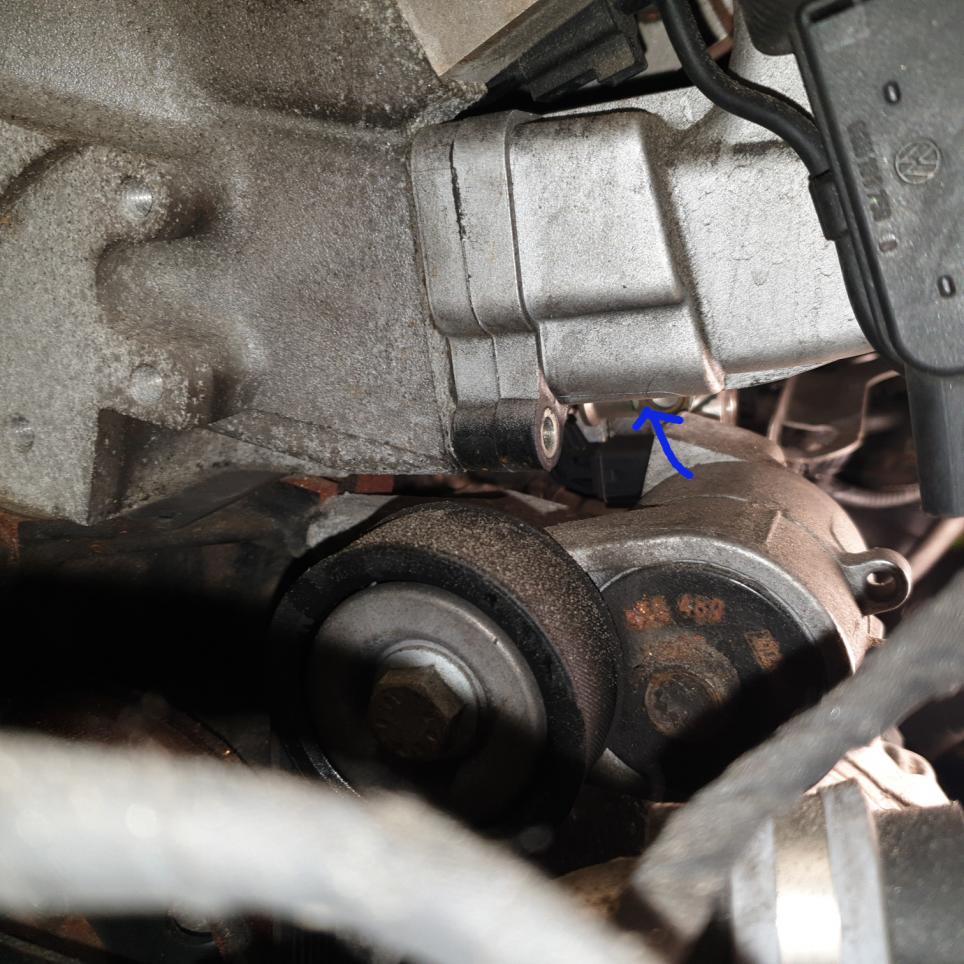

    Was wondering if anyone had any tips on how to get off the air manifold on the AXZ engines (one piece manifold not like the later R36 manifolds) - seem to be some kind of metal pipe running in front of the manifold securing it in place, I think I'v gotten loose all the bolts, but still seem stuck - thinking this metal pipe is the thing hindering it from coming loose, but can't really see how this thing is supposed to be loosened.....





  • #2
    Remove the front end


    Sent from my iPhone using Tapatalk

    Comment


    • #3
      I have only done it on the BWS engine, but if there are similarities, it will be the lower fuel rail feeding the short-runner injectors; if you have removed the bolts, try wiggling it to help release the o-rings.
      MY12 Passat FSI Highline | 3.6L VR6 | Cashmere Brown | Driver Assistance Package | Dynaudio | Discover Media | TPMS Direct | Side Assist | Adaptive Cruise | 3D colour cluster | More coming soon
      Genuine VCDS HEX-NET and VCP Pro

      Comment


      • #4
        Originally posted by MIG View Post
        I have only done it on the BWS engine, but if there are similarities, it will be the lower fuel rail feeding the short-runner injectors; if you have removed the bolts, try wiggling it to help release the o-rings.
        Should it come straight upwards? (Does the fuel and/or injector have to come out, or should you be able to get it loose without ? (I think the R36 engine have a 2 piece inlet ? )

        I'v partly removed front to make room, but still haven't been able to fully see how this things is attached...

        Comment


        • #5
          Originally posted by Mawrick View Post
          Should it come straight upwards? (Does the fuel and/or injector have to come out, or should you be able to get it loose without ? (I think the R36 engine have a 2 piece inlet ? )

          I'v partly removed front to make room, but still haven't been able to fully see how this things is attached...
          Directly forward to the front of the car.; if you are lucky, the o-rings will release, and the injectors stay in the block; I had them pull out when I did my walnut blasting so they needed to be resealed.

          Yes the BWS (R36) has the two-part manifold that makes it easier, but I have seen someone fit the one-piece on these, so the block mounting and injectors must be in the same place.

          Check out the picture here; that's the service position; the front carrier moves forward on some M10 x 120mm bolts, to give more room up front.
          MY12 Passat FSI Highline | 3.6L VR6 | Cashmere Brown | Driver Assistance Package | Dynaudio | Discover Media | TPMS Direct | Side Assist | Adaptive Cruise | 3D colour cluster | More coming soon
          Genuine VCDS HEX-NET and VCP Pro

          Comment


          • #6
            Originally posted by MIG View Post
            Directly forward to the front of the car.; if you are lucky, the o-rings will release, and the injectors stay in the block; I had them pull out when I did my walnut blasting so they needed to be resealed.

            Yes the BWS (R36) has the two-part manifold that makes it easier, but I have seen someone fit the one-piece on these, so the block mounting and injectors must be in the same place.

            Check out the picture here; that's the service position; the front carrier moves forward on some M10 x 120mm bolts, to give more room up front.
            https://www.vwwatercooled.com/forums...ml#post1343482




            Ok, so in theory the inlet manifold can come out without removing the fuel rail/injectors ? (but they might "follow" when one pull ? ) what does these o-rings attach to ? (is it holding the manifold to the injectors or ?

            Comment


            • #7
              Originally posted by Mawrick View Post
              Ok, so in theory the inlet manifold can come out without removing the fuel rail/injectors ? (but they might "follow" when one pull ? ) what does these o-rings attach to ? (is it holding the manifold to the injectors or ?
              As MIG says fuel rail comes out towards the front and I think in order for it to come out the manifold should come out first. I've had this done for my PCV valve membrane replacement (on AXZ engine) though the job was done by a mechanic. It seemed he had to disassemble half of the front end of the car to do the job. A word of warning from my own experience - when you're putting back the fuel rail make sure you don't pinch any of the o-rings otherwise you'll need to de-mount the manifold and the rest to replace the (fuel leaking) o-ring/s. Edit - on second thought you MAY need to loosen the fuel rail first to jiggle the manifold out. To be honest I can't quite recall the sequence.
              Last edited by Old Navman; 02-02-2024, 09:59 AM.
              2006 VW Passat Sedan 3.2lt AXZ, FSI 4motion, another milestone - 398K ... and still going

              Comment


              • #8
                Was out working on the car again, after some fiddling, and a bit more view after completely removing the front (only leaving the radiators/fans) I was able to remove the manifold, but turned out the fuel rail in fact have to come out first/with it, and it obviously had to drag out 2 of the injectors at the same time - guess I'l be refurbishing those at the same time.........what a stu*** design this is

                Just thought I'd reply for "record" for later


                btw, anyone have experience with the bran "IWIS" when it comes to the chains ? (seem to be a OEM supplier and is the chains that comes in a kit from Febi).
