Gavin's cheapy but getting more expensive GTI ;)

[h100vw]

Automobile Multimeter Gauge FOR EGT Boost Green LED | eBay

So after I drilled and tapped the manifold, I thought I had better buy the gauge as well. I got this one in blue. should be here this week.

Still waiting on the turbo, was supposed to be last Thursday....

[h100vw]

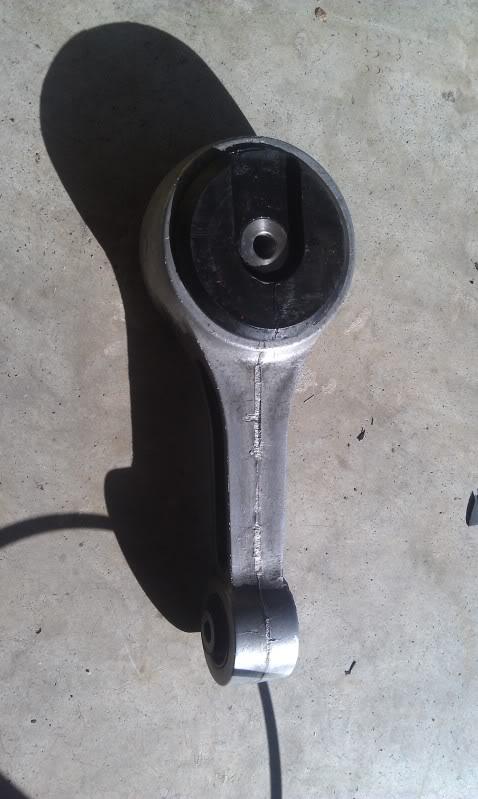

Another lazy day, a few little jobs on a big turbo S3. Then I spied the Polo dogbone.

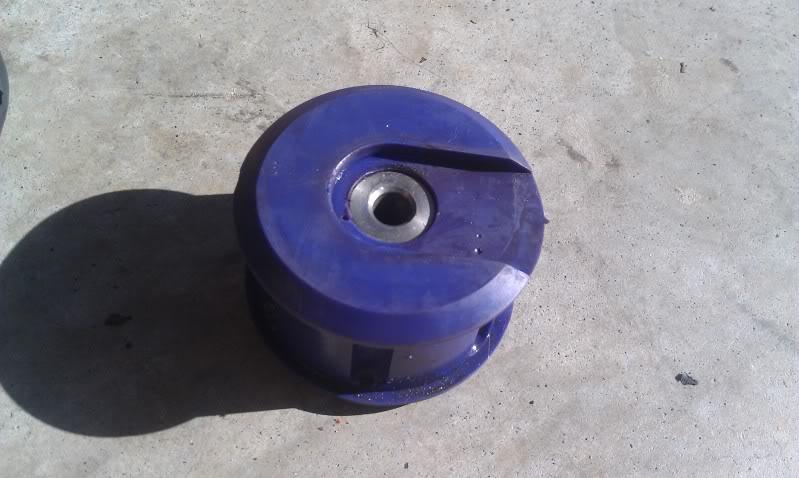

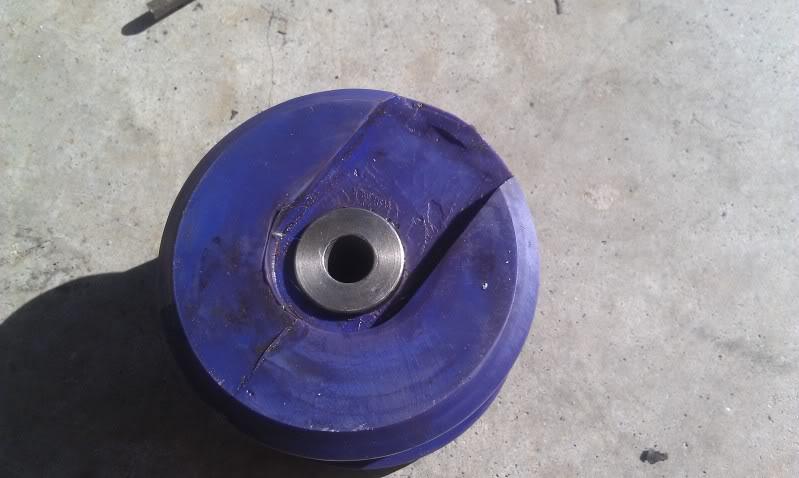

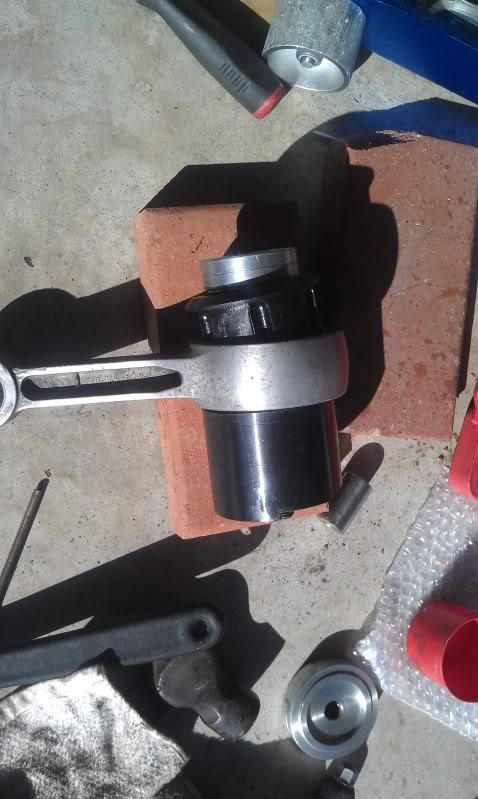

I extracted the Track density bush from it using the LCA bush tool. Then pulled in the RACE bush.





Anyone that has cement in their tea going to give me $30 shipped for the bush that I took out? I don't think the vibes are that bad TBH. It is possible to tweak the idle speed up if needed, to quieten things a bit.

[quattro5v]

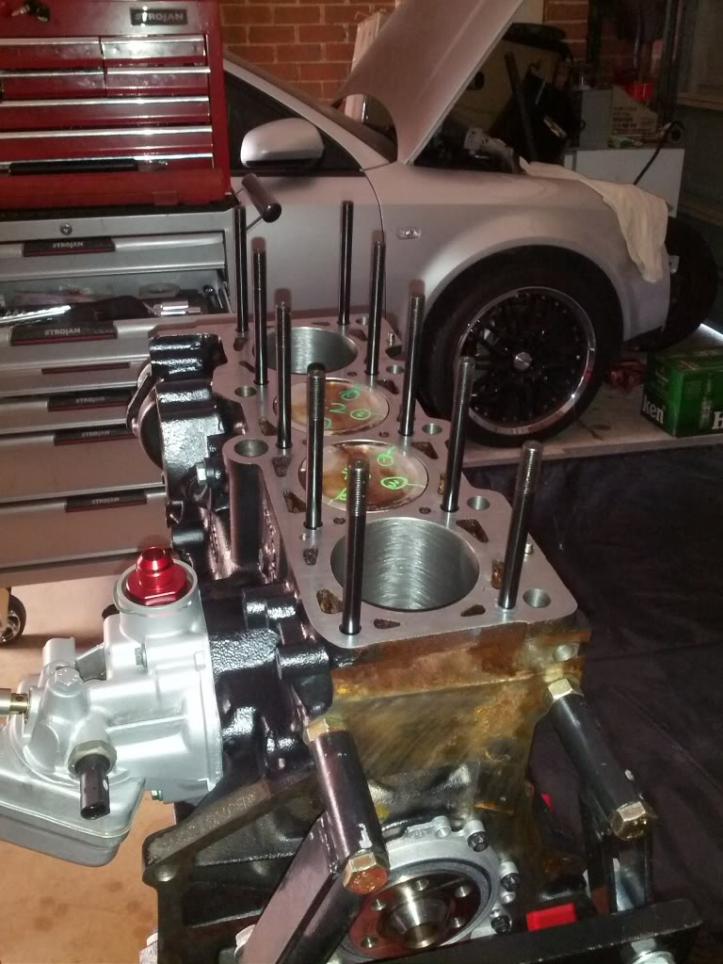

Any movement Gav? The bottom end all done on mine. Time to start building the head...

By the way - I hacked up the wrong oil pickup! The longitudinal is shorter by 1/2 of the transverse mounted motors... So in all essence no real need to hack away at it but I did square off the mouth just a little (no pics unfortunately). Sump all prepped and now just waiting for everything to settle before I button it all up.

[h100vw]

Any movement Gav? The bottom end all done on mine. Time to start building the head...

By the way - I hacked up the wrong oil pickup! The longitudinal is shorter by 1/2 of the transverse mounted motors... So in all essence no real need to hack away at it but I did square off the mouth just a little (no pics unfortunately). Sump all prepped and now just waiting for everything to settle before I button it all up.

No mate, luckily being from the UK I am good at waiting

[h100vw]

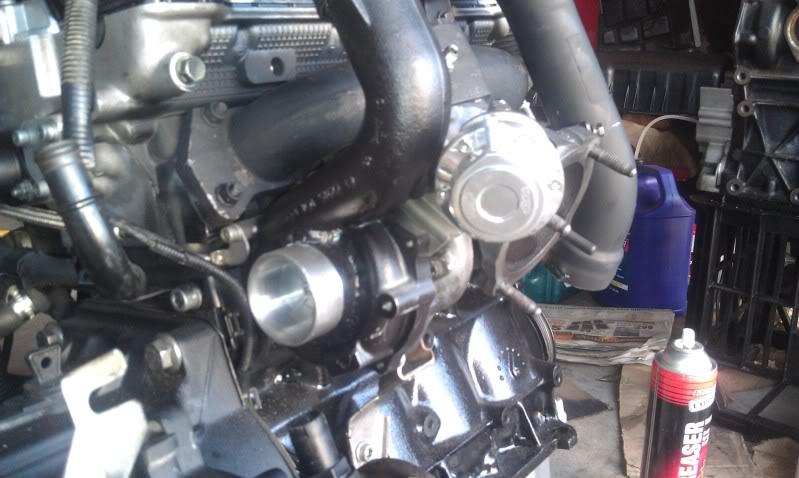

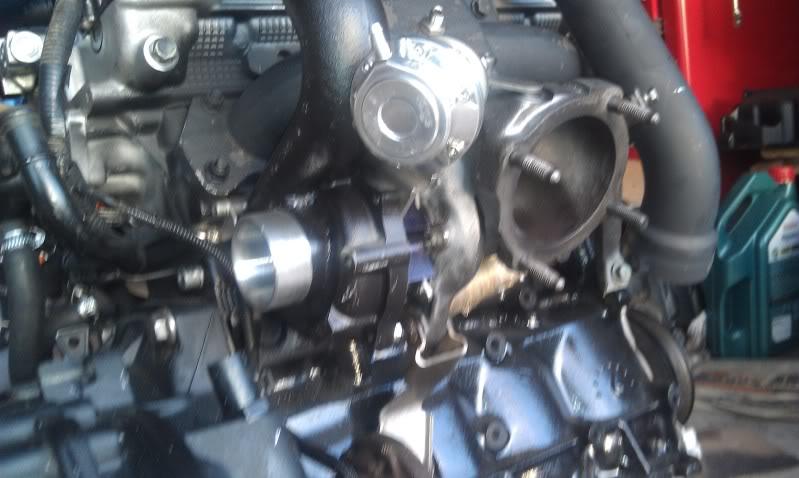

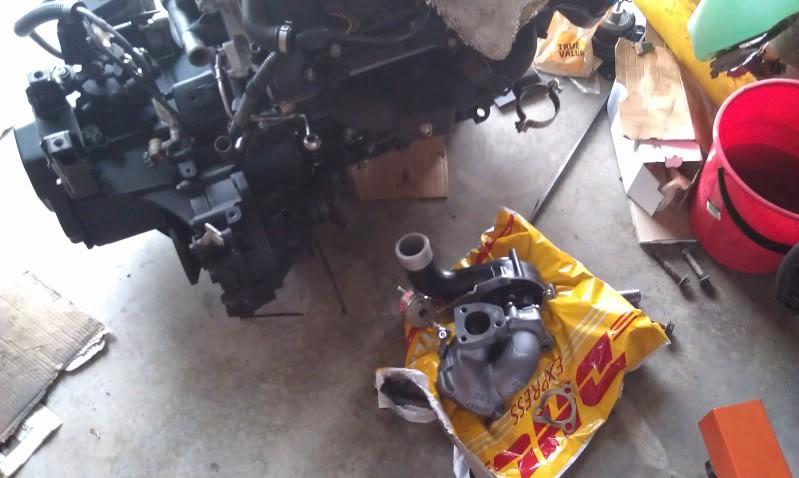

Ready to go on

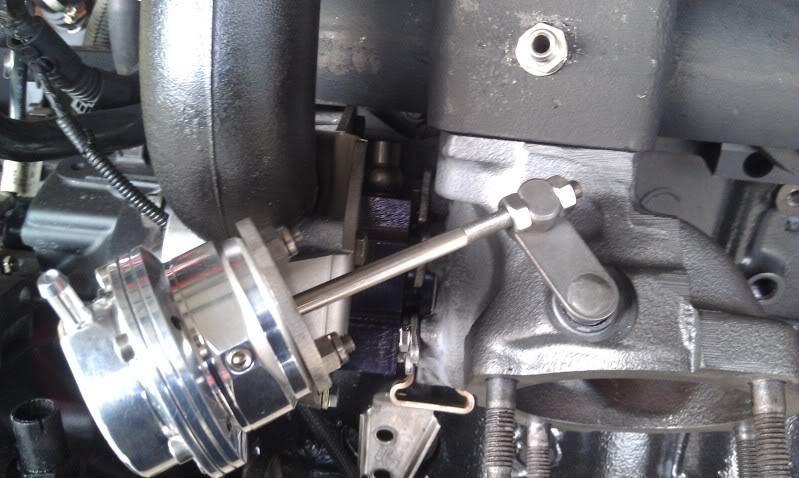

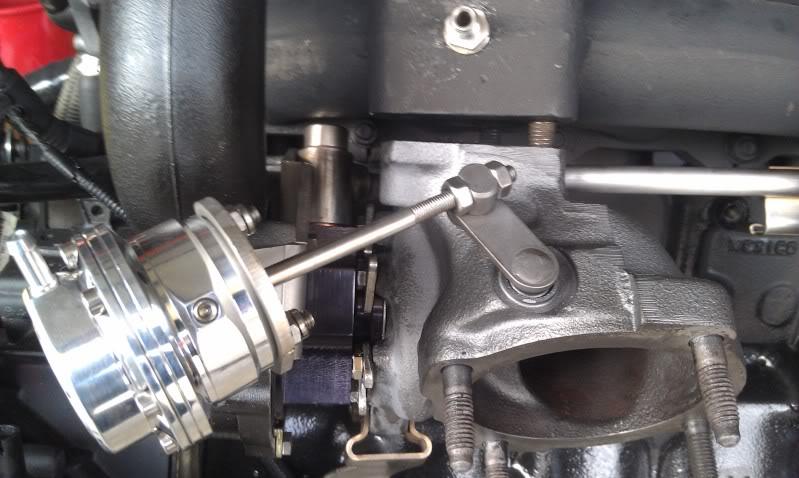

A bit of work needed to get the clocking of the 3 parts right to clear the #4 runner with the water feed banjo bolt.



Took a handful of trial fits to get it right. Production versions (eventually) will be test fitted on a spare motor.

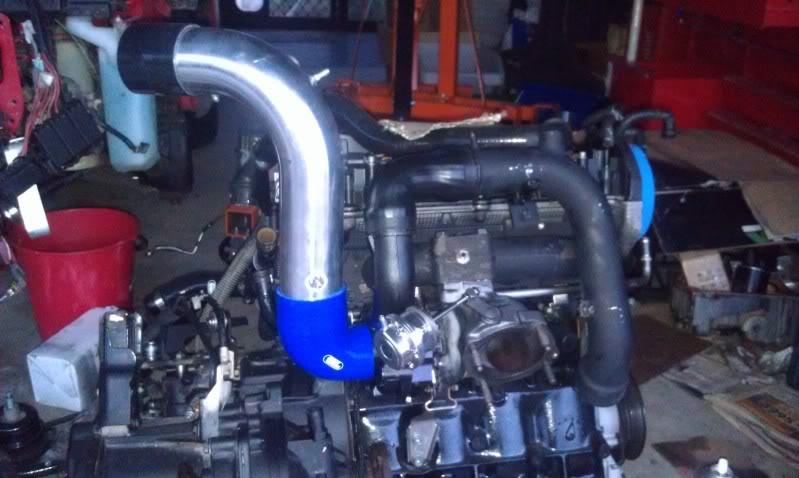

Big TIP trialed lots of room by the water pipe.

[quattro5v]

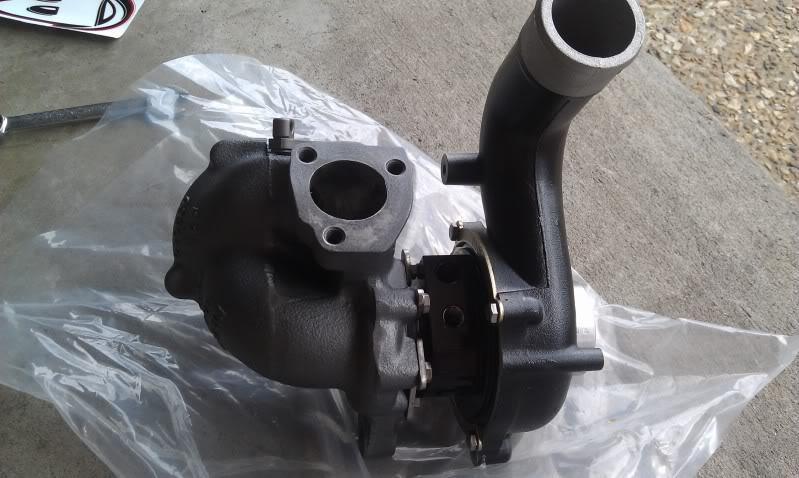

That's a massive exhaust section casting!

[h100vw]

That's a massive exhaust section casting!

It is huge compared to the 2 inch bit at the exit to the hot wheel.

[kendog]

Looking gooood! ... Excitement building again..

[Lito]

Can't wait til it's back in!!!!

[guile]

looks the business, now stop messing around and get it running....

ps my intercooler turned up yesterday and i'm back early for training on monday. latest plan is to fit the intercooler next weekend and then it will be ready for the tune from monday onwards. i will call next week to suss out your availability, cheers

[guile]

Big TIP trialed lots of room by the water pipe.

looks like she'll be able to get a fair bit of air in to the lungs with that set up. what filter arrangement are you going for?

[h100vw]

looks like she'll be able to get a fair bit of air in to the lungs with that set up. what filter arrangement are you going for?

Got a BMC CDA which I was running before but thinking I might have to rethink it..... Could do like Anthony and run it with one end open and my snaky pipe to the front grille.

[kendog]

Let me know if you don't use it..

[h100vw]

Let me know if you don't use it..

Wildo. I'll def try it though. I think I can either unscrew or drill rivets out to take the end off. It has 2.75 on one end and 3 inch on the other. Obviously, that goes straight into the MAF so in theory, you'd want at least the same size on the other end.

Gavin

[kendog]

Yeah, see how you go with it first! GL
