  • #46
    And here's an AFR graph in 2nd gear:
    (made with the afr example from ross-tech page - Ross-Tech: VAG-COM: Diagnostic Procedures)



    And a graph with air mass / inj period / load made with the same values used in the afr graph:




    How does this look ?
    Last edited by RoSonic; 19-04-2010, 06:50 AM.

    Comment


    • #47
      Did a log again in 2nd gear all it gives me is this

      Shouldnt it give me more info, it should be recording

      Can anyone show me what the data should look like after taking a boost log of a certain gear


      Address 01: Engine (06A 906 032 TL)

      09:48:32 Group 115
      760 /min RPM
      18.8 % Load
      1010.0 mbar Absolute Pres.
      1010.0 mbar Absolute Pres.
      MODS- TOO MANY

      Comment


      • #48
        your data should be in the form of a .csv file.
        That looks like just a snapshot at idle

        PERFORMANCE, STYLING AND OEM PRODUCTS FOR YOUR VW

        FOLLOW US ON FACEBOOK

        Comment


        • #49
          does not seem like you are logging, just looking at data...

          You should be exporting a file (.csv).

          You need to go into Meas. Blocks, select your blocks so you can see the data live, select log, it will open up a little window for the file location, give it a file name (pref on the desktop), select Start. Do your runs, then select Stop. This is based on the 409 Software, but should be pretty similar.

          What you get is a spreadsheet with lines of data which are time seperated, then you can make a chart with this info.

          Comment


          • #50
            Thanks guys found some logs in some of the files

            Info looks messy, not consistant

            Trying to work out how to graph it as I havent used excel before

            Data looks all over the place as i did it is 2nd gear

            Might need to get a good log in 3rd
            MODS- TOO MANY

            Comment


            • #51
              yah get a nice log in third gear from low rpm to as high as you dare take it.

              PERFORMANCE, STYLING AND OEM PRODUCTS FOR YOUR VW

              FOLLOW US ON FACEBOOK

              Comment


              • #52
                Thanks Rosonic. Don't know what I am looking at with some of that data.

                The airmas looks about right, I hit about 165 or something at peak.

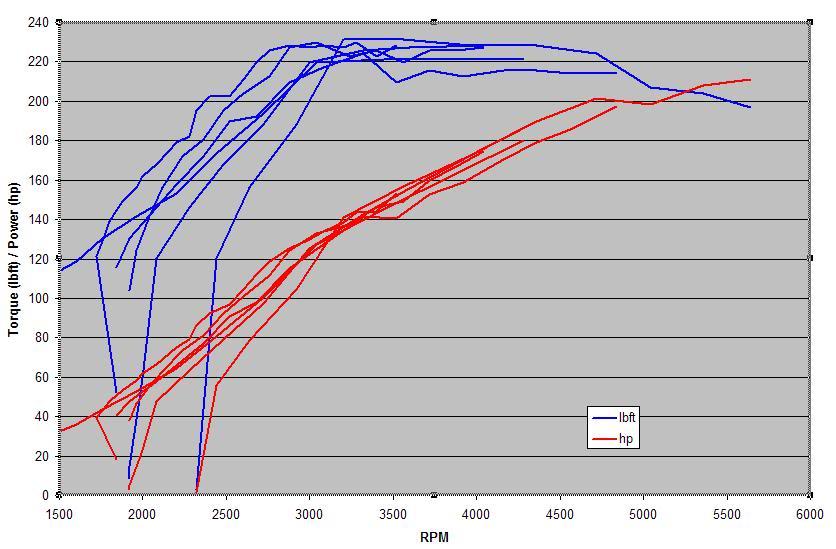

                I'm looking at Logging block 120 now. This gives estimated Torque, but I don't know if this will alter from tune to tune...

                From this you are apparently supposed to be able to work out the HP as well, but like a dyno, I think you should use it for a reference rather than bible.

                Measurements would correlate to flywheel numbers.

                Lots of runs in various gears overlayed. Although the data is messy, if I can get some feedback as to the accuracy (+/- 20%) then this is quote a helpful tool if we can get a few people posting results.



                Ross-Tech have a spreadsheet already made up for this: Ross-Tech: VAG-COM: Diagnostic Procedures have a look at the Block 120 logging attachment.

                Comment


                • #53
                  Thanks Rosonic. Don't know what I am looking at with some of that data.
                  The yellow line is injection time - in mili seconds (right y-axis), brown line is engine load - in % (left y-axis).

                  The airmas looks about right, I hit about 165 or something at peak.
                  So if this statement is correct:
                  Group 002 usually shows air mass in g/s. Your peak airflow should be roughly 0.80 times your horsepower. So, if you have a stock 150 hp 1.8T, expect around 120 g/s
                  you should have about 206.5hp at 165g/s

                  Comment


                  • #54
                    Tried to mark the boost vs air flow - on the compressor efficiency map:



                    I've put dots for 2600,3000,3500,4000,4500,5000,5500,6000 rpm on the chart taken from BorgWarner.

                    don't shoot me if I did it wrong - - I'm new at this.

                    Comment


                    • #55
                      Woah, if that is correct, hats off to you for producing some real world data that can really be understood as to the efficiency of the turbo relative to your / our car.

                      Very cool.

                      As for the air flow, these guides are just guides, I would think they would be roughly + / - 20% of actual values as the power can be gained in other ways, but it does indicate that the car / tune is doing what it should.

                      Comment


                      • #56
                        Here's my logging of block 120:



                        Don't know how precise this is, but on the stock car it gave almost the same results like on the dyno.

                        Comment


                        • #57
                          Wow didnt know you could do that

                          Might have to try to log CH120 tomorrow night
                          MODS- TOO MANY

                          Comment


                          • #58
                            Here's a EGT graph - from block 034 (cat temperature)
                            it's a run in 4th gear then shifted to 5th and accelerated until 6000rpm.



                            Any opinions on this ? Is the temperature too high ?

                            Comment


                            • #59
                              Sorry mate, could not say.

                              From what I've read, 850 is the upper limit for the Cat efficiency temp range. My understanding is if you go higher, you'll throw a code.
                              I think if you were looking to cook something, the ECU would try to compensate for it by pulling timing, changing AFR's or adjusting boost, etc.

                              Originally posted by RoSonic View Post
                              So if this statement is correct:
                              Group 002 usually shows air mass in g/s. Your peak airflow should be roughly 0.80 times your horsepower. So, if you have a stock 150 hp 1.8T, expect around 120 g/s
                              you should have about 206.5hp at 165g/s
                              Something like that. There are different ways to get power and advancing timing can add power without changing the airflow.
                              Its just a guide that the car is operating as expected, more of a guide than a definative answer.
                              Last edited by noone; 29-04-2010, 10:54 AM.

                              Comment


                              • #60
                                REVO Stage 2 - data logging is done, but is it not possible attach any files here?
                                I have a 110k excel file.
                                06 Polo GTI - REVO Stage 2 = 140kw @ wheels.
                                06 Golf GTI - Bluefin Stage 1 blacked out with ED30 theme, leather, xenon, etc.

                                Comment
