2016 Alltrack has its front LH door and RH door mixed up

[Mmmm1987]

Hi everybody!

I have a problem with the electronics inside my 2016 Golf Alltrack. I shall provide some background.

Off the top of my head, the problems I noticed included:
- Activating right indicator lights up LHS mirror indicator, RHS mirror indicator remained dark. Had to cover LHS with black tape to prevent any more close calls at round-a-bouts,
- Activating window lock at the master switch caused a child lock fault,
- Master window control driver door window switch worked for drivers door, front passenger dead, rear left activated both rear windows simultaneously, rear right dead. Windows go down and back up,
- Opening the driver window causes a "key not found" error to intermittently pop up (ranging from 1 second to 10 seconds). Opening the rear windows even a crack stopped this,
- Driver door latch would intermittently pop up saying door open when it was closed (happened 2/3 short trips on and off, on and off),
- Start/Stop function at lights would fail on start up and I would have to put the vehicle in P then restart the car and it would have an a range of electronic errors which would go away after turning the car off again,
- No electronics were available on the front passenger door,
- Front cabin lights flickered as if there was a loose neutral,
- Activating auto-hold function popped up with an error,
- Reverse camera intermittently decided to not pop up on the screen,
- Reversing with the mirror switch set to L no longer dips upon entering R.

I had the vehicle diagnosed by VW and they concluded that I would need a new door control module to fix various issues.

Due to having trust issues with dealerships from past experiences, I ordered the genuine part through the dealership and installed it myself.

All errors and alarms have gone away. But I'm missing a few functionalities/mix ups as follows:
- Opening the driver door shows up on the dash that the front passenger door is open.
- Opening the front passenger door shows that the driver door is open.
- The driver door master window switch for the passenger window opens the driver door window and the other three window switches are inactive. But the both switches on the rear doors operate correctly.
- No mirror indicators function,
- Mirror reverse dip doesn't work,
- Mirror heaters don't seem to be working (I tried to check using the consumption monitor on the head unit).

My question now is what should my next step be. Is there a way to swap the driver side configuration and play around with the window/mirror functions? I have ordered an OBD2 cable online and have been conflicted on which bluetooth dongle to buy or even if that will help as the you-beaut ross-tech wireless is $500 odd/USB cable 3 VIN licence is $199, the OBD11 is $150 odd seems to be more for the fun stuff but then there are the cheaper $30 options or even the $70 Jaycar OBD2 dongle.

Thanks in advance for your time.

[Guest001]

Hi everybody!

I have a problem with the electronics inside my 2016 Golf Alltrack. I shall provide some background.

Off the top of my head, the problems I noticed included:
- Activating right indicator lights up LHS mirror indicator, RHS mirror indicator remained dark. Had to cover LHS with black tape to prevent any more close calls at round-a-bouts,
- Activating window lock at the master switch caused a child lock fault,
- Master window control driver door window switch worked for drivers door, front passenger dead, rear left activated both rear windows simultaneously, rear right dead. Windows go down and back up,
- Opening the driver window causes a "key not found" error to intermittently pop up (ranging from 1 second to 10 seconds). Opening the rear windows even a crack stopped this,
- Driver door latch would intermittently pop up saying door open when it was closed (happened 2/3 short trips on and off, on and off),
- Start/Stop function at lights would fail on start up and I would have to put the vehicle in P then restart the car and it would have an a range of electronic errors which would go away after turning the car off again,
- No electronics were available on the front passenger door,
- Front cabin lights flickered as if there was a loose neutral,
- Activating auto-hold function popped up with an error,
- Reverse camera intermittently decided to not pop up on the screen,
- Reversing with the mirror switch set to L no longer dips upon entering R.

I had the vehicle diagnosed by VW and they concluded that I would need a new door control module to fix various issues.

Due to having trust issues with dealerships from past experiences, I ordered the genuine part through the dealership and installed it myself.

All errors and alarms have gone away. But I'm missing a few functionalities/mix ups as follows:
- Opening the driver door shows up on the dash that the front passenger door is open.
- Opening the front passenger door shows that the driver door is open.
- The driver door master window switch for the passenger window opens the driver door window and the other three window switches are inactive. But the both switches on the rear doors operate correctly.
- No mirror indicators function,
- Mirror reverse dip doesn't work,
- Mirror heaters don't seem to be working (I tried to check using the consumption monitor on the head unit).

My question now is what should my next step be. Is there a way to swap the driver side configuration and play around with the window/mirror functions? I have ordered an OBD2 cable online and have been conflicted on which bluetooth dongle to buy or even if that will help as the you-beaut ross-tech wireless is $500 odd/USB cable 3 VIN licence is $199, the OBD11 is $150 odd seems to be more for the fun stuff but then there are the cheaper $30 options or even the $70 Jaycar OBD2 dongle.

Thanks in advance for your time.

I wonder maybe if module is for a LHD car if left door is drivers. An OBD ELEVEN is the next best after VCDS and FAR FAR better than the others you mention and it is NOT just for fun things and the $30 and $70 are about as useful as t+++on a bull in comparison

[Mmmm1987]

I wonder maybe if module is for a LHD car if left door is drivers. An OBD ELEVEN is the next best after VCDS and FAR FAR better than the others you mention and it is NOT just for fun things and the $30 and $70 are about as useful as t+++on a bull in comparison

A possibility but I hope it is not the left. I specifically asked for a genuine driver door module at dealership #2 and they had it in stock by 8am the next day in Sydney (the other VW dealership said it was a 6 week wait for that part). It is manufactured in Romania though.

Thanks for that. I guess that I'll be ordering from Ross-Tech. Found out that the driver side module is a J386 control unit so in the meantime I shall flick through the J386 wiring diagrams and see what goes where in there.

[DV52]

@Mmmm1987: Hmm........ intriguing problems - do you have access to a diagnostic device (like VCDS, or OBDeleven)? If so, a scan would be very, very useful!!

Apropose of your concern regarding incorrect door modules, I invite that you consider the following 2 x fundamental points:

1. ALL MQB platform vehicles have a graphic on the housings of their door modules that indicate their designed positions on the car.
2. The other important "variable" about door modules is what side of the vehicle the steering wheel is installed because this determines what dataset is used in the module's firmware.
   Even if the modules are installed on the correct car-side, using RH-drive door modules on LH-drive cars does cause problems with UP/DOWN/LEFT/RIGHT mirror switch adjustments. From your description, I don't think this is your problem - but it's something to bear in mind.

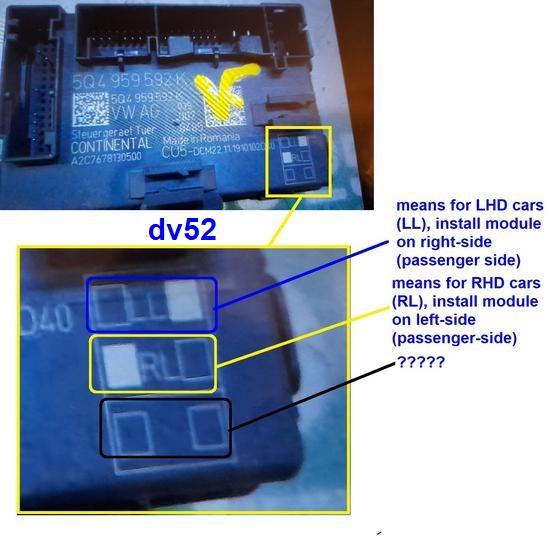

Here's a picture showing the nomenclature that VAG uses on their door modules (and my comments):

The module shown is for the passenger side - notice that the left-side square is colored white for our RH-drive cars (see RL -second set of boxes which I've enclosed by the yellow highlights on my picture). Incidentally, I suspect the boxes marked ??? are used for what VAG call "special vehicles" - I wasn't sure of this when I made the picture.

Of course the equivalent driver side module will have the opposite (right-side) box colored white on our cars (i.e. on the RL boxes)

So - if you have the inclination, I suggest that you actually eyeball how the boxes are colored on the door modules on your car to confirm the correct modules are fitted.

In my experience, it's highly unlikely that the wrong modules are fitted - but yours is a most peculiar problem IMO. If you haven't had the car from new - maybe the original owner made some "innovative" fitments?

Don

[Mmmm1987]

One step forward, two steps back.

So it turns out that the simple oversight of not checking those coloured configuration squares was an issue so thank you guys for that! Mind you, this was after I sat down and checked every core inside each multiple pin plug the previous day.

The dealership ended up being quite reasonable and doing a reorder and swap after I corrected them on the part and they realised they had provided the incorrect part.

After installing the correct module to the driver door, I now have the following issues:

- Passenger door open lights up the driver door open on the dash.
- Opening the driver door causes a "Key not found" alert and I haven't been able to see which door is displayed as open yet.
- The passenger window switch doesn't do anything.
- Indicating right lights up the left mirror indicator but definitely lights up the right indicator everywhere else including the dash.
- The mirror adjustment toggle set to Left controls the driver side mirror in a 'mirrored' X and Y configuration.
- The mirror adjustment set to the Right doesn't seem to work.
- At the master window control switch, the front passenger switch controls the driver side, driver side does nothing, the rear left controls both windows again and the rear right switch doesn't do anything.

But! Now the mirror heaters work (confirmed by touch and in the screen consumption monitoring) and the rear windows work correctly. The auto start/stop did fail on me last night too.

I'm still waiting for my cable (due 8am of Monday morning just past) to arrive so no scan yet.

My conclusions so far are that the car has hopefully had that "Right-Hand-Drive (RHD) model" box unchecked when I took it in for diagnosing (I saw a screen dump of a vcds screen 5Q0-959-593 E in a folding mirrors thread). And that the master window switch is cooked or has some settings a bit out.

There is also black electrical tape on both cables from each 32 pin plug coming from inside the door through the grommet which is why I checked the wiring diagrams but maybe they just reterminated it.

I've ordered a new master window switch to see if that makes a difference.

Thanks for the help, I'll provide an update as to what happens next.

[FarQ]

when i retrofitted folding mirrors on my golf i also had to get a highline controller for the drivers door (passenger door had highline but not drivers.. weird). i took a copy of the setting prior to swapping out. i had the issue of when folding, they would be out of sync. one would fold and the other would open and vice versa... worked out it was a setting in the coding of the controller for rhd/lhd...

[Mmmm1987]

I finally got an OBDeleven (still waiting for the first cable to arrive).

Here are some dumps:

GATEWAY

Car: Volkswagen Golf Alltrack
Year: 2016
Body type: Variant
Engine: CJSB 132 kW (180 HP) 1.8 l
Mileage: 131578 KM

---------------------------------------------------------------
19 Gateway

System description: GW MQB High
Software number: 5Q0907530AF
Software version: 2223
Hardware number: 5Q0907530M
Hardware version: 212
Serial number: 23071510802447
ODX name: EV_GatewConti
ODX version: 013020
Long coding: 030100343F085900FB00224A1E0F0001000105000000000000 0000000000

Trouble codes:
U020000 - Lost Communication With “Door Control Module B”
static
Date: 2021-05-25 15:30:11
Mileage: 131505 km
Priority: 2
Malfunction frequency counter: 9
Unlearning counter: 208
Supply voltage, terminal 30: 14.0 V
Terminal 15: On

DRIVER DOOR

Car: Volkswagen Golf Alltrack
Year: 2016
Body type: Variant
Engine: CJSB 132 kW (180 HP) 1.8 l
Mileage: 131578 KM

---------------------------------------------------------------
42 Driver Door

Hardware version: 010

Trouble codes:
No trouble codes found

CENTRAL ELECTRICS

Car: Volkswagen Golf Alltrack
Year: 2016
Body type: Variant
Engine: CJSB 132 kW (180 HP) 1.8 l
Mileage: 131578 KM

---------------------------------------------------------------
09 Central Electrics

System description: BCM PQ37BOSCH
Software number: 5Q0937086AK
Software version: 0162
Hardware number: 5Q0937086AK
Hardware version: 028
Serial number: 86582507150065
ODX name: EV_BodyContrModul1UDSBosc
ODX version: 015002
Long coding: 03511A46C24122FB4BE44000000C0728180000000000000000 0000000000

Trouble codes:
U112100 - Databus missing message
static
Date: 2021-05-25 15:30:09
Mileage: 131505 km
Priority: 6
Malfunction frequency counter: 1
Unlearning counter: 207
Terminal 15 status: On
Terminal 50 status: Off
Voltage: 13.9 V
Outside air temperature: 24.5 °C
Status Bremslichtschalter (HW): Off
Status Bremslichtschalter (CAN): Off
Off: operated
Parking light: not activated
Automatic high beam assist: not activated
Low beam: not activated
Parking light left: not activated
Parking light right: not activated
Letzte Weckursache/ Werte [00;2E]: Pin C14 Kessy Weckleitung
CAN-Bus_aktiv: On
U112100 - Databus missing message
static
Date: 2021-05-25 15:30:09
Mileage: 131505 km
Priority: 6
Malfunction frequency counter: 1
Unlearning counter: 207
Terminal 15 status: On
Terminal 50 status: Off
Voltage: 13.8 V
Outside air temperature: 24.5 °C
Status Bremslichtschalter (HW): Off
Status Bremslichtschalter (CAN): Off
Off: operated
Parking light: not activated
Automatic high beam assist: not activated
Low beam: not activated
Parking light left: not activated
Parking light right: not activated
Letzte Weckursache/ Werte [00;2E]: Pin C14 Kessy Weckleitung
CAN-Bus_aktiv: On
B147918 - Remote key 1 Voltage too low
static
Date: 2021-05-25 16:34:37
Mileage: 131559 km
Priority: 4
Malfunction frequency counter: 1
Unlearning counter: 207
Terminal 15 status: Off
Terminal 50 status: Off
Voltage: 12.6 V
Outside air temperature: 20.5 °C
Status Bremslichtschalter (HW): Off
Status Bremslichtschalter (CAN): Off
Off: operated
Parking light: not activated
Automatic high beam assist: not activated
Low beam: not activated
Parking light left: not activated
Parking light right: not activated
Letzte Weckursache/ Werte [00;2E]: keine Störschutzursache
CAN-Bus_aktiv: On
B147A18 - Remote key 2 Voltage too low
static
Date: 2021-05-25 20:37:57
Mileage: 131572 km
Priority: 4
Malfunction frequency counter: 1
Unlearning counter: 207
Terminal 15 status: Off
Terminal 50 status: Off
Voltage: 12.5 V
Outside air temperature: 19.0 °C
Status Bremslichtschalter (HW): Off
Status Bremslichtschalter (CAN): Off
Off: not activated
Parking light: not activated
Automatic high beam assist: operated
Low beam: not activated
Parking light left: not activated
Parking light right: not activated
Letzte Weckursache/ Werte [00;2E]: keine Störschutzursache
CAN-Bus_aktiv: On

ENGINE

Car: Volkswagen Golf Alltrack
Year: 2016
Body type: Variant
Engine: CJSB 132 kW (180 HP) 1.8 l
Mileage: 131578 KM

---------------------------------------------------------------
01 Engine

System description: 1.8l R4 TFSI
Software number: 8V0906264H
Software version: 0003
Hardware number: 06K907425B
Hardware version: H13
ODX name: EV_ECM18TFS0208V0906264H
ODX version: 001005
Long coding: 319D00122426050B3000

Trouble codes:
U049A00 - Invalid Data Received From “Door Control Module A”
static
Date: 2021-05-25 15:30:11
Mileage: 131505 km
Priority: 2
Malfunction frequency counter: 118
Unlearning counter: 255
Engine speed: 880.50 1/min
Normed load value: 22.0 %
Vehicle speed: 0 km/h
Coolant temperature: 86 °C
Intake air temperature: 67 °C
Ambient air pressure: 1010 mbar
Voltage terminal 30: 12.148 V
Dynamic environmental data: 209628110E0216E002202F0DFD11A8000511AB002143832001 16E002

So far, I have changed out the driver door control module, the driver door master windows switch set, the start stop ignition button and the driver door lock assembly.

Any help would be fantastic as I haven't been able to find much with the Trouble codes.

[DV52]

hmmm........a partial scan report!!

I understand the reasoning why folk remove large chunks of their scan reports before posting on these forums. However, for those of us attempting remote diagnostics - partial scans really do limit fault analysis purely to whatever assumptions are in the mind of the individual who edited the scan.

Sometimes these assumptions are correct - but other times they are not. I'm not sure which is the case in this instance, but my practice when seeking advice about a problem is NEVER to make any assumptions about which part of a scan report to include (and which to exclude) - because the potential cost of a truncated scan is not worth the advantage of a neat post.

So, based purely on just the information provided, I provide the observations below:

The DTC on the hex19 module and on the BCM suggests (to me) a comms issue on the CAN bus (the Convenience CAN - I suspect). Because the date of the scan report has been removed, I'm not sure how prevalent the comms issue is, but the frequency counter on the Gateway module confirms that the same error has re-appeared on 9 separate occasions since first registration (yesterday). So the comms error appears to be persistent!

As for the cause - I'm not sure, but you mention in one of your posts seeing "black electrical tape" - this suggests that the wiring has been repaired. If so, this might be a good place to start - but connector pins are also worth investigating (particularly those pins related to power supply and CAN-high/CAN-low functions)


The telling aspect (for me) for the DTC on the hex01 module is that it has the same date/time stamp as the errors above - so, this might be a consequential fault to the comms problem. However, "invalid data" could also be suggestive of a coding error (maybe?).

Please post-up a copy of the long-code strings on both the Driver and Passenger door modules.

Don

[Mmmm1987]

A bigger picture makes much more sense. I didn't realise that there was an export button for the whole scan. Thank you for your patience.

I have not been able to delve into anything to do with the doors. When trying to open either controller I get a loading symbol in the centre of the screen then after about 30 seconds I am prompted with "Control unit not responding. Check ignition and try again." The driver door has a red 42 circle highlight at the top right and the passenger door has a 52 with a black highlight.



Here is the full scan:

OBDeleven vehicle history log


Date: 2021-05-27 14:10


VIN: WVWZZZAUZ
Car: Volkswagen Golf Alltrack
Year: 2016
Body type: Variant
Engine: CJSB 132 kW (180 HP) 1.8 l
Mileage: 131683 KM


---------------------------------------------------------------
Fault
Control unit: 01 Engine
Active faults: 0
Inactive faults: 1
System description: 1.8l R4 TFSI
Software number: 8V0906264H
Software version: 0003
Hardware number: 06K907425B
Hardware version: H13
ODX name: EV_ECM18TFS0208V0906264H
ODX version: 001005
Faults:
U049A00 - Invalid Data Received From “Door Control Module A”
static
Date: 2021-05-25 15:30:11
Mileage: 131505 km
Priority: 2
Malfunction frequency counter: 254
Unlearning counter: 255
Engine speed: 880.50 1/min
Normed load value: 22.0 %
Vehicle speed: 0 km/h
Coolant temperature: 86 °C
Intake air temperature: 67 °C
Ambient air pressure: 1010 mbar
Voltage terminal 30: 12.148 V
Dynamic environmental data: 209628110E0216E002202F0DFD11A8000511AB002143832001 16E002




Mileage: 131683 km
Date: 2021-05-27 12:00


---------------------------------------------------------------
Fault
Control unit: 02 Transmission
Active faults: 0
Inactive faults: 1
System description: DQ250-6A MQB
Software number: 0D9300012F
Software version: 4909
Hardware number: 02E927770AQ
Hardware version: H53
Serial number: TFK01506240566
ODX name: EV_TCMDQ250021
ODX version: 001001
Faults:
P173400 - Starter release from the selector lever sensor system
Intermittent




Mileage: 131683 km
Date: 2021-05-27 12:00


---------------------------------------------------------------
Fault
Control unit: 03 Brakes
Active faults: 0
Inactive faults: 0
System description: ESC
Software number: 3Q0907379AA
Software version: 0623
Hardware number: 3Q0907379F
Hardware version: H42
Serial number: 62085000004616
ODX name: EV_Brake1UDSContiMK100IPB
ODX version: 034036
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:00


---------------------------------------------------------------
Fault
Control unit: 08 Air Conditioning
Active faults: 0
Inactive faults: 3
System description: Climatronic
Software number: 5G0907044BD
Software version: 1001
Hardware number: 5G0907044BD
Hardware version: H03
ODX name: EV_ACClimaBHBVW37X
ODX version: 004131
Faults:
B108B71 - Fresh air, recirculation, air flow flap motor Actuator jammed
Intermittent
Date: 2021-05-25 15:30:08
Mileage: 131505 km
Priority: 2
Malfunction frequency counter: 10
Unlearning counter: 251
Dynamic environmental data: 028683260931261300EA261E003F1C261F0021
B109B15 - Position Sensor for Fresh air, recirculation, air flow flap Open circuit/short circuit to B+
Intermittent
Date: 2021-05-27 09:53:47
Mileage: 131673 km
Priority: 2
Malfunction frequency counter: 1
Unlearning counter: 250
Dynamic environmental data: 02867A260923261300D9261E002200261F0021
U112100 - Databus missing message
static
Date: 2021-05-25 15:30:08
Mileage: 131505 km
Priority: 6
Malfunction frequency counter: 1
Unlearning counter: 207




Mileage: 131683 km
Date: 2021-05-27 12:00


---------------------------------------------------------------
Fault
Control unit: 09 Central Electrics
Active faults: 0
Inactive faults: 4
System description: BCM PQ37BOSCH
Software number: 5Q0937086AK
Software version: 0162
Hardware number: 5Q0937086AK
Hardware version: 028
Serial number: 86582507150065
ODX name: EV_BodyContrModul1UDSBosc
ODX version: 015002
Faults:
U112100 - Databus missing message
static
Date: 2021-05-25 15:30:09
Mileage: 131505 km
Priority: 6
Malfunction frequency counter: 1
Unlearning counter: 207
Terminal 15 status: On
Terminal 50 status: Off
Voltage: 13.9 V
Outside air temperature: 24.5 °C
Status Bremslichtschalter (HW): Off
Status Bremslichtschalter (CAN): Off
Off: operated
Parking light: not activated
Automatic high beam assist: not activated
Low beam: not activated
Parking light left: not activated
Parking light right: not activated
Letzte Weckursache/ Werte [00;2E]: Pin C14 Kessy Weckleitung
CAN-Bus_aktiv: On
U112100 - Databus missing message
static
Date: 2021-05-25 15:30:09
Mileage: 131505 km
Priority: 6
Malfunction frequency counter: 1
Unlearning counter: 207
Terminal 15 status: On
Terminal 50 status: Off
Voltage: 13.8 V
Outside air temperature: 24.5 °C
Status Bremslichtschalter (HW): Off
Status Bremslichtschalter (CAN): Off
Off: operated
Parking light: not activated
Automatic high beam assist: not activated
Low beam: not activated
Parking light left: not activated
Parking light right: not activated
Letzte Weckursache/ Werte [00;2E]: Pin C14 Kessy Weckleitung
CAN-Bus_aktiv: On
B147918 - Remote key 1 Voltage too low
static
Date: 2021-05-25 16:34:37
Mileage: 131559 km
Priority: 4
Malfunction frequency counter: 1
Unlearning counter: 207
Terminal 15 status: Off
Terminal 50 status: Off
Voltage: 12.6 V
Outside air temperature: 20.5 °C
Status Bremslichtschalter (HW): Off
Status Bremslichtschalter (CAN): Off
Off: operated
Parking light: not activated
Automatic high beam assist: not activated
Low beam: not activated
Parking light left: not activated
Parking light right: not activated
Letzte Weckursache/ Werte [00;2E]: keine Störschutzursache
CAN-Bus_aktiv: On
B147A18 - Remote key 2 Voltage too low
static
Date: 2021-05-25 20:37:57
Mileage: 131572 km
Priority: 4
Malfunction frequency counter: 2
Unlearning counter: 210
Terminal 15 status: Off
Terminal 50 status: Off
Voltage: 12.5 V
Outside air temperature: 19.0 °C
Status Bremslichtschalter (HW): Off
Status Bremslichtschalter (CAN): Off
Off: not activated
Parking light: not activated
Automatic high beam assist: operated
Low beam: not activated
Parking light left: not activated
Parking light right: not activated
Letzte Weckursache/ Werte [00;2E]: keine Störschutzursache
CAN-Bus_aktiv: On




Mileage: 131683 km
Date: 2021-05-27 12:01

[Mmmm1987]

---------------------------------------------------------------
Fault
Control unit: 15 Airbag
Active faults: 0
Inactive faults: 0
System description: AirbagVW20
Software number: 5Q0959655D
Software version: 0388
Hardware number: 5Q0959655D
Hardware version: 015
Serial number: 003F6R0Z24BH
ODX name: EV_AirbaVW20SMEVW37X
ODX version: 002130
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:01


---------------------------------------------------------------
Fault
Control unit: 16 Steering Column
Active faults: 0
Inactive faults: 0
System description: Lenks.Modul
Software number: 5Q0953521AT
Software version: 0175
Hardware number: 5Q0953569A
Hardware version: 075
Serial number: 20150731400131
ODX name: EV_SMLSVALEOMQB
ODX version: 001015
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:01


---------------------------------------------------------------
Fault
Control unit: 17 Dashboard
Active faults: 0
Inactive faults: 0
System description: KOMBI
Software number: 5G1920740A
Software version: 6420
Hardware number: 5G1920740A
Hardware version: 202
ODX name: EV_DashBoardVDDMQBAB
ODX version: 009046
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:02


---------------------------------------------------------------
Fault
Control unit: 19 Gateway
Active faults: 0
Inactive faults: 1
System description: GW MQB High
Software number: 5Q0907530AF
Software version: 2223
Hardware number: 5Q0907530M
Hardware version: 212
Serial number: 23071510802447
ODX name: EV_GatewConti
ODX version: 013020
Faults:
U020000 - Lost Communication With “Door Control Module B”
static
Date: 2021-05-25 15:30:11
Mileage: 131505 km
Priority: 2
Malfunction frequency counter: 15
Unlearning counter: 210
Supply voltage, terminal 30: 14.0 V
Terminal 15: On




Mileage: 131683 km
Date: 2021-05-27 12:02


---------------------------------------------------------------
Fault
Control unit: 22 All Wheel Control
Active faults: 0
Inactive faults: 0
System description: Haldex4Motion
Software number: 0CQ907554D
Software version: 7082
Hardware number: 0CQ525130
Hardware version: H52
Serial number: HA1-00016.06.1500010475
ODX name: EV_AllWheelContrHA1VW37X
ODX version: 002013
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:02


---------------------------------------------------------------
Fault
Control unit: 2B Steering Column Lock
Active faults: 0
Inactive faults: 0
System description: ELV-MQBA
Software number: 5Q0905861A
Software version: 0120
Hardware number: 5Q0905861A
Hardware version: H01
Serial number: 15000176701008
ODX name: EV_ELVMarquMQB
ODX version: 004111
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:02


---------------------------------------------------------------
Fault
Control unit: 42 Driver Door
Active faults: 0
Inactive faults: 0
Hardware version: 010
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:02


---------------------------------------------------------------
Fault
Control unit: 44 Steering Assistance
Active faults: 0
Inactive faults: 0
System description: EPS_MQB_ZFLS
Software number: 5Q0909144R
Software version: 1061
Hardware number: 5Q0909144R
Hardware version: 125
ODX name: EV_SteerAssisMQB
ODX version: 012140
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:03


---------------------------------------------------------------
Fault
Control unit: 55 Headlight Regulation
Active faults: 0
Inactive faults: 0
System description: AFS-ECU
Software number: 7P6907357D
Software version: 0090
Hardware number: 7P6907357A
Hardware version: H07
Serial number: --------------
ODX name: EV_HeadlRegulVWAFSMQB
ODX version: 001120
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:03


---------------------------------------------------------------
Fault
Control unit: 5F Multimedia
Active faults: 0
Inactive faults: 0
System description: MU-S-N-ER
Software number: 3Q0035846
Software version: 0254
Hardware number: 3Q0035846
Hardware version: H24
Serial number: VWZAZ2R0361321
ODX name: EV_MUStd4CTSAT
ODX version: 001022
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:03


---------------------------------------------------------------
Fault
Control unit: 69 Trailer Control
Active faults: 0
Inactive faults: 0
System description: Anhaenger
Software number: 5Q0907383L
Software version: 0260
Hardware number: 5Q0907383L
Hardware version: H27
Serial number: 0537739198
ODX name: EV_TrailFunctGener2Hella
ODX version: 001008
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:03


---------------------------------------------------------------
Fault
Control unit: 76 Parking Assistance
Active faults: 0
Inactive faults: 0
System description: PARKHILFE 8K
Software number: 5Q0919294K
Software version: 0054
Hardware number: 5Q0919294A
Hardware version: H03
Serial number: 39331520602170
ODX name: EV_EPHVA18AU3700000
ODX version: 002026
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:03


---------------------------------------------------------------
Fault
Control unit: B7 Start System Interface
Active faults: 0
Inactive faults: 0
System description: VWKESSYMQB
Software number: 5Q0959435A
Software version: 0604
Hardware number: 5Q0959435
Hardware version: 021
Serial number: 0373415126
ODX name: EV_KessyHellaMQBAB
ODX version: 002011
Faults:
No trouble codes found


Mileage: 131683 km
Date: 2021-05-27 12:04

[DV52]

Arrhhhh..... that's better - but some real strange stuff happening with your scan.

I assume that you have now posted the complete scan, but there is no passenger side door module in the report - it lives @ address hex52. So it should be listed between the Steering Assistance and Headlight Regulation modules - but it ain't there!!

Also, the driver control module is present in your scan but it has refused to report its equipment details - and it has told "porkies" by declaring "No trouble codes found"!

As context for these 2 x observations, I refer to this part of your post:

The driver door has a red 42 circle highlight at the top right and the passenger door has a 52 with a black highlight.

OBD11 has a colored circle for each module - the number in the center of the circle is the address of module on the CAN network and the dot can have the following colors:

• GREEN - The control module is communicating with the CAN Network with no trouble codes
• RED - The control module is communicating with the CAN Network but trouble codes are present
• YELLOW- The control module is attempting to communicate with the CAN Network but it has not been registered with the Gateway module installation list
• BLACK- The control module is registered in the Gateway module installation list - but it has failed to communicate in the challenge/response process

So - your observation about the passenger door module's black dot confirms that there is a comms problem - please refer to my previous suggestion regarding checking wiring/connectors (I assume that the fuse is OK because the module is working for local facilities)

...........And there is clearly an untruth in the scan regarding the driver door module having no trouble codes (I tend to believe the colored dot). I suspect that the inability of the hex42 module to report its own equipment details has extended to it's inability to report the trouble codes that are registered within the module's memory.

Don

[Mmmm1987]

I have made progress! What I ended up trying was removing the passenger door module and reconnecting the battery which let me speak to the driver side module easily every time. Following this small success, I put the passenger module into the driver door with the passenger door still empty. I was able to then access it, back it up and change the Right hand drive check box. After putting each door module into the correct door, I had functioning windows at each door and the mirror indicators worked as they should. However, the door switch kept giving me an intermittent open door flashing/driver door switch error and the driver door window control only controlled the driver side windows front and rear.


I ended up ordering a new passenger door module to replace my current one like for like (5Q4 959 592 E). I plugged it in and had the control module number 52 pop up in red (previously black). I changed a few settings with the screen shots I had taken before with it in the driver side door and success. Did a scan, cleared the errors, scanned again and here we are:


Central Electrics 09 Green
Gateway 19 Green
Driver door 42 Red (B200500 - Data Record Invalid)
Passenger door 52 Green


I am at a total loss with how my original passenger module decided to be a LHS considering I have never been able to log into it. I wish I had started with an OBD11 scan before I took it for dealership diagnosis.


Any idea how to clear this final code so I can have all green (apart from the Headlight Regulation 55 Red, needing to replace a cornering globe I think)?


Thanks so much for your time!


OBDeleven data log


Date: 2021-06-20 16:46


VIN: WVWZZZAUZGP53
Car: Volkswagen Golf Alltrack
Year: 2016
Body type: Variant
Engine: CJSB 132 kW (180 HP) 1.8 l
Mileage: 132850 KM


---------------------------------------------------------------
01 Engine


System description: 1.8l R4 TFSI
Software number: 8V0906264H
Software version: 0003
Hardware number: 06K907425B
Hardware version: H13
ODX name: EV_ECM18TFS0208V0906264H
ODX version: 001005
Long coding: 319D00122426050B3000


Trouble codes:
No trouble codes found


---------------------------------------------------------------
02 Transmission


System description: DQ250-6A MQB
Software number: 0D9300012F
Software version: 4909
Hardware number: 02E927770AQ
Hardware version: H53
Serial number: TFK01506240566
ODX name: EV_TCMDQ250021
ODX version: 001001
Long coding: 0014


Trouble codes:
P173400 - Starter release from the selector lever sensor system
Intermittent




---------------------------------------------------------------
03 Brakes


System description: ESC
Software number: 3Q0907379AA
Software version: 0623
Hardware number: 3Q0907379F
Hardware version: H42
Serial number: 62085000004616
ODX name: EV_Brake1UDSContiMK100IPB
ODX version: 034036
Long coding: 43FA8AA13423516C077E070741CA29C2512C8AE0E08294FD00 420038E209


Trouble codes:
No trouble codes found


---------------------------------------------------------------
08 Air Conditioning


System description: Climatronic
Software number: 5G0907044BD
Software version: 1001
Hardware number: 5G0907044BD
Hardware version: H03
ODX name: EV_ACClimaBHBVW37X
ODX version: 004131
Long coding: 02120024200100001005000012101402


Trouble codes:
No trouble codes found

[Mmmm1987]

---------------------------------------------------------------
09 Central Electrics


System description: BCM PQ37BOSCH
Software number: 5Q0937086AK
Software version: 0162
Hardware number: 5Q0937086AK
Hardware version: 028
Serial number: 86582507150065
ODX name: EV_BodyContrModul1UDSBosc
ODX version: 015002
Long coding: 03511A46C24122FB4BE44000000C0728180000000000000000 0000000000


Subsystems:
System description: WWS 150713
Software version: 0551
Hardware version: 042
Serial number: 150717004415
Long coding: 0E4DDD


System description: RLHS
Software version: 0059
Hardware version: 037
Serial number: S5Y15M07D28H14M54S15
Long coding: 90A8DD


System description: J245 PS22.409
Software version: 0004
Hardware version: H03
Serial number: 0000FST000EO8Q000000
Long coding: 191800


System description: J394 PS22.409
Software version: 0004
Hardware version: H03
Serial number: 0000FST000EO89J00000
Long coding: 191800


Trouble codes:
No trouble codes found


---------------------------------------------------------------
15 Airbag


System description: AirbagVW20
Software number: 5Q0959655D
Software version: 0388
Hardware number: 5Q0959655D
Hardware version: 015
Serial number: 003F6R0Z24BH
ODX name: EV_AirbaVW20SMEVW37X
ODX version: 002130
Long coding: 98CCC000000000005C00000000C800000065


Subsystems:
System description: SideSensor_Df
Software version: 0887
Hardware version: 001
Serial number: 357670000009C1D4D510
Long coding: 2D2D2D


System description: SideSensor_Pf
Software version: 0887
Hardware version: 001
Serial number: 35867000000C5DE4D51A
Long coding: 2D2D2D


System description: SideSensor_Dr
Software version: 6149
Hardware version: 001
Serial number: 3516502B51C52F25F1FP
Long coding: 2D2D2D


System description: SideSensor_Pr
Software version: 6149
Hardware version: 001
Serial number: 3526502A91B7E8E0B20O
Long coding: 2D2D2D


System description: FrontSensor_D
Software version: 6149
Hardware version: 001
Serial number: 3556502C31B5A875B23I
Long coding: 2D2D2D


Trouble codes:
No trouble codes found


---------------------------------------------------------------
16 Steering Column


System description: Lenks.Modul
Software number: 5Q0953521AT
Software version: 0175
Hardware number: 5Q0953569A
Hardware version: 075
Serial number: 20150731400131
ODX name: EV_SMLSVALEOMQB
ODX version: 001015
Long coding: 0410


Trouble codes:
No trouble codes found


---------------------------------------------------------------
17 Dashboard


System description: KOMBI
Software number: 5G1920740A
Software version: 6420
Hardware number: 5G1920740A
Hardware version: 202
ODX name: EV_DashBoardVDDMQBAB
ODX version: 009046
Long coding: 27A4101B2B80000801086A001400000000000000


Trouble codes:
No trouble codes found

[Mmmm1987]

19 Gateway


System description: GW MQB High
Software number: 5Q0907530AF
Software version: 2223
Hardware number: 5Q0907530M
Hardware version: 212
Serial number: 23071510802447
ODX name: EV_GatewConti
ODX version: 013020
Long coding: 030100343F085900FB00224A1E0F0001000105000000000000 0000000000


Subsystems:
System description: J367-BDMHella
Software version: 8050
Hardware version: H04
Serial number: 2038637203


System description: E221__MFL-DC1
Software version: 0038
Hardware version: H16
Serial number: 29150001471550095292
Long coding: 29FFFF


Trouble codes:
No trouble codes found


---------------------------------------------------------------
22 All Wheel Control


System description: Haldex4Motion
Software number: 0CQ907554D
Software version: 7082
Hardware number: 0CQ525130
Hardware version: H52
Serial number: HA1-00016.06.1500010475
ODX name: EV_AllWheelContrHA1VW37X
ODX version: 002013
Long coding: 0001


Trouble codes:
No trouble codes found


---------------------------------------------------------------
2B Steering Column Lock


System description: ELV-MQBA
Software number: 5Q0905861A
Software version: 0120
Hardware number: 5Q0905861A
Hardware version: H01
Serial number: 15000176701008
ODX name: EV_ELVMarquMQB
ODX version: 004111
Long coding: 5D00000000000000


Trouble codes:
No trouble codes found


---------------------------------------------------------------
42 Driver Door


System description: TSG FS
Software number: 5Q4959593E
Software version: 0032
Hardware number: 5Q4959593B
Hardware version: 011
Serial number: 0000424664736
ODX name: EV_DCUDriveSideEWMAXCONT
ODX version: 006001
Long coding: 003A13208001040000001000


Subsystems:
System description: Fond FHSG DRV
Software version: 0002
Hardware version: 007
Serial number: 00000000000009852347
Long coding: 0D0000


Trouble codes:
B200500 - Data record invalid
static
Date: 2021-06-20 00:50:47
Mileage: 132850 km
Priority: 2
Malfunction frequency counter: 1
Unlearning counter: 251




---------------------------------------------------------------
44 Steering Assistance


System description: EPS_MQB_ZFLS
Software number: 5Q0909144R
Software version: 1061
Hardware number: 5Q0909144R
Hardware version: 125
ODX name: EV_SteerAssisMQB
ODX version: 012140
Long coding: 8103


Trouble codes:
No trouble codes found

[Mmmm1987]

52 Passenger Door


System description: TSG BFS
Software number: 5Q4959592E
Software version: 0032
Hardware number: 5Q4959592B
Hardware version: 011
Serial number: 0000278888706
ODX name: EV_DCUPasseSideEWMAXCONT
ODX version: 006001
Long coding: 001B0120CC01048000001100


Subsystems:
System description: Fond FHSG PSG
Software version: 0002
Hardware version: 007
Serial number: 00000000000009780364
Long coding: 050000


Trouble codes:
No trouble codes found


---------------------------------------------------------------
55 Headlight Regulation


System description: AFS-ECU
Software number: 7P6907357D
Software version: 0090
Hardware number: 7P6907357A
Hardware version: H07
Serial number: --------------
ODX name: EV_HeadlRegulVWAFSMQB
ODX version: 001120
Long coding: 06AE00000B000200


Subsystems:
System description: LeiMo links
Software version: 0002
Hardware version: H01
Long coding: 2E0000


System description: LeiMo rechts
Software version: 0002
Hardware version: H01
Long coding: 2E0000


Trouble codes:
C107E54 - Headlight No basic setting
static
Date: 2021-06-20 00:50:58
Mileage: 132850 km
Priority: 1
Malfunction frequency counter: 1
Unlearning counter: 251




---------------------------------------------------------------
5F Multimedia


System description: MU-S-N-ER
Software number: 3Q0035846
Software version: 0254
Hardware number: 3Q0035846
Hardware version: H24
Serial number: VWZAZ2R0361321
ODX name: EV_MUStd4CTSAT
ODX version: 001022
Long coding: 02730208FF00000051510001000828001F0100D601200102C7


Subsystems:
System description: ABT_Std-2_Nav
Software version: 4064
Hardware version: H43
Serial number: VWZ6Z9R1961528


System description: MRM3 2020/21
Software version: 1420
Hardware version: ---
Serial number: --------------------


Trouble codes:
No trouble codes found


---------------------------------------------------------------
69 Trailer Control


System description: Anhaenger
Software number: 5Q0907383L
Software version: 0260
Hardware number: 5Q0907383L
Hardware version: H27
Serial number: 0537739198
ODX name: EV_TrailFunctGener2Hella
ODX version: 001008
Long coding: 0100000202000000


Trouble codes:
No trouble codes found


---------------------------------------------------------------
76 Parking Assistance


System description: PARKHILFE 8K
Software number: 5Q0919294K
Software version: 0054
Hardware number: 5Q0919294A
Hardware version: H03
Serial number: 39331520602170
ODX name: EV_EPHVA18AU3700000
ODX version: 002026
Long coding: 0031151011


Trouble codes:
No trouble codes found


---------------------------------------------------------------
B7 Start System Interface


System description: VWKESSYMQB
Software number: 5Q0959435A
Software version: 0604
Hardware number: 5Q0959435
Hardware version: 021
Serial number: 0373415126
ODX name: EV_KessyHellaMQBAB
ODX version: 002011
Long coding: 030C0C


Trouble codes:
No trouble codes found



Is there a way to post more than 10000 characters at a time on this forum?
