Water Injection Setup for Golf R. No more BS please

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Water Injection Setup for Golf R. No more BS please

    Water Injection Setup for Golf R

    Hi guys & girls,

    Just thought i would share my water injection setup with you. Although i am only running Water you can run Methanol if you wish. Photos first, information after.

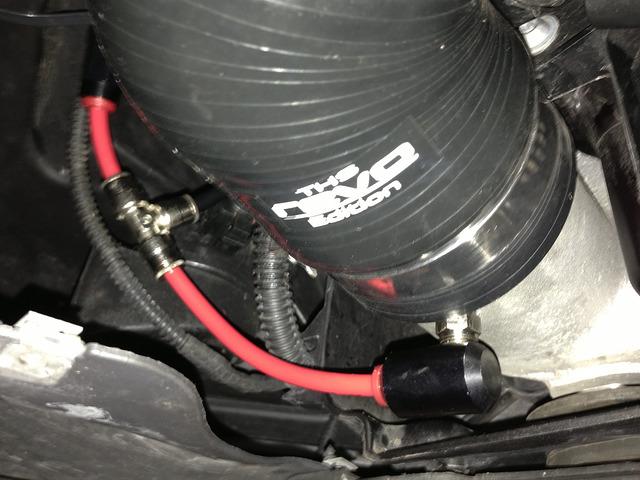

    Ok so my setup consists of 2 nozzles. 1 smaller nozzle is placed just after the intercooler. I drilled and taped a hole in the intercooler outlet pipe and fitted the nozzle so it was flush with the inner diameter. This nozzle dramatically cools down the air going up the uptake pipe, most importantly it feeds the intake air temp sensor the information we want which is that the air is now super cool. This then tells the ECU "hey man its cool to run all that timing/boost we tuned into it".

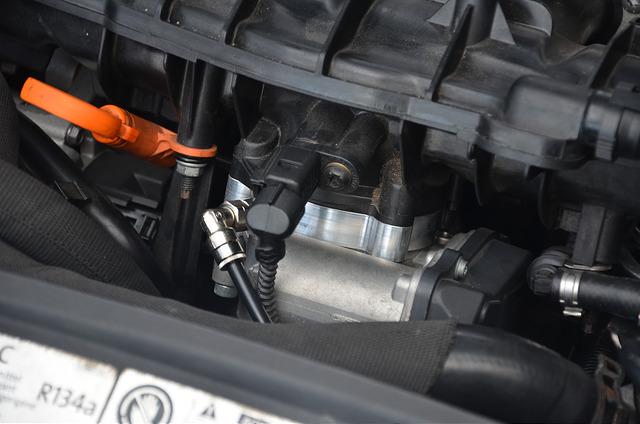

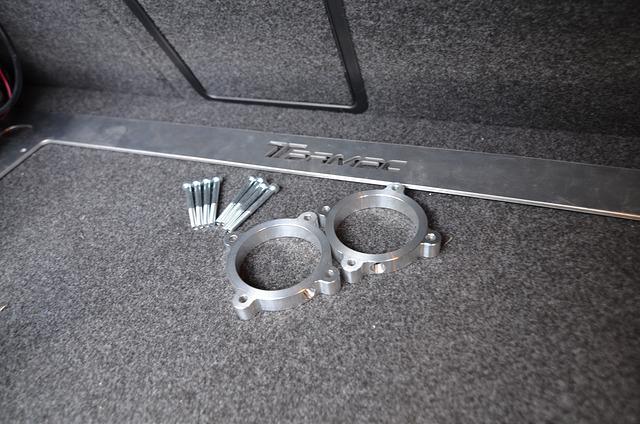

    The 2nd nozzle is placed in my specially made throttle body spacer. The best bit is i have made 2 different types. 1 for snow performance nozzles and 1 for devilsown nozzles (yes they are different) Anyway now my plug is over back to the story. The 2nd nozzle is larger than the first and this really feeds a lot of water/meth spray into the intake manifold which is fed down through the head into the cylinders. Note that having a main nozzle before the throttle body is not a good idea (some after market uptake pipes have a position for them) and it can damage the throttle body butterfly assembly and cause it to fail. Also note that i am using the stock uptake pipe.

    Now i have nice cool atomized spray (super fine mist) going into my intake manifold. This dramatically reduces heat inside the cylinders. (up to -300degrees, "apparently") Protects pistons, gives more consistent power, more power by enabling you to run a lot more timing and or boost. (more power) on a stage 2 Golf R you can obtain up to 28awkw more just be running a similar setup.

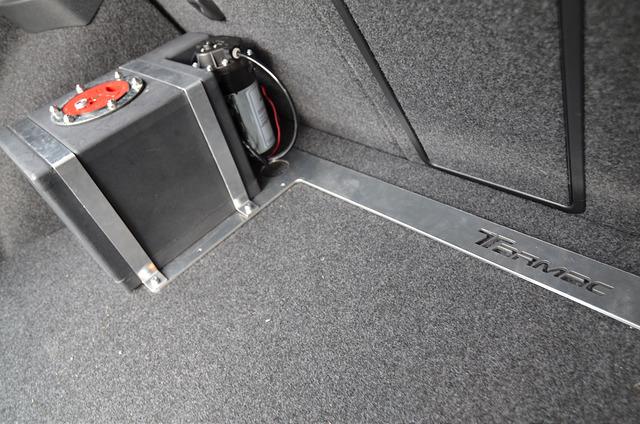

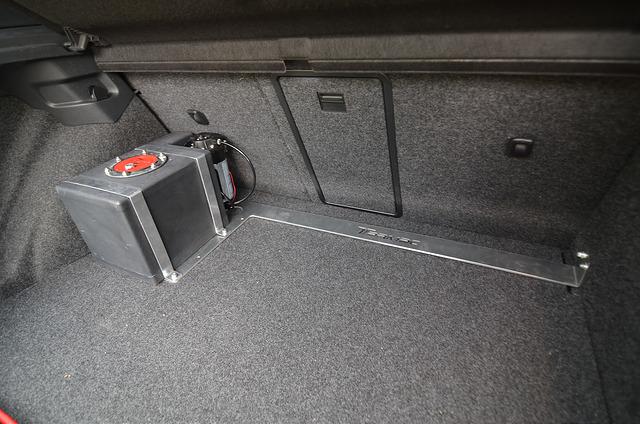

    The tank. 8.5 litre race tank. Baffled, 250psi pump attached to it and i have installed a float level sensor so i am warned on the controller when the level is getting low. How is it held in? With a custom bracket i made to hold the tank in place, this sits on top but is floating on the floor of the boot. I can still get my spare wheel out etc. Winning. How noisy is it inside the cabin? WELL, i cant hear it at all. It makes no noise.

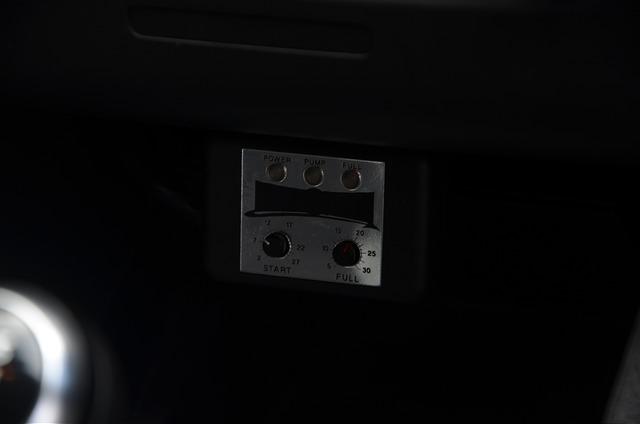

    Controller: Progressive boost controller. I have mine set to start coming on around 8psi which it starts feeding at about 20% duty cycle. Then by 20psi it is at 95-100% duty cycle and stays on 100% until the throttle has been lifted off or boost goes below 8psi. Power light, pump on light and level sensor light so its a fairly safe setup.

    All in all i think this is a very neat and tidy setup. It serves its purpose perfectly and is a good value for money upgrade for anyone with a low to heavily modified setup. Especially in our hot climate.

    Cheers

    Ben
    Last edited by Tarmac; 05-04-2013, 08:24 AM.
    www.tarmacengineering.com.au

  • #2
    WOW, awesome setup Ben, once you get the tune to match you will have to update the thread.
    ║ "The mind is willing but the body is weak" ║ Frazza's MY11 RB Golf R Instagram

    Comment


    • #3
      Looks like a very neat setup.

      This is basically designed to reduce loss of power from heatsoak isn't it?
      My Tiguan TSI APR Stg2 + RPF1's

      Comment


      • #4
        That's a very impressive installation

        If I had stage 3 I would definately do this also
        (As I'm FWD I can't get all the benefits of stage 3 like a 4WD)
        2012.1 Skoda Octavia VRS DSG Wagon - Carbonio cold air intake and pipe - HPA Motorsports BBK 355mm rotors 6 pot calipers
        APR Stage II ECU - APR 3" exhaust down pipe & high flow catalyst
        APR/HP Roll bars - Eibach springs and Bilstien shocks
        Supaloy lower control arms - Enkei 18*8 Wheels

        Comment


        • #5
          Nice setup - I would just like to point out that if this is a "road" car (registered) then its totally illegal, uninsurable, and a major hazard to the passengers (and other road users) in an accident.

          Anybody considering this for a road or street car should be aware of the legalities & regulations.
          sigpic

          Comment


          • #6
            Originally posted by team_v View Post
            Looks like a very neat setup.

            This is basically designed to reduce loss of power from heatsoak isn't it?
            Water injection is essentially to prevent detonation or pre-ignition.

            Essentially, when the droplets of fuel ignite, there is an amount of energy required to burn the droplet, and any excess produced ignites adjacent droplets. This causes an flame front to advance. If too many droplets ignite, the flame front advances too fast and this causes a pressure wave. This pressure wave combined with the compression of the engine can cause a secondary source of ignition, and when the two or more flame fronts meet, you get the sound of detonation with a shock wave. It is this shock wave and the high associated temperatures that causes the damage.

            Water injection introduces inert droplets and they absorb some of the energy as the water droplet turns to steam. Too many droplets and you can quench the flame and shut down combustion.

            This allows you to have a high compression ratio but use a lesser fuel and extract maximum power. The methanol helps to produce the water droplets of the correct size as it is soluble in water.

            Probably the most famous engine that used this was the Spitfire, and it was only used on take off.

            Again this has to be used cautiously as you can damage the engine if things don't work out quite as expected.
            --

            Comment


            • #7
              Originally posted by team_v View Post
              Looks like a very neat setup.

              This is basically designed to reduce loss of power from heatsoak isn't it?
              Yes. Turbos create so much heat that you get robbed of power. This cools down the intake temp buy a lot enabling you to run a lot more timing.

              Originally posted by Martin View Post
              That's a very impressive installation

              If I had stage 3 I would definately do this also
              (As I'm FWD I can't get all the benefits of stage 3 like a 4WD)
              Do it.

              Originally posted by Guy_H View Post
              Nice setup - I would just like to point out that if this is a "road" car (registered) then its totally illegal, uninsurable, and a major hazard to the passengers (and other road users) in an accident.

              Anybody considering this for a road or street car should be aware of the legalities & regulations.
              This isnt illegal Guy. I checked with Transport QLD. I am running 100% Distilled water. Not flammable.

              No Methanol will be going in this tank. Although of course there is the option for racing to help aid in more heat reduction.
              www.tarmacengineering.com.au

              Comment


              • #8
                Great to see , I had a water injector system on my old 202 HQ one tonner , half water half metho never had a ping even under heavy load ,

                Comment


                • #9
                  Originally posted by Tarmac View Post
                  Yes. Turbos create so much heat that you get robbed of power. This cools down the intake temp buy a lot enabling you to run a lot more timing.



                  Do it.



                  This isnt illegal Guy. I checked with Transport QLD. I am running 100% Distilled water. Not flammable.

                  No Methanol will be going in this tank. Although of course there is the option for racing to help aid in more heat reduction.
                  Sorry Ben, it is completely illegal - we have been through this with the QLD Transport engineers (Same people who have to verify your other mods) - I assume you are completely familiar with ADR 17?

                  There have been several BMW 135is defected for way better setups than this recently (mounted in a steel tank separate from the engine compartment).

                  Please show me who will certify a "water" injection system - I would love to have a chat to them
                  sigpic

                  Comment


                  • #10
                    Oh, P.S, most race tracks have banned it for circuit use as well, Cams have regulations & it also points back to the ADR on the technicalities of installation.
                    sigpic

                    Comment


                    • #11
                      Ok i clearly spoke to the wrong person at QLD transport then. I will call back and get to the bottom of it. Its kind of stupid isnt it, there is nothing dangerous about this setup in the slightest.

                      I think you have made your point regarding this now. Thank you
                      www.tarmacengineering.com.au

                      Comment


                      • #12
                        Originally posted by Guy_H View Post
                        Oh, P.S, most race tracks have banned it for circuit use as well, Cams have regulations & it also points back to the ADR on the technicalities of installation.
                        Just for the record, CAMS allow water injection; Quote: Water injection and spraying: The spraying of water onto the intercooler is free, as is water injection into the intercooler and/or the intake manifold. Any such arrangements shall be specified on the Recognition Form along with the water reservoir position and capacity.

                        However i guess Tarmac's car is for the road so anything about CAMS is irrelevant.
                        ║ "The mind is willing but the body is weak" ║ Frazza's MY11 RB Golf R Instagram

                        Comment


                        • #13
                          Water/Meth Injection Setup for Golf

                          Ok we'll my mate is an engineer and blue plates cars. I have asked him and plain water injection is perfectly legal for road use it is only illegal if you use methanol mixture!
                          YAY I got my R!!!! White, recaro seats, 19" wheels, bluetooth, reverse camera

                          Comment


                          • #14
                            Originally posted by shinygti View Post
                            Ok we'll my mate is an engineer and blue plates cars. I have asked him and plain water injection is perfectly legal for road use it is only illegal if you use methanol mixture!
                            Thank you for that great bit of information shinygti. Much appreciated. It backs up what i was also told.
                            www.tarmacengineering.com.au

                            Comment


                            • #15
                              Water/Meth Injection Setup for Golf

                              If you like Ben we can get this plated for you and a select few with no worries and without being dodge.
                              YAY I got my R!!!! White, recaro seats, 19" wheels, bluetooth, reverse camera
