THS Seat sport intercooler install pics

[noone]

No issues with the Seat core... are you using the Seat brackets?

[s4mmie]

Yep all good, was just cause the jack was pushing it up
Thanks guys.

[noone]

I take i you received the last bend from Hazrd? All good? did you end up shortening one leg of one of the elbows?

I found I had to tighten the clamps up pretty tight, would like to test it for leaks some time, guess I'll have to make a bike pump style pressure system.

[s4mmie]

Yep Thanks mate.


Yeah I had to shorten both sides of the 90 deg bend with the flange, no biggy.
It all fit pretty well, it's snug in there!
I think I'm going to get another 2" length of alloy and 90 deg silicone bend to replace the remaining plastic pipes. I think yours is already done with the left-over Forge stuff?
I took it for a couple of runs up a few hills and it seems to hold pressure like normal. I might get Jimmy to chuck his smoke tester on it sometime...

[clicht]

Yep all good, was just cause the jack was pushing it up
Thanks guys.

haha..

[hazrd]

So i finally had a chance to have a crack at this today. All fitted up and looking good. one problem. the fking front bar wont fit back on!!

Cant find any pics to see if anyone had modified the front bar or any info as to whether they were.... what am i doing wrong?

Here
- top of the intercooler (and looks like the back of where the badge clips in aswell)


And here (driver side foglight recess hitting the lower pipe work





Any ideas? What am i missing?

[Redliner]

Get out your dremel!
Cut out any areas that are touching.

[hazrd]

Re: THS Seat sport intercooler install pics

Get out your dremel!
Cut out any areas that are touching.

Fair enough. Just wanted to make sure that you guys cut a few pieces out aswell. Last thing I wanted was to cut it out when not needed!

Will finish it off tomorrow. Time for a beer!

Finished pic and final verdict tomorrow

[clicht]

Yip, lots of cutting

[s4mmie]

+1, feels like a massacre but it needs to be done.

[noone]

the most cutting is required behind the grill at the top. The Seat core sits proud, quite an obvious cooler, I think it looks good and sits well, but lots of plastic and clippy bits are no longer. Take your time, don't remove any more than you have to, its pretty easy to do a test fit after a little cutting.

Tighten all the clamps some more, do a test drive before you put the bar back on if you can. I had to take it off again to kill a leak.

[hazrd]

Re: THS Seat sport intercooler install pics

Oh crap the test drive lol I was so focussed on getting the bar on I forgot about that!

Will do that before I start hacking into the bar. Thanks for the heads up!

[AUC-05L]

Also take some photos of how much to cut off as I will be doing this over the xmas break (if all the bits arrive in time!)

[hazrd]

Alrighty. Im done. @AUC-05L ... I didnt take many pics of what needed to be cut. But I can specify where:

- The plastic piece that the bar is screwed into at the middle has to come off completely.
- D/S Foglight cover: The middle part of the plastic needs about half an inch taken off from the inside. The intake pipe hits on it as it curves around.
- The inner foglight recess needs to be cut back... a lot... (Pics are above) otherwise the pipework hits it. Try to cut it so that the lower clip is still there because it will slide under the piping and still clip in
- A decent chunk of the bar needs to come off where the grille clips in as the intercooler's outlet hits on the bar and the bar wont clip in properly otherwise (pics also above)
- Note that you will only have two of the four clips left for the lower part of the grille (as the rest need to be cut down). But its fine, the grille is still held in by 4 screws at the top.
- the 1st (driver side) clip on the grille itself needs to come off completely. The intercooler will hit it and the grille wont go on otherwise.

It looks like a lot, but once it is all on, you dont see anything you have modified so it still looks like a very clean install (plus im anal so i sanded back and buffed the parts I cut back to neaten it up)

Definitely a worthy upgrade. Same boost (for now) but you can definitely feel that the response has increased and it is definitely smoother.
Hoses are on VERY tight, so I dont think they will be going anywhere.

Final Pics:

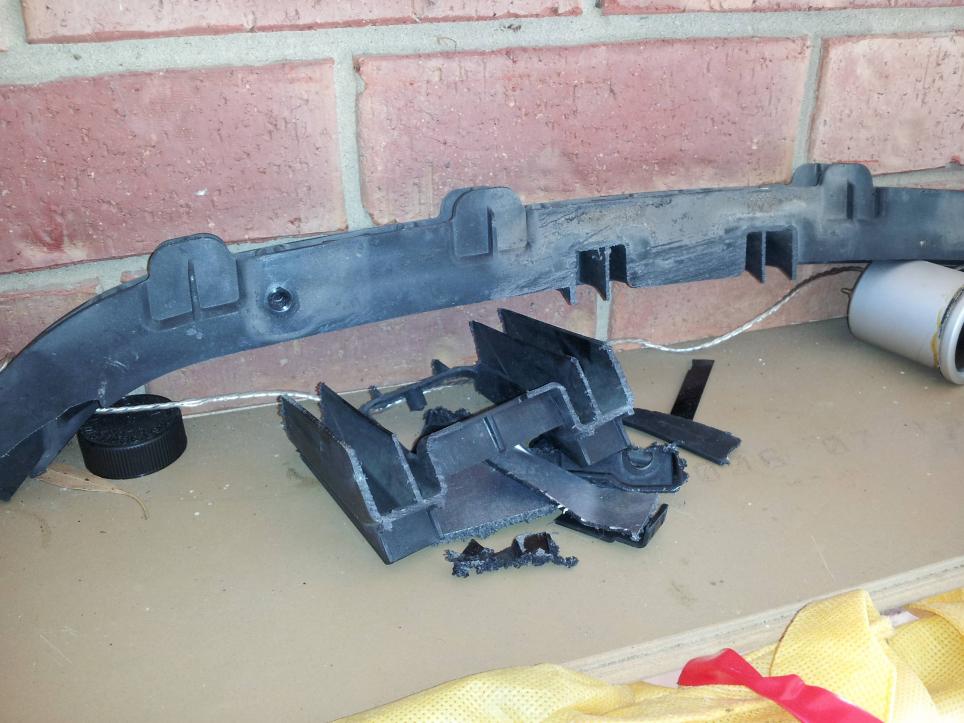

And here is whatever plastic I could find on the floor after we had hacked the crap out of it lol

[noone]

Looks good, very obvious IC afterwards, but not so much as to draw attention for those who don't know the model.

I have a theory that it makes its money back in long term fuel savings, or so I tell myself...
