Bonkers 10.4 inch infotainment system

[rjt86]

How does it go with the amp?
Need a LOC?

Sent from my HTC 10 using Tapatalk

No need for a LOC it mates with the factory quad lock connector and I didn't have to modify any wires or connectors at all. The r36 has dynaudio and it works with it, however the only issue is when a rns510 is coded for use with dynaudio it reduces the signal output to take into account the volume level after it's been amped. The Chinese unit does not have a dynaudio option or a way to drop the signal level output. Therefore the volume control from mute to 1, 1 being the lowest is like having the volume level just under a quarter on the RNS, it's still a quiet level but another gripe with the unit, there may be a way around this with a app or something.

The unit won't work with a factory reverse camera out of the box, as this unit does not have the usual rectangular plug for video. it therefore requires a RGB to Composite converter, this converter requires power and reverse signal wired to work. Something to keep in mind for those with a factory cam.

[rjt86]

great work, I just saw this and would be interested. How long did the install take and are the controls link with the steering. I wanted to ask if you got the OBD option. ALso does it have a GPS antenna, did you get the rear view camera option?
thanks.

Install took about 30min, It requires removal of the rns/rcd and the air con controls. Then plug all the cables in to the rectangular processing unit, a cable from the processing unit to screen & finally the 3 aircon plugs into the bottom of the screen directly.

Steering controls work well, volume up/down, mute (I didn't have voice control in this car) and the phone button to answer/ end calls. Something to consider with this unit is it does not display audio or navigation info on the MFD.

I didn't get it with the OBD option as it was not offered however it does have a USB connection, therefore you could download a app and hook it up to a OBD cable, maybe Bluetooth might work also.

The car came with gps from factory therefore it connected to the existing gps cable and antenna. It does come with a small magnetic antenna in the box also.

Rear view camera option- see my post above this which outlines this.

[rjt86]

That's wild! Do you think it's worth the $?


Sent from my iPhone using Tapatalk

Cost me $580 shipped, I like the functionality and the many options of apps being android.

For example I could read and reply to emails, surf the net, stream music or video. I could even install the Tapatalk app on it and reply to you guys sooner lol (however I haven't driven it since the weekend) All this from unit in a car, to add obviously not while driving....

I'm still sussing out the Bluetooth quality, I've made a couple of calls and people can hear me, one mentioned that my voice was faint however. It works but would of been much better with a external mic or better yet, integrated with the mic used for factory Bluetooth near the map lights.

[passat_r36]

wow! always liked the look of these but my experience with my last 4 android units have put me off these all together. keen to see some videos though!!!

[909OGO]

Here we go, does this makes me the second person to trial the "Tesla" like infotainment system? Haha













So according to the seller in China, the unit I got is so called Version 3, which has air-con controls on both side of the screen, the one Ryan is using (apparently) is Version 1 which has less buttons BUT my unit came loaded with Android 4.4.4 Kitkat whereas Ryan's version 1 has Android 6 Marshmallow, go figure!

Functionality wise i assume is the same, i had highline RVC and needed the RGB converter box to make it work and it did.

[Foxpuppet]

Here we go, does this makes me the second person to trial the "Tesla" like infotainment system? Haha

[ATTACH=CONFIG]30244[/ATTACH]

[ATTACH=CONFIG]30245[/ATTACH]

[ATTACH=CONFIG]30246[/ATTACH]

[ATTACH=CONFIG]30247[/ATTACH]

[ATTACH=CONFIG]30248[/ATTACH]

[ATTACH=CONFIG]30249[/ATTACH]

So according to the seller in China, the unit I got is so called Version 3, which has air-con controls on both side of the screen, the one Ryan is using (apparently) is Version 1 which has less buttons BUT my unit came loaded with Android 4.4.4 Kitkat whereas Ryan's version 1 has Android 6 Marshmallow, go figure!

Functionality wise i assume is the same, i had highline RVC and needed the RGB converter box to make it work and it did.

So is this beast pretty much just plug and play or is more needed? I have a Passat Alltrack b7 and wonder if it will be an easy swap out?


Sent from my iPhone using Tapatalk

[909OGO]

It is and it isn't, depending if you have RVC or not. My car is a Passat B7 wagon so your Alltrack would have the same layout.

Sent from my MHA-L29 using Tapatalk

[sn809]

I would be a bit hesitant on using anything with Kitkat owing to a few security issues with it. Good work there. How much was yours 909OGO?

Waiting for a hands on video from you and rjt86.

Reply to rjt86-Thanks for the response. I suppose half hour for you means 2 hrs for me lol, I was going to use with waze as well, I have a B6 with no Nav, so the question about the gps antenna. I had a look on the website again, the OBD2 is a separate connector, not builtin.
Can you try doing a few things like getting into the climatronic service menu?


Looks great over all guys, although I am leaning a bit towards the "Old rjt86 version".

[Foxpuppet]

It is and it isn't, depending if you have RVC or not. My car is a Passat B7 wagon so your Alltrack would have the same layout.

Sent from my MHA-L29 using Tapatalk

Yeah we have factory RVC and parking sensors.


Sent from my iPhone using Tapatalk

[drjekl]

Very cool mod do you guys think its worth the $?

[909OGO]

Yeah we have factory RVC and parking sensors.


Sent from my iPhone using Tapatalk

You need to run power and ground to the RGB to AV converter, the rest is pretty straightforward.

[rjt86]

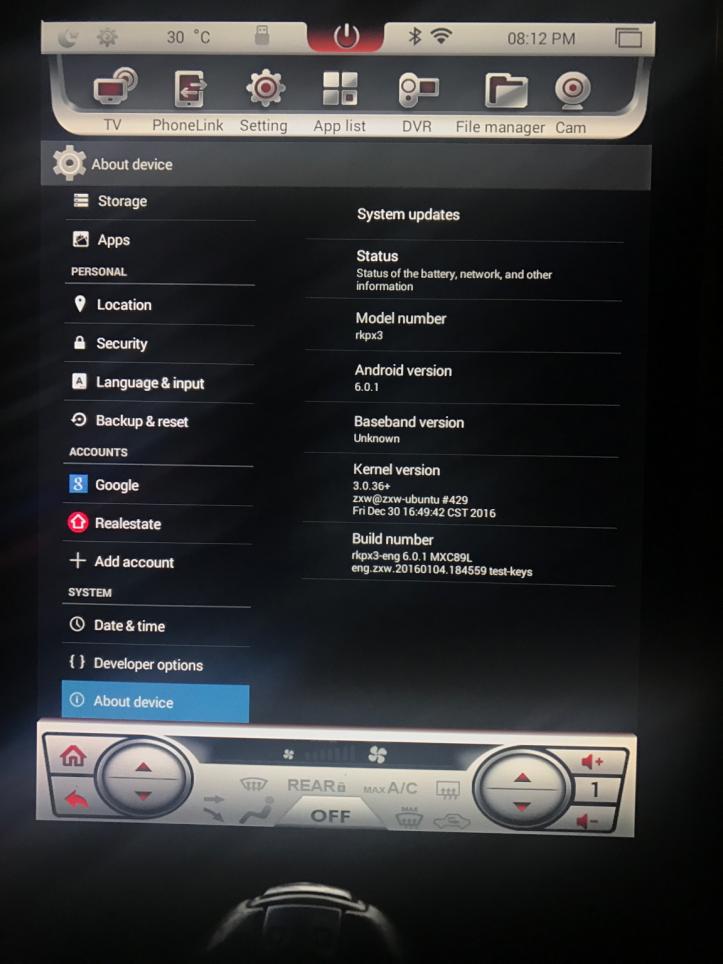

Android Version on mine 6.0.1, it's interesting that they say mines the older model but somehow running the newer software lol....

I personally prefer the cleaner look of mine and have asked if they can make a frame without any buttons on it on.

[rjt86]

I would be a bit hesitant on using anything with Kitkat owing to a few security issues with it. Good work there. How much was yours 909OGO?

Waiting for a hands on video from you and rjt86.

Reply to rjt86-Thanks for the response. I suppose half hour for you means 2 hrs for me lol, I was going to use with waze as well, I have a B6 with no Nav, so the question about the gps antenna. I had a look on the website again, the OBD2 is a separate connector, not builtin.
Can you try doing a few things like getting into the climatronic service menu?


Looks great over all guys, although I am leaning a bit towards the "Old rjt86 version".

You'll be right with the install, pull the trim off around your head unit, remove 4 torx screws, pull unit out then remove the quad lock, radio antenna, gps antenna and video plug if installed.

Pull out trim around climatronic, remove 4 torx, remove 3 plugs. Then install the new unit, it screws in to the 4 holes from the rns/rcd.

I doubt it has a climatronic service menu but can try it, I also need to see what vcds says about the new climate control unit...

Waze would work but it kills the radio app on mine , so I just stuck with radio plus google maps

[rjt86]

Very cool mod do you guys think its worth the $?

I think it's worth it for the $, however it could be made a lot better if they take on our feedback.

[thedriver]

Great job to the early adopters.

Not for me, I am going Discover Media.

I noticed the Discover Media doesn't look like it supports DAB+ for Australia, but admittedly I was looking at a VW UK site. Have you got a link to an Aussie version?
