Mk6 Golf Acceleration & Performance Data

[zbeasty]

I normally have things on a Saturday morning but as its school hols on the dyno day I'm going to try to get a day pass off the wife and come over. Will be good to compare a few different R's and mods on the same dyno and same day.

[Fab_R]

I had a friend install the Milltek for me which saved some $$$, I didn't get a chance to go to WSID tonight as I've been sick with the flu for the past two days but I plan on going next Wednesday, let's hope it doesn't rain!!

I've completed all the stage 2+ mods on the car so keen to get it out on the strip...

I actually wasn't going last night. My earlier post was to see if we had anybody was going to have a run. Looks like nobody ran.
I wiil be going back the drags for another try.
I've not made any additional changes to my car other than the S3 intercooler but have a Milltek TBE going on this weekend then I'm off to the DYNO DAY on the 16th.

Cant wait to see what you guys run next week with the latest mods...im excited lol.

Im going to the Calder Street Meet on the 16th April..

Lets hope both of these nighs are very cool....

[REXman]

I thought I would share an interesting link I found of a modded Golf R.

B&B Gives VW Golf R 362hp | anytuning.com

It does 0-100 in 4.8 secs, and has had quite a few mods done to it.. looks like an equivalent of a STG 3 or there abouts.

[REXman]

PS I finally saw that MOTOR Tuner episode of the S3... that thing farken hammers!

[schoona]

PS I finally saw that MOTOR Tuner episode of the S3... that thing farken hammers!

Robbie's? Yeah it hooks!

[Corey_R]

I thought I would share an interesting link I found of a modded Golf R.

B&B Gives VW Golf R 362hp | anytuning.com

It does 0-100 in 4.8 secs, and has had quite a few mods done to it.. looks like an equivalent of a STG 3 or there abouts.

Yeah, that's B&B's equiv to Stage III. That's a damn good time for a manual!

[dave_r]

does that qualify as a stage 1 ?? Call it whatever you like I say

All this stage 1/2/3 stuff is annoying hehe. Can we just say what they have?

tune
tune/dp
tune/dp/hpfp
etc

Did some launches in the wet on the weekend and managed to spin all 4 wheels briefly on one take off

I tried some wet weather runs the other week. Most times it still gets away with minimal fuss but there were a few times where all 4 spin and it squirms around a bit!

[Beena]

DISCLAIMER: I'm not out to prove anything, upset anyone or generally make a fuss. I'm doing this all for interest! My car makes 170kW ATW as per the recent dyno day and I'm happy with that!

So, I went out again to my 'track' this arvo (paved road on private property) with my old school RaceTechnology AP22 and my GTech in the car.

Unfortunately the track is uphill slightly and I only got 1 run in - so the results may be a bit skewed. (I forgot to stop the logging at the end and ran out of space on the AP22... It can only record for 60sec at 0.01s intervals - I should have slowed it down!)

Interestingly enough, the data seemed accurate compared to my (non-rollout) figures from the Gtech. The rollout is adjustable in the AP22. It was set to trigger at 0.01g and record 100 times a second. I unfortunately ran out of space before completing a qtr mile, but was happy with the result recorded anyway!
The AP22 can output to excel - a feature currently lacking in the GTech.

The data is there for everyone to see, but I'll explain the images:

1. The usual speed/distance/time graph, with some data attached.

2. A comparison to Motor's figures - what interests me is that mine is slower at the start, but equals by about 50kph and is faster from there! A bad launch maybe? More fuel/weight?

3. Longitudinal G-Force as reported by the AP22

4. Power (calculated obviously - using it as a relative measurement) compared to G-Force, trying to see how launch control manages the launch and how the shifts perform. I'd like to compare to a non-launch-control launch.

5. Power (calculated with input of CdA, Rolling resistance, weight) vs time

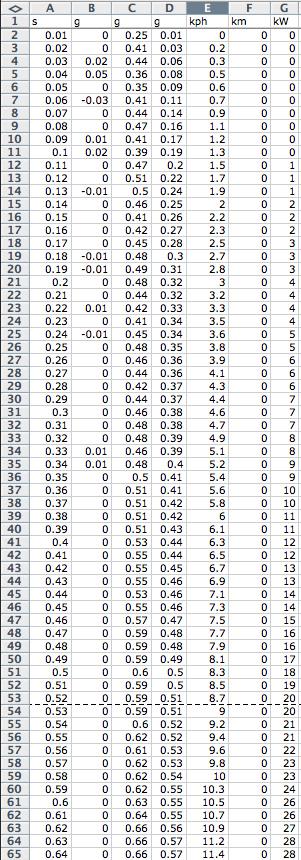

6. Just a sample of the raw data! We have time, lat g's, long g's, smoothed g's, speed, distance, power.

In other news... I'm selling my 2 month old GTech! As you can see, the engineer in me loves data so I'm going to buy a VBOX which can satisfy my odd cravings.
Details here: http://www.vwwatercooled.org.au/f24/...tml#post648255












Screen shot 2011-04-10 at 9.51.09 PM by LWACD, on Flickr

[VW Central]

Good job! I wouldn't mind trying out this private track of yours

I'm not trying to stir up anything here, but the Performance VBox that was used in Motor mag is the most accurate measurement and is the industry standard. I think it is kind of pointless comparing the two using different performance tools. It's kind of like comparing a Rolling Dyno to a Hub Dyno

[Beena]

Good job! I wouldn't mind trying out this private track of yours

I'm not trying to stir up anything here, but the Performance VBox that was used in Motor mag is the most accurate measurement and is the industry standard. I think it is kind of pointless comparing the two using different performance tools. It's kind of like comparing a Rolling Dyno to a Hub Dyno

Not quite most accurate... they use a PerformanceBox - 10Hz, 1xGPS engine etc, the 100Hz VBOX 3i would be the most accurate!

The AP22's have been extensively tested in the past to optical and drag strip timings (they are a bit old to have been tested against GPS stuff) and proven to be within 2-3% or even less with tilt/roll values set more accurately. Good accelerometers can be extremely accurate - after all, they've been guiding missiles and space shuttles for a lot longer and with more accuracy than basic GPS! It really takes RTK GPS to be much more accurate. We always found accelerometers gave better results in most cases than normal civilian GPS - but that was not a car application and we were aiming for cm accuracy. One big advantage for the AP22 is 100Hz resolution instead of just 10Hz. Of course a big disadvantage is that accelerometers can suffer if the road has gradient changes over the length. The requirement to be still at the beginning is also a pain.

Anyway, I feel it's accurate enough for some fun analysis - no lives on the line here! I'll test it out against the VBOX when mine arrives...

More that happy to head out for a day of VBOX logging etc at some stage if you'd like Dean - I'd love to see how that beast of yours manages to hook up!

[VW Central]

Not quite most accurate... they use a PerformanceBox - 10Hz, 1xGPS engine etc, the 100Hz VBOX 3i would be the most accurate!

The AP22's have been extensively tested in the past to optical and drag strip timings (they are a bit old to have been tested against GPS stuff) and proven to be within 2-3% or even less with tilt/roll values set more accurately. Good accelerometers can be extremely accurate - after all, they've been guiding missiles and space shuttles for a lot longer and with more accuracy than basic GPS! It really takes RTK GPS to be much more accurate. We always found accelerometers gave better results in most cases than normal civilian GPS - but that was not a car application and we were aiming for cm accuracy. One big advantage for the AP22 is 100Hz resolution instead of just 10Hz. Of course a big disadvantage is that accelerometers can suffer if the road has gradient changes over the length. The requirement to be still at the beginning is also a pain.

Anyway, I feel it's accurate enough for some fun analysis - no lives on the line here! I'll test it out against the VBOX when mine arrives...

More that happy to head out for a day of VBOX logging etc at some stage if you'd like Dean - I'd love to see how that beast of yours manages to hook up!

Cool, we can borrow Lucas's VBOX for the day. Let me know when your free I'd worry about your clutch, I have upgraded my clutch pack hahah

[Corey_R]

Good job! I wouldn't mind trying out this private track of yours

I'm not trying to stir up anything here, but the Performance VBox that was used in Motor mag is the most accurate measurement and is the industry standard. I think it is kind of pointless comparing the two using different performance tools. It's kind of like comparing a Rolling Dyno to a Hub Dyno

Yep... as Beena said. The "Performance" VBox is RaceLogic's "consumer" model. It's what they consider to be the G-Tech of their range. It's also what they consider to be as accurate as the G-Tech (After the roll-out thing is taken into consideration - RaceLogics words, not mine).

I don't think anyone here is enthusiastic enough to spend several thousand on the full blown VBox though...

[Guy_H]

Hey Beena,

Good data!

We just purchased a RaceChrono Pro Welcome to RaceChrono

It has 10mhz setting for acceleration / deceleration & 5mhz for circuit data, but importantly it gives us good red / green display if we are up or down on sector splits. It also has the advantage of being able to be remotely mounted.

Anyway - who wants to guess what the difference is between it & our V box mounted in the same car for the same runs?

[Corey_R]

+/- 0.05 seconds

[ferret]

Post my latest 1/4 mile times in the motorsport thread, but in summary

Run 1 - 13.307
Run 2 - 13.230
Run 3 - 13.079
Run 4 - 12.969

http://www.vwwatercooled.org.au/f51/...-20920-16.html
