Lift kit for t5s

[ozgti]

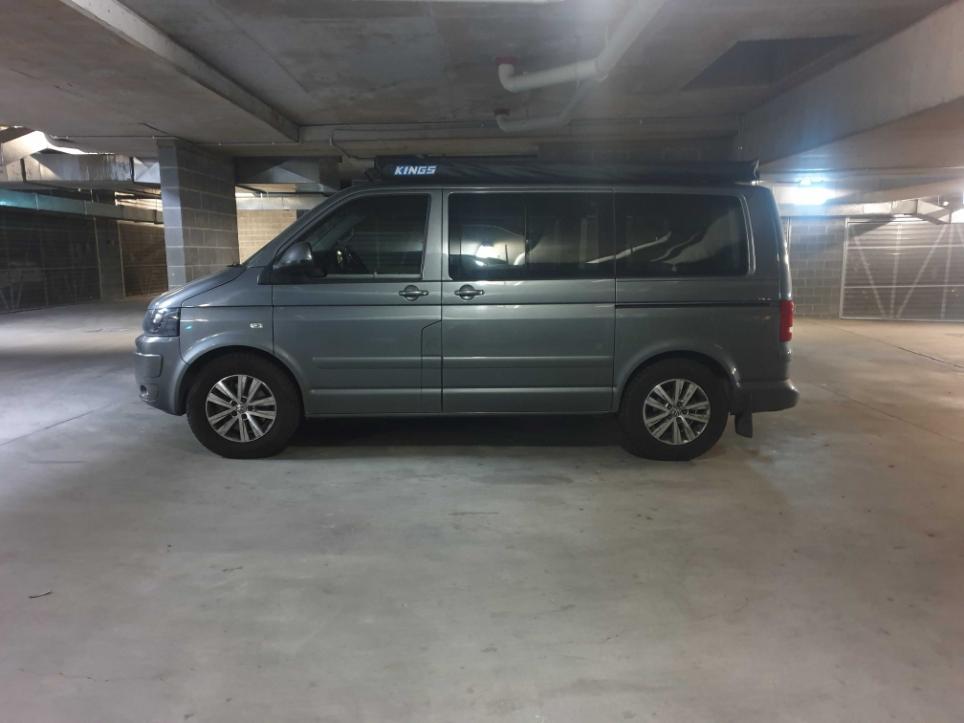

Before and after.
245 65 17 on et 55 17x7 stock wheels.

King springs +35mm
Kvf19
Kvrr18hd
Still under 2.1m, but I doubt I'll get under 2.0!

Sent from my SM-G960F using Tapatalk

[Transporter]

....and now some nice off road wheels and snorkel.

[ozgti]

Quick question... Will t6 hub carriers fit on a t5? Ie t32 fit on a T30? I have t32 front struts but have a T30 front. Are they interchangeable?

Sent from my SM-G960F using Tapatalk

[Markee]

I believe you can fit the the T32 hubs as they are part of a GVM upgrade to get the van to 3200kg, I think Bryn has this done to suit the mods he did to his van?

[ozgti]

Hmm. Are normal t5 struts the same as the 4motion?

Sent from my SM-G960F using Tapatalk

[Markee]

Hmm. Are normal t5 struts the same as the 4motion?

Sent from my SM-G960F using Tapatalk

They should be, as long as they're for a T30 and not a T32.

[ozgti]

So the lengths are the same?

Sent from my SM-G960F using Tapatalk

[Markee]

So the lengths are the same?

Sent from my SM-G960F using Tapatalk

yes.

7E5-413-031/C / 7E5413031C - Standard B4 Front Gas Shock Absorber T5 2003–2015, T6 2015 on (Excludes 1BH / T32 Chassis) - 22-140098, WC413T5004, - WC413T5004 :: Just Kampers Australia

[Bryn23]

I can’t offer any info as I ordered in a T32, so I didn’t need to retro fit hubs.

As for GVM, the Seikel maxi HD kit on my van allows for a 3500kg GVM upgrade, if you are in Europe😂.

But I am under 3200kg anyway, so it doesn’t matter, and as far as I know, no one has tried to get a 3.5t gvm upgrade here.

[ozgti]

The t32 hub swap might have to wait. I've found a pair of used front struts that will go in. Just need top mounts and control arm bushes.

Sent from my SM-G960F using Tapatalk
