ScanGauge II

[Funkdancer]

Hey,
Following up on my earlier posts in this thread, my 2nd unit designated for my Polo just arrived @ work. It was ordered Sunday a week ago. Pretty quick delivery; exactly same experience as last time.

The whole purchase w/delivery etc clocked in at exactly AUD$199.95 on my Mastercard. It was ordered from http://www.scangauge.com - just ignore the bit about them not delivering outside of USA/Canada.

I'll set it up for my drive home for work, make note of whether there is indeed a proper turbo boost reading and will try to post pictures by tomorrow night.

[shaneth]

Sounds good Funkdancer. Also please tell us if it gives the correct speedo reading as well please. Look forward to seeing what you think as i would be interested if it does.

[Funkdancer]

First of all, it does not report the boost

Whilst the MAP figure is appearing in my Euro, it's blanked out in the Polo. Other than that it works very well. The ECU is actually reporting a speed which is 3-4% faster than real; i.e. I had to dial it down by 3-4% in the SG.

My tyres are around 35-36PSI though, this might have something to do with it. In the Euro at the same PSI however the speed is darned nigh spot on.

I haven't gotten the good GPS out yet though, so relying on the roadangel at the moment. The Roadangel EVO's GPS is nowhere as good as that of the Garmin. I'm at a -4% correction now and it's probably a toss between that and -3%.

Fuel usage is reported different; SG2 says it is a bit higher than what the Polo's computer says it is. This might be a function of some conditioning required, I need to tell the SG when I've refueled - which I'll do tonight, and then next week when I refuel again I'll be able to adjust the percentage it is calculating by (the SG will tell you how much fuel it thinks you put in, and then you adjust it up or down - and it will learn from that).

Very important to always update the SG when refueling, otherwise things related to remaining tank mileage go a bit/completely out of whack.

Other than that, installation is a complete snap, it blends beautifully into the cockpit, looks awesome with backlighting set to blue. Will have to do something about the cables, at the moment the spare cabling is just sitting bundled up in the long coin/mobile phone tray under the wheel.

Photos to be provided soon.

[Timbo]

Thanks for this. Am looking forward to photos and also would be grateful if you could report exactly what parameters it reports/monitos from the Pog's ECU

[Spec83]

Funkdancer - the reason the MAP figure appears in the Euro and not the Polo is that the polo uses a MAF sensor...

The Accord Euro use a MAP sensor on the K24 to measure the pressure difference in the intake plunum AFTER the throttle body... The polo on the other hand uses a MAF to meter the airlfow BEFORE the throttle body.

There are pro's and con's for both systems... i prefer a MAP sensor to a MAF (they tend to be more reliable)... if you want to see boost you will have to tap a gauge into the little line leading to the wastegate

[Funkdancer]

Ah, thanks for that, Spec
A gauge would be much more useful anyway, I don't think you should be looking down at a small LCD too much under heavy accelleration.

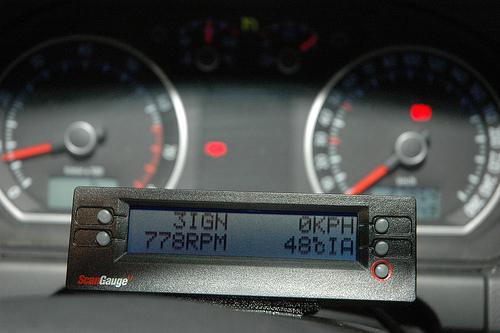

Ok, some photos are uploading at the moment, the above is the first (shot with flash). Note that for the other darker shots, if any photographers are here, yep that's some dust on my sensor.

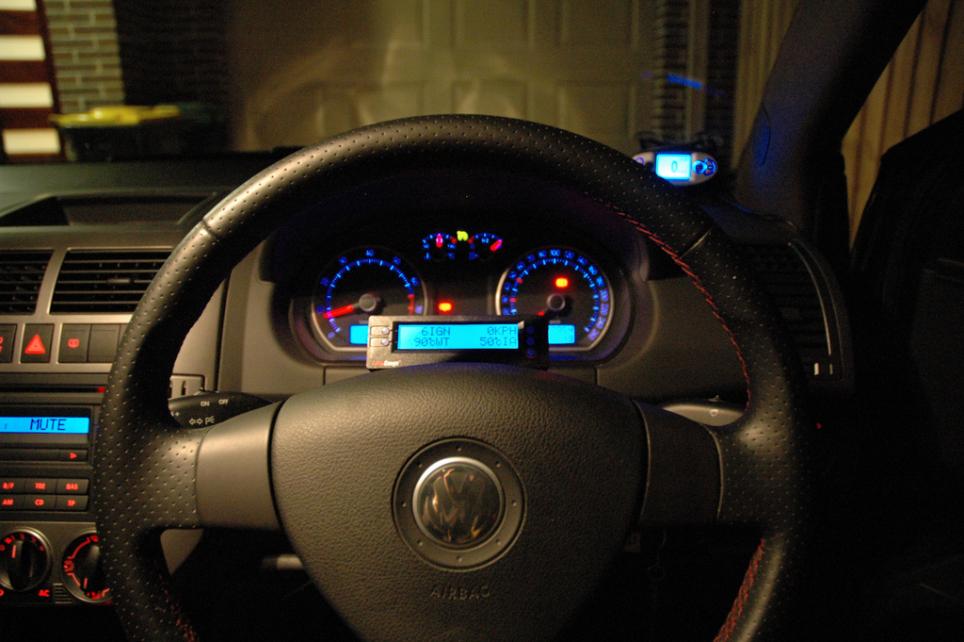

For normal driving the SG2 lines up perfectly in the middle of the dash LCDs. I only have to lean slightly to either side to see their outputs. As such, it fits better than in my Euro where the info LCD is obscured unless sitting up.

The data supported in the SG2 are ALL of the modes reported in the v2 manual on http://www.scangauge.com/support/ , or more specifically http://www.scangauge.com/support/pdf...anual_2_51.pdf , EXCEPT for that of MAP and FPR.

I've quoted the settings in below, both for my own reference and your benefit.

CLSD LP OPEN LP
Fuel system loop status
This indicates when the oxygen sensor is being used to control the mixture (closed-loop) and when it is not (open-loop). It is usually closed except when the engine is cold or under full throttle acceleration.

FIA CIA
Intake-Air-Temperature
Temperature of the air going into the engine. At highway speeds, this will typically be a few degrees higher than the outside air temperature. At idle or low speed, it may be much higher in temperature than the outside temperature due to the low air-flow into the engine and the high under-hood temperatures warming it up.

FWT CWT
Water Temperature Water/Coolant temperature.
A vehicle with a 50/50 mix of coolant and water will not boil over until about 265 degrees F at sea level. This will be reduced at higher elevations.

FPR
Fuel-Pressure
This is the fuel pressure from the fuel pump. Very few vehicles report this.

GPH LPH
Gallons-per-Hour, Liters-per-Hour
Fuel consumption rate in the selected units. This is sensitive to throttle, gear and loading changes.

IGN
Ignition timing
Shows the amount of timing advance (or retard). The more advance there is (or less retard), the better for fuel economy and power. The limit is set by the octane of the fuel, the intake air temperature, and the load on the engine. A lower than normal amount of advance for similar temperature and speed could indicate too low an octane of fuel is being used.

LOD
Engine Loading
This is a percentage of the maximum power available currently being generated. In some vehicles it is the maximum available at the present RPM.

MPG,KPG,MPL,KPL
Miles-per-Gallon,Kilometers-per-Gallon,Miles-per-Liter,Kilometers-per-Liter
Fuel economy in the units selected. This is updated about every 2 seconds (Normal Rate). This means that the fuel economy is for the previous 2 second period. Small changes in throttle position or load will show almost immediate changes in fuel-economy.

MPH,KPH
Miles-per-hour,Kilometers-per-Hour
Speed in the units selected.

MAP Manifold-Absolute-Pressure
This indicates the pressure in the intake manifold. It is reported in pounds-per-square-inch (PSI) by default but can be changed to kilo-pascals (KPA) if desired. At sea level, the pressure at wide open throttle can be as high as 15 PSI or 10kPA. If the engine is turbocharged or supercharged, the pressure can be higher than this.

RPM Revolutions-per-Minute
The RPM of the engine.

TPS Throttle-Position-Setting
In some vehicles, a closed throttle will read 0 and full throttle will read 100. Other vehicles will have a higher value than 0 for a closed throttle and an open throttle value less than 100.

VLT Battery Voltage
Normal running battery voltage is between 13 and 15. When the engine is off it should be between 11 and 13. Voltages higher than 15 volts can damage batteries and electrical components. Voltages below 13 when the vehicle is running could indicate poor charging of the battery. Voltage below 11 when the engine is off could indicate a low battery charge or a shorted battery cell.

I'm gonna watch the F1s now, if anyone wants me to report on certain values please let me know and I'll answer as well as I can. I'll make another post with more shots when they're done.

[Funkdancer]

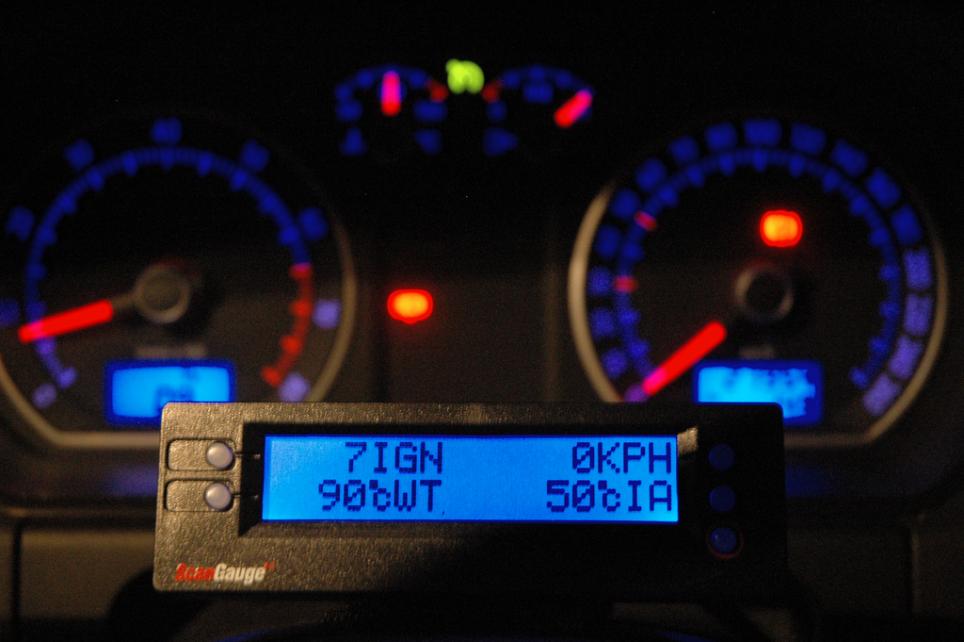

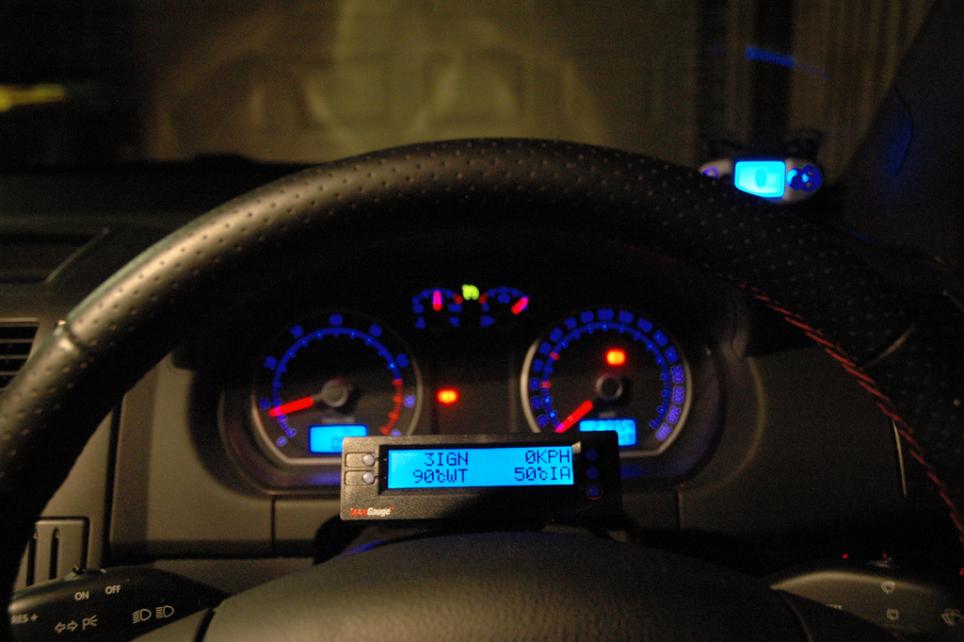

Ok, here we go. The LCD background colour is programmable, and the blue matches that of the Polo almost to a dot.

Hope you won't find these too large; hate posting thumbnails when using a good camera.

[Kai]

If the police dont like you they will Defect you

[Funkdancer]

Why is that?

[gpk_gti]

nice gauge!
you cant be defected for steering column mounted gauges or in dash gauges.you can be defected for on top dash mount or pillar mount as you can hit your head in a accident ,im lead to believe from my copper mates.
love the LED readout!!! keep up the great postings funk!!!

[Kai]

nice gauge!
you cant be defected for steering column mounted gauges or in dash gauges.you can be defected for on top dash mount or pillar mount as you can hit your head in a accident ,im lead to believe from my copper mates.
love the LED readout!!! keep up the great postings funk!!!

QLD police will do you for it.

I got done for it

Apparently ill hit my head on it in an accident!

[Funkdancer]

Thanks GPK

I really don't think I'll lose any sleep over this, as otherwise just about every free standing sat nav that's ever been sold would result in a defect notice (!). <Insert chuckle sound here>

Anyway the Roadangel is great in that it lets me know about school zones and stuff like that. Red light cameras and speed light cameras are a bonus. I typically don't speed, but I want to make pretty sure that I don't drift over for a +5 kph "money shot".

(If anything I'd like police to default the thousands of drivers who can't be darned to ensure they've got two functional front lights etc...)

EDIT: Kai, geezes, what did you have on your dash that warranted defecting? Sounds to me like a 1 in an million chance thing that won't be motivated by otherwise clean driving. Apropos, I've offset my emissions and have the sticker to prove it.

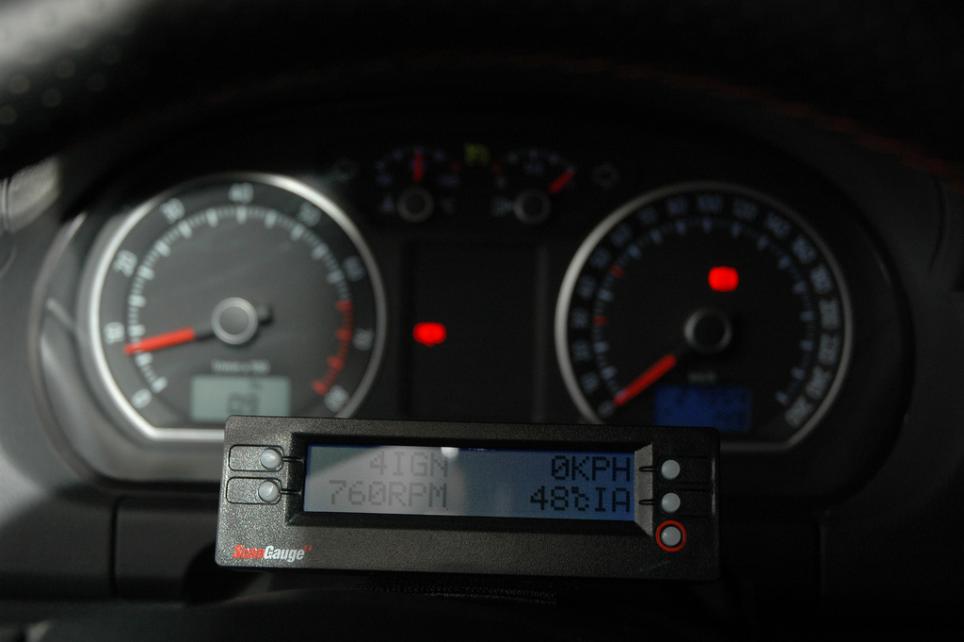

Bugger it, here's another couple of shots from this Saturday...

[shaneth]

This is off the QT site

Visual display screens
DVD screens, television receivers, visual display units
and so on may be installed in a motor vehicle. No part of
the image on the screen may be visible to the driver
from the normal driving position unless the screen
cannot be operated when the vehicle is moving or it is a
driver’s aid (e.g. in-car navigation). As well, it must not:
• obscure the driver’s view of the road
• impede the movement of anyone in the vehicle
• interfere with occupant restraint systems like head
restraints, seat belts and airbags
• increase the likelihood of injury to anyone in
the vehicle or
• be fitted if any part of the image on the screen is likely
to distract another driver.
Accessory gauges
Any additional internal or external gauges must:
• not interfere with the field of view of the driver
• not produce glare to the driver
• not have the possibility of an oil pressure line, or
similar, breaking with pressurised fluids spraying
onto the windscreen
• be fitted in such a way to reduce the risk of injury to
the vehicle occupants or pedestrians.

[gpk_gti]

QLD police will do you for it.

I got done for it

Apparently ill hit my head on it in an accident!

Your age and the way you treat the officer also can make you get a defect.trust me ,I KNOW! if I was young and on my "p's" for example ,I wouldnt be driving a hot looking or a boosted car as they attract the wrong attention?!! sounds like the cop was just looking to bust your chops over anything.
is your head going to go through your steering wheel and hit the gauge?or did he mean it will fly off and hit your head? hahahahahahahaha

actually you are right funk! what about all those GPS systems mounted to the windscreen,arent they a defect ,and will fly off in a accident?,knock on wood,but the less hair you have on top of your head and the rounder you are,cops dont look for defects on your machine!!! hehe

[Timbo]

Thanks Funk, that's very useful and the pictures are great.

Pity the device can't get more info from the Pog's OBDII port like boost, but that's a VAG issue as I understand it.

As for the police -- this is clearly a driver aid. If anyone is picked up on it, as above, I reckon there's other reasons

I regularly have a Tom Tom mounted, and sometimes a G-Tech...but then I'm an old fart
