Fuse box picture

[Suffolk]

Hi members, i was wondering if someone could either post a picture or send me a picture of the fuse box behind coin box?

I had a fuse blown the other day, so i called VW roadside assist and they sent me RACV. He replaced a fuse and since that day car has had fault in catalytic converter light up (red).

Today went to switch on and this was no longer a problem, now it's engine coolant flashing red?

Since RACV came to look at the car i've had problems everyday.

Did a scan and had heaps of faults. I think he might have put some fuses in the wrong place.

Scan Results:01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: Malfunction 0010
16-Steering wheel -- Status: Malfunction 0010
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
22-AWD -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
37-Navigation -- Status: Malfunction 0010
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: Malfunction 1010
56-Radio -- Status: Malfunction 0010
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

[Bambazonke]

Pm your email address and send me your vehicle details as per the white sticker in your boot or service manual booklet and I will email you a PDF file of the fuse allocations

[Transporter]

125 TSI from 5.09 (also for TDI 103kW)

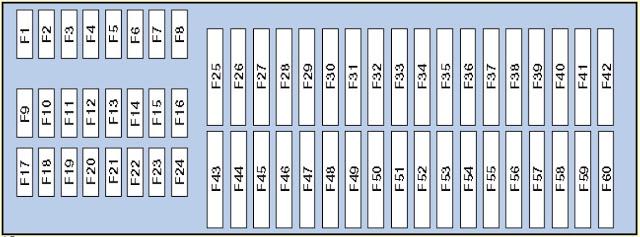

Fascia 1


Fuse, (Amps), Circuit
F1 -
F2 -
F3 -
F4 -
F5 -
F6 -
F7 -
F8 -
F9 (5A) Supplementary restraint system (SRS) control module
F10 (10A) Four wheel drive control module
F11 (5A) Parking aid control module, self-parking system control module
F12 (10A) Gas discharge headlamp control module (LH)
F13 (5A)
ABS/ESP system, AC system, anti-dazzle interior mirror, heated windscreen washer jets, seat occupation control
module, transmission control module (TCM), reversing lamps, engine management system
F14 (10A)
ABS control module, engine control module (ECM), heated seats, power steering control module, suspension
control module, trailer control module, AC control module, instrumentation control module, CAN data bus
gateway control module
F15 (10A)
Auxiliary heater, data link connector (DLC), parking brake control module, engine management, headlamp
direction control module
F16 (10A) Gas discharge headlamp control module (RH)
F17 (5A) Instrument panel
F18 (10A) Mobile telephone control module, multimedia control module
F19 (10A) Steering column function control module 2
F20 (5A) ABS control module, AC system, transmission control module (TCM)
F21 (15A) Door function control module, left rear, door function control module, right rear, multifunction control module 2
F22 (5A) Alarm system, multifunction control module 2
F23 (10A) ABS/ESP system, AC system, data link connector (DLC), rear view camera control module, headlamp switch
F24 (10A) Door function control module, driver, door function control module, passenger
F25 (20A) Transmission control module (TCM)
F26 -
F27 -
F28 (40A) AC control module, auxiliary heater
F29 (15A) Rear screen wiper motor
F30 -
F31 (20A) Auxiliary power sockets, cigarette lighter
F32 -
F33 -
F34 -
F35 -
F36 -
F37 -
F38 (10A) Steering column function control module 1
F39 (20A) Headlamp washers
F40 (15A) Trailer control module
F41 (15A) Trailer control module
F42 (20A) Trailer control module
F43 (25A) Sunroof control module
F44 (25A) Parking brake control module
F45 (25A) Heater blower motor, heated rear window
F46 (30A) Door function control module, driver, door function control module, passenger
F47 (30A) Door function control module, driver, door function control module, right rear
F48 (15A) Fuel pump (FP)
F49 (20A) multifunction control module 2
F50 (25A) Parking brake control module
F51 (40A) AC/heater blower motor control module
F52 (30A) Seat heater control module
F53
(20A/30A)
Headlamp washers
F54 (30A) Auxiliary power sockets
F55 (15A) Lumbar support adjustment
F56 (15A) Suspension control module
F57 (25A) Sun blind control module
F58 (1A) Trailer warning lamp
F59 (20A) Multimedia control module
F60 -

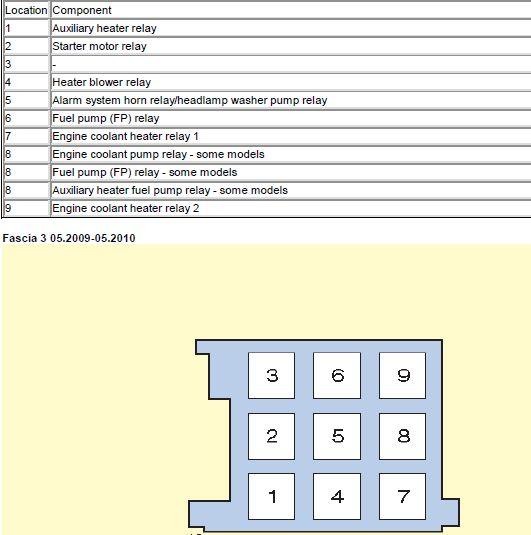

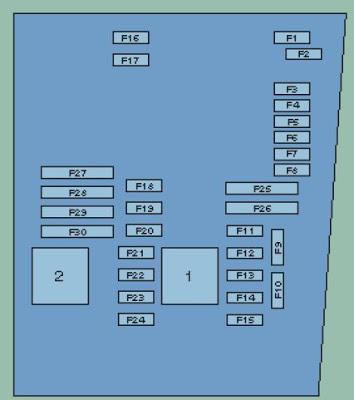

Fascia 3




in engine bay



Fuse (Amps) Circuit
F1 -
F2 -
F3 (5A) Multifunction control module 2
F4 (30A) ABS/ESP system
F5 -
F6 (5A) Instrumentation control module, steering column function control module 2
F7 (40A) Ignition main circuits
F8 (25A) In-car entertainment (ICE)
F8 (25A) Voltage converter
F9 (5A) Mobile telephone control module
F10 (5A/10A) Engine control module (ECM)
F11 (20A) Auxiliary heater control module
F12 (5A) CAN data bus gateway control module
F13 (15A/30A) Engine control module (ECM)
F14 (5A) Engine management system
F15 (5A/10A/15A) Fuel pump (FP), AC compressor clutch, engine management system
F16 (30A) Multifunction control module 2
F17 (15A) Alarm system horn
F18 (30A) Audio system
F19 (30A) Windscreen wiper motor
F20 (10A) Engine management system
F21 (10A/20A) Engine management system, fuel pump (FP) control module
F22 (5A) Clutch pedal position (CPP) switch
F23 (10A) Engine management system
F24 (10A) Engine coolant blower motor control module, engine management system, engine coolant heater
F25 (40A) ABS/ESP system
F26 (30A) Multifunction control module 2
F27 -
F28 (50A) Glow plug control module
F29 (50A) Electric seats
F30 (50A) Ignition switch circuits
Location Component
1 Petrol: Engine control (EC) relay 1
1 Diesel: Ignition main circuits relay
2 Petrol: Engine control (EC) relay 2
2 Diesel: Engine control (EC) relay

[Suffolk]

Once again, thanks to all. Will go through all the fuses to see what's wrong. Will. Also be booking my 30,000km service.
Thank you!!!
