I am investigating fitting electric brake controller to my Tig (Tekonsha Prodigy)
Discovered some had reported anomalies in electrics.

Iafter throughly testing the Dealer installed ( official ) electrics I can report that VW have fluffed the conversion cable from the euro 13 plug to the 7 pin flat

pIN 2 on the euro (rear fog lamp) is wired to pin 5 on the 7 pin which should be either SErvice brakes or permant 12V ,

THe permanent 12V on pin 9 of the euro socket is fully implemented (tested with multimeter


!3 pin euro





Tiguan handbppk[
Pin 1 Left indicator Left indicator
Pin 2 Rear fog lamp Rear fog lamp
Pin 3 Earth Earth
Pin 4 Right indicator Right indicator
Pin 5 Right tail lamp Right tail lamp
Pin 6 Brake lamp Brake lamp
Pin 7 Left tail lamp Left tail lamp
Pin 8 Reverse lamp Reverse lamp
Pin 9 Permanent power Permanent power
Pin 10 Switched supply (for fridge) SPARE
Pin 11 Earth for pin 10 SPARE
Pin 12 No current allocation SPARE
Pin 13 Earth for pin 9 Earth for pins 9 to 12

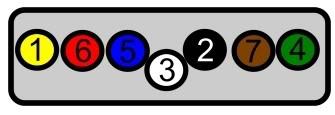

&pin fFlat




Pin STD Connnection==================---------VW
1 *Left indicator---------------------------------------------Left indicator
2 *Auxiliary or reversing light----------------------------- reversing light
3 *Earth------------------------------------------------------Earth
4 *Right indicator--------------------------------------------Right indicator
5 Electric brakes/permanent 12v--------------------------Rear FOG lamp
6 *Stop light------------------------------------------------Stop light
7 *Tail and registration plate----------------------------- Tail and side left & right with diodes to prevent feedback to car circuits

FWIW

I would like to fit the tekonsha prodigy rf unit but it not ADR approved for Aus as far as i can find out.

net best appears to be the P3


wonder if VW Aus would consider do a recall on the "defective" adapter cables as
they don't comply to standards. Therefore may be illegal

[donl]

that is interesting as I have a Prodigy brake controller (90185) on my Tig to tow the camper. The controller was fitted by an auto electrician through the caravan dealer. The only issue I get is that the park lights down the side of the camper are always on even when the lights are turned off.

I had the Tig looked at recently for another fault and the dealer said that the fault was with the brake controller and that the caravan dealer should be able to sort it out. I haven't been in a hurry to sort this out yet, but looking at your post sounds like my problem is in the conversion from the 13pin to 7pin flat.

[Tedhaggie]

Did they install the brake controller "power"with a separate CONNECTOR or via the 7pin ?

[Tedhaggie]

EDIT-
A look at the Euro Standards show that adapter is wired according to the 7pin ROUND socket -12N std pin numbering tranferred directly to the 7pin aus flat. (which is correct for the 7 pin round AUS std). but the euro 7pin is a different plug,. ( has some reversed sex pins as far as i can tell. VW aus have been lazy and just used the UK adapter in Australia. instead of building the correct one .

I
