  • #46
    Hi

    Can you I get the Melbourne radio station logos

    Comment


    • #47
      acn i get the melbourne radio station logos

      Comment


      • #48
        Re the album art, I've noticed that even though some tracks don't have their own album art embedded in the ID3 tag, the HU still shows some random covers about them, although more generic ones like "Electronica", "Rock" etc. which does not always agree with the track that is playing. Must have some default covers which assigns to empty tracks when it thinks it's right to do so (others just play completely empty).

        PS. And while I'm at it, is it possible to search through the SD card's library? (Discover Pro) I have thrown in a 128gb SD and naturally, it is a bit of a PITA to quickly locate what you want to listen to sometimes.
        Last edited by ringo; 12-09-2016, 08:26 PM.

        Comment


        • #49
          Big Set of transparent Sydney AM / FM radio station logos - tested on my MK7 MIB 2

          Hi All

          This is my first post, Day 3 for my MK7 GTI

          Forgive me if I got this post in the wrong place

          When setting up the radio for Sydney, I did a search for all the stations I could find and created transparent logo's for the Golf.

          There are 33 files here with some stations have a few different logo's

          I have tested these on the car and they all look good (Transparent icons have the same white wave background from the MIB II)

          Enjoy

          Download them from my OneDrive share

          Comment


          • #50
            Black Background?

            Does anyone know how to make logos with a full black background?

            I've created my local station logos with a transparent background that is then displayed with a white/gray background by MIB II.

            However, one local station sent their logo automatically via the "Station Logo Service" of HD Radio (USA). Regardless of how it got there, the logo they sent has a full black background, even when expanded (i.e. selected):

            Click image for larger version

Name:	kOBbM9M.jpg
Views:	1
Size:	28.7 KB
ID:	1827639

            Unfortunately, I don't know of any way to get a copy of the logo file they sent to see how its done.

            When I create my own logo with a black background, it always has some white surround, regardless of the resolution I'm using (e.g. 400x240). Does anyone know how to create a logo with a full black background?

            Comment


            • #51
              Hi, I think the image you've found is showing HD radio (only available in the US?) which broadcasts digital station info too... I'll have a look a creating black background logos and post the results

              Comment


              • #52

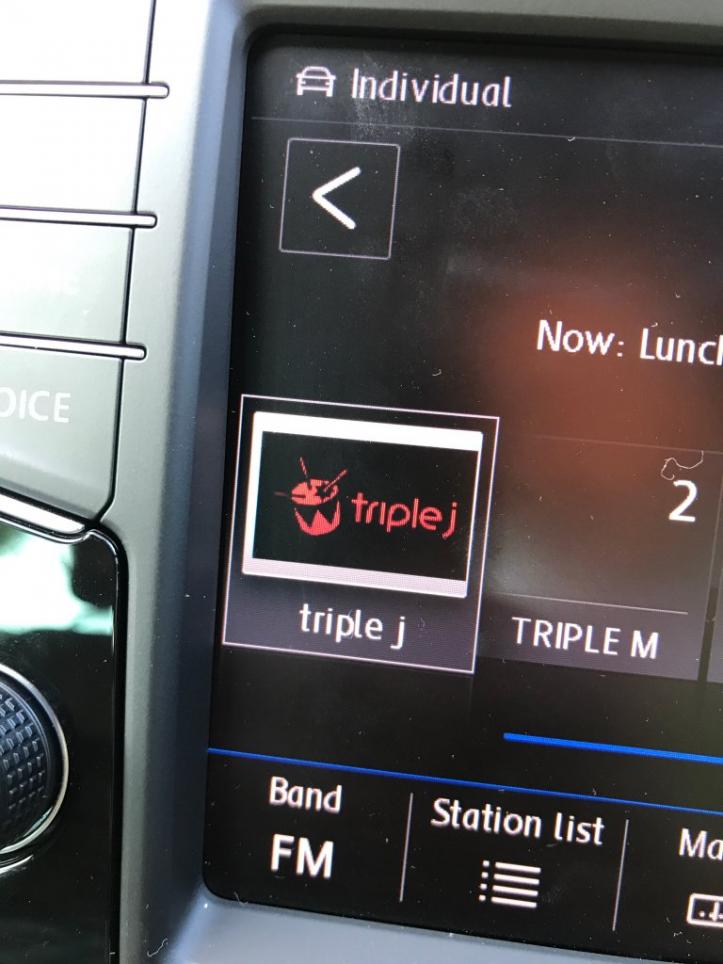

                Doesn't look that great. Looks like the systems puts up borders automatically. I'm sticking with the no logos look.




                Sent from my iPhone using Tapatalk

                Comment


                • #53
                  Hi, anybody had any luck with the new 9.2" Discover Pro? I just picked up MY18 Tiguan and followed half a dozen guides to load the Sydney station logos, but to no avail.
                  Using a USB stick and SD card, I can view the logos in the image viewer, but none show up in the settings in the radio app.
                  Tried resizing the images, including the size recommended in the manual (same size as last generation). Reformatted the USB stick in every available format, removed all the silly Mac hidden system files... I've run out of ideas.

                  Any suggestions? Cheers!
                  Tiguan Highline 162TSI | Indium Grey | DAP | MY18

                  Comment


                  • #54
                    Originally posted by spacemannz View Post
                    Hi, anybody had any luck with the new 9.2" Discover Pro? I just picked up MY18 Tiguan and followed half a dozen guides to load the Sydney station logos, but to no avail.
                    Using a USB stick and SD card, I can view the logos in the image viewer, but none show up in the settings in the radio app.
                    Tried resizing the images, including the size recommended in the manual (same size as last generation). Reformatted the USB stick in every available format, removed all the silly Mac hidden system files... I've run out of ideas.

                    Any suggestions? Cheers!
                    I had no problems setting mine up - select the radio as the main screen and then select settings button at the bottom right. Under the settings there is a station logos button. Choose that and the stations appear. Select the individual station and then choose the source where the logos are located. Pick the correct logo and the repeat for each individual station.
                    Indium Grey Golf 7.5 Alltrack 135tdi Premium - all options

                    Comment


                    • #55
                      Originally posted by Rooboy View Post
                      I had no problems setting mine up - select the radio as the main screen and then select settings button at the bottom right. Under the settings there is a station logos button. Choose that and the stations appear. Select the individual station and then choose the source where the logos are located. Pick the correct logo and the repeat for each individual station.
                      Thanks Rooboy, I tried that all again just now. Where it fails is the last step... I can see all the folders in the source, but it does not see any of the image files.
                      This is the new all glass Discover Pro, with capacitive buttons. I'm starting to wonder if there is a bug in the firmware. If you have the same model, can you please let me know the firmware version? Maybe I need to hit the dealer up for an update already.
                      Tiguan Highline 162TSI | Indium Grey | DAP | MY18

                      Comment


                      • #56
                        I have the same unit Discover Pro unit and when I select the folder all the logos appear. Part number is 5NA035045A,Hardware H54 and Software 1121. Radio database version is 1.9.1
                        Indium Grey Golf 7.5 Alltrack 135tdi Premium - all options

                        Comment


                        • #57
                          Originally posted by Rooboy View Post
                          I have the same unit Discover Pro unit and when I select the folder all the logos appear. Part number is 5NA035045A,Hardware H54 and Software 1121. Radio database version is 1.9.1
                          Thanks for that! Same here. I'll try copying the files from a windows system... maybe my Mac is the culprit.

                          EDIT: Fixed! I tried a few different USB sticks and found an old one that works... It seems the Sandisk USB stick and SD cards I was originally using were a bit fussy. Thanks again.
                          Last edited by spacemannz; 05-09-2017, 11:07 AM.
                          Tiguan Highline 162TSI | Indium Grey | DAP | MY18

                          Comment


                          • #58
                            Anyone happen to have updated ACT/NSW station icons for the new Mk 7.5 Golfs? By default its a black background which makes it harder for the station logos to look nice (i.e. transparent background over the previous white squares)

                            Comment


                            • #59
                              Worth a look here. How to add radio station logos to your VW or Skoda radio

                              Comment


                              • #60
                                Originally posted by generiK View Post
                                Anyone happen to have updated ACT/NSW station icons for the new Mk 7.5 Golfs? By default its a black background which makes it harder for the station logos to look nice (i.e. transparent background over the previous white squares)
                                Give this a go and let me know how it works

                                Imgur: The magic of the Internet
