Official Golf MK6 Picture Thread - 2nd Edition

[JaseVW]

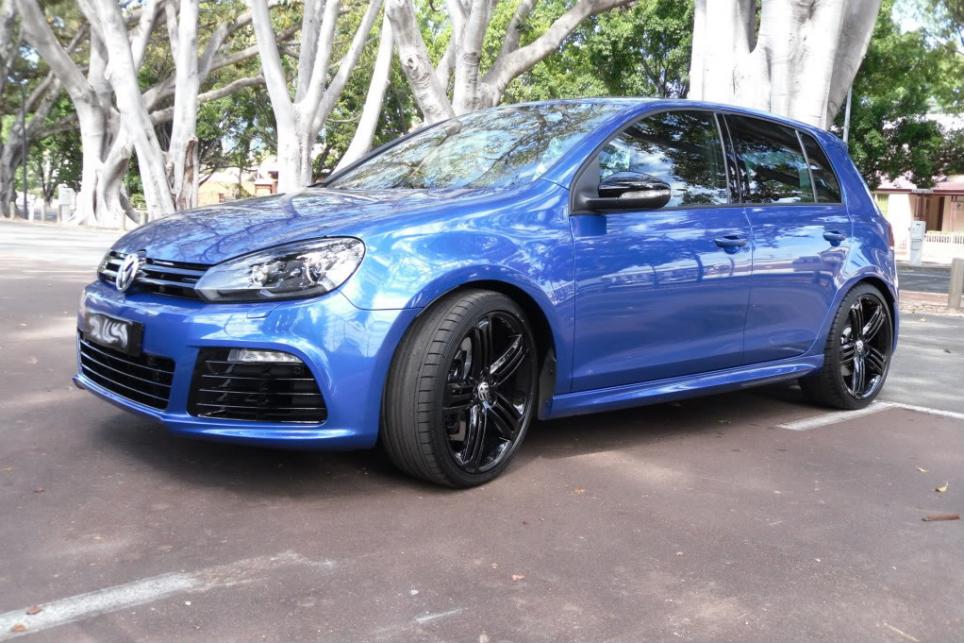

Picked up my Golf R 4 days ago... just wanted to share it with those interested. What an excellent car, well worth the 6months of waiting!

Hope these are not too many photos in one go.. will post more another day

[Mr_Bob]

Took the R down to Reflect Effect to get the Opti-Coat treatment

[Fab_R]

Installed my LED Licence plate lamps on the weekend.

They are a no fault set up and included the hardware to not cause issues.

They are a full replacement lamps.

Again, an iPhone pis so excuse the ****e quality.
The pic also shows a fair amount of flaring but they are not like this.

They look trick at night.

[Fab_R]

Better Pics taken tonight of LED licence plate lights:

[masev]

Thought it was time to post some pics - What a joy she is!!

Excuse the low quality shots....

[JaseVW]

More photos! :]

[elisiX]

If I had been patient JaseVW - i'd have an R exactly like yours.

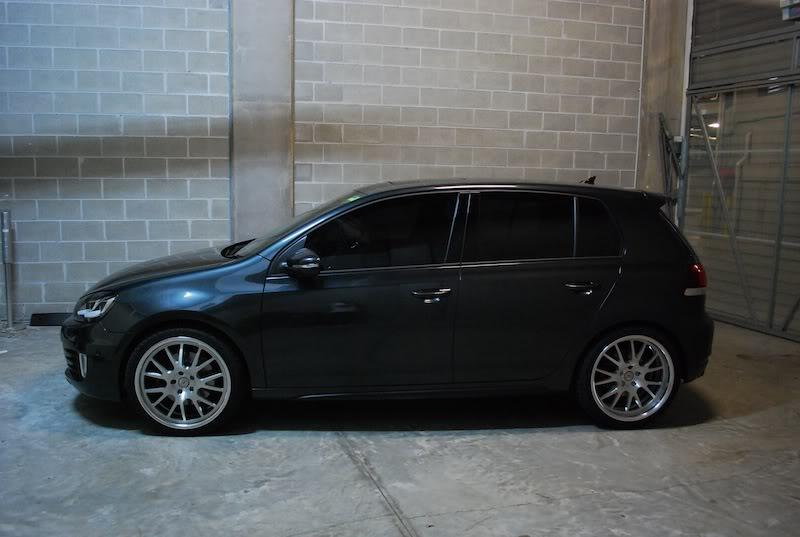

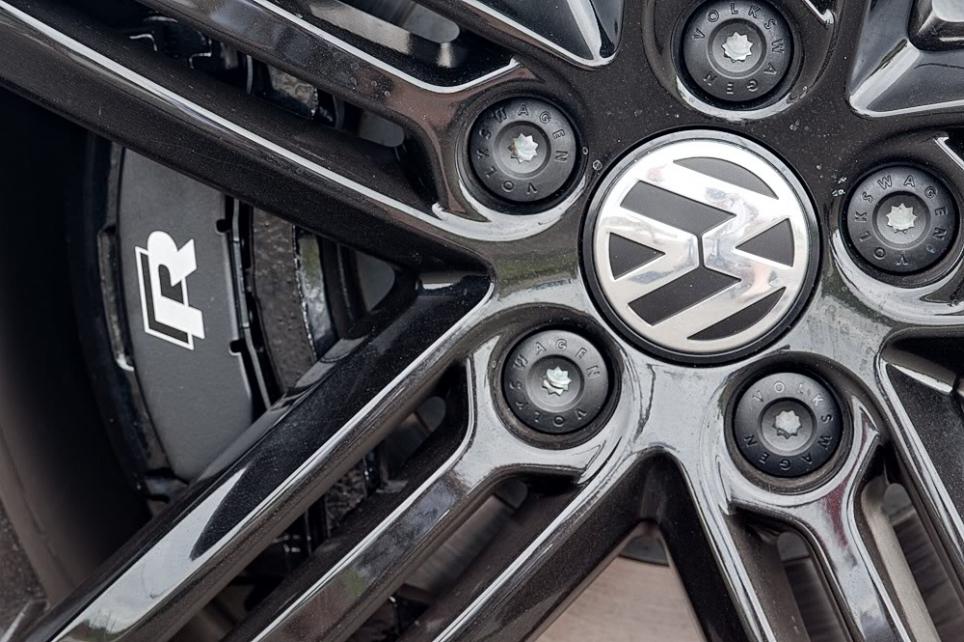

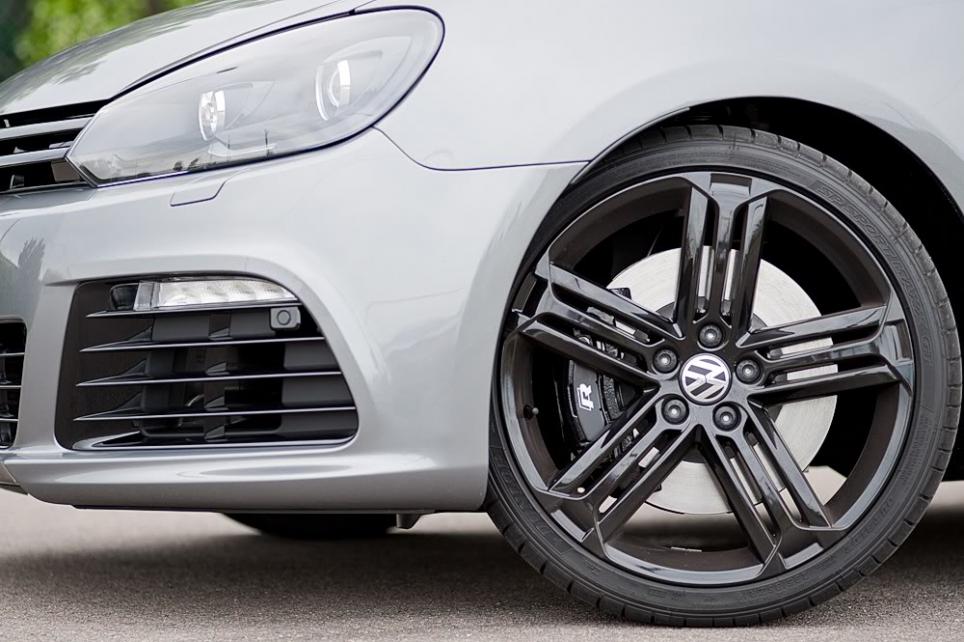

Just had my new wheels fitted yesterday.

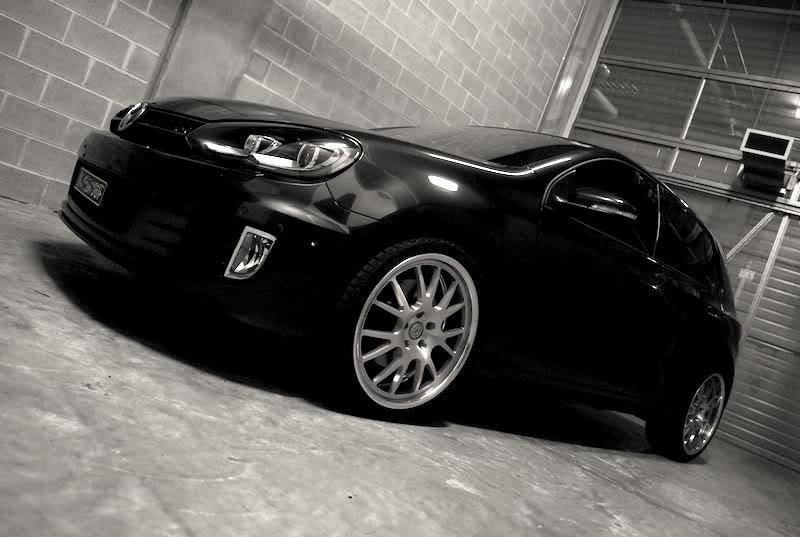

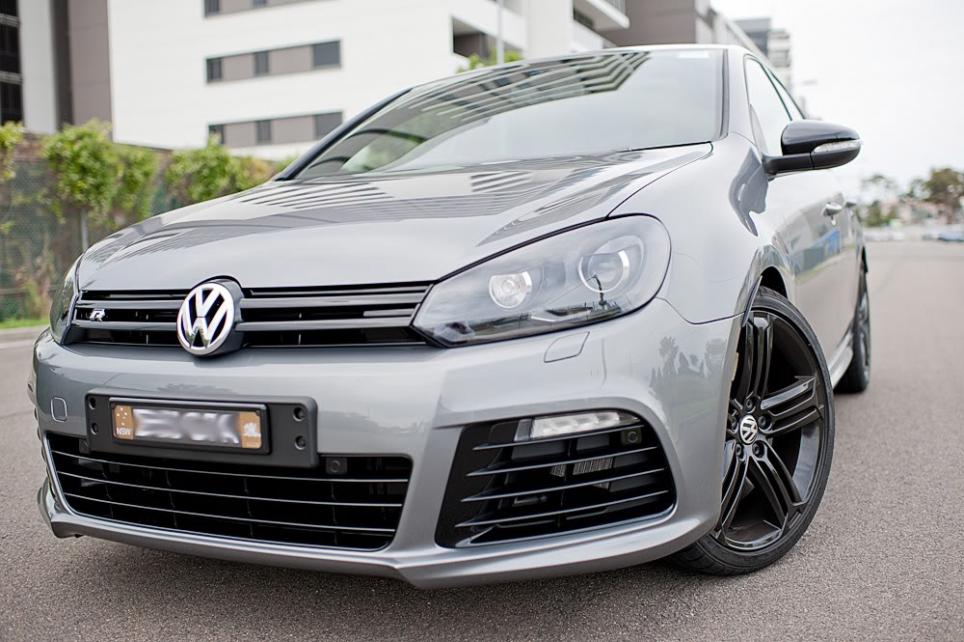

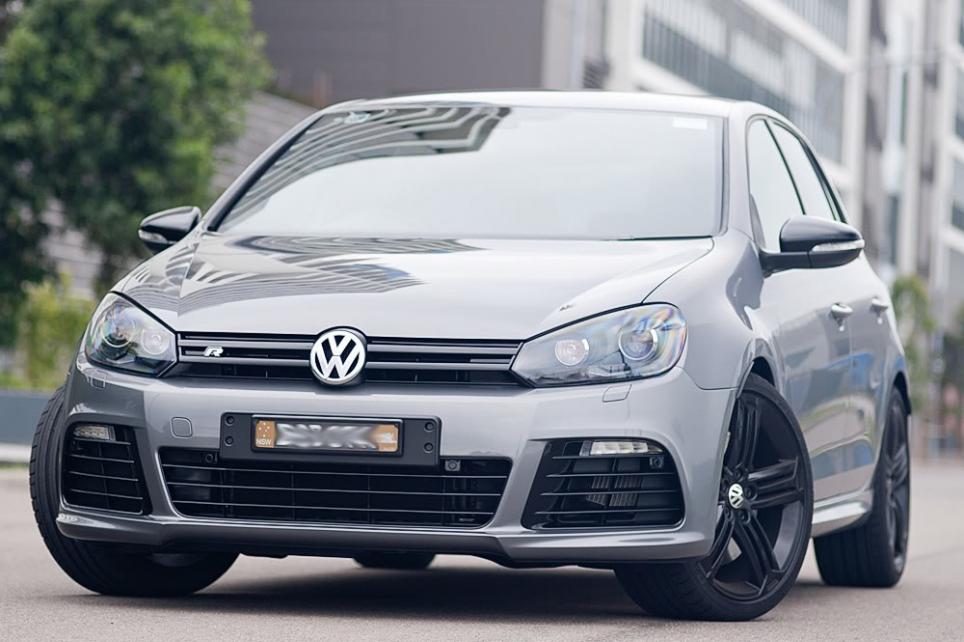

A couple glamour shots..




And straight off the camera - paint looks fantastic in this light.

[peedman]

Nice elisix....got any side on fender shots? and are you running 225/35?

[DAL344]

[DAL344]

[Corey_R]

So on the weekend I went around to my mate's place and we did some work on my R.
This included:
Installation of Lakin Plates brackets and covers on front and rear
Left side VW original equipment aspherical mirror glass
OSIR O-Rest
S2TPP DSG Paddle Shifters

We took photos of most of this... except for the DSG paddle shifters! Mostly cause the installation of them was a bit of a PITA and we forgot! They are SO worth it though!

The first photo is when we were setting up. I'd just removed the number plates which were secured by 3M Double-sided Clear tape, and I'd used eucalyptus oil to clean up the residue, and then Permanon to clear up the oil and "recoat" the paintwork:


Lining up the Lakin rear plate bracket was quite an anxious task thanks to the fact that there are no pre-drilled holes from the factory! (Thanks VW!). It's made worse by the fact that the plate area is NOT flat, and due to this, neither is the Lakin Plates bracket, and even worse, you then have a trapezoid surrounding. Anyway - two people makes this job easier. Just put masking tape around where you think the holes will be, then whilst one person holes the bracket, the other continually measures until you've got it exactly where you want, and then make the holes through the bracket. The bracket is attached via self-tapping screws, so we're really just making small pilot holes to ensure things go where we want them to.

Some people make their lives easier by just having the plate lined up along the bottom ledge of the bumper - but I wanted it more centralised just to make things more difficult!


Once the bracket is in place, it's then time to drill the holes in the top corners of the plate to attach it to the bracket via the cover:

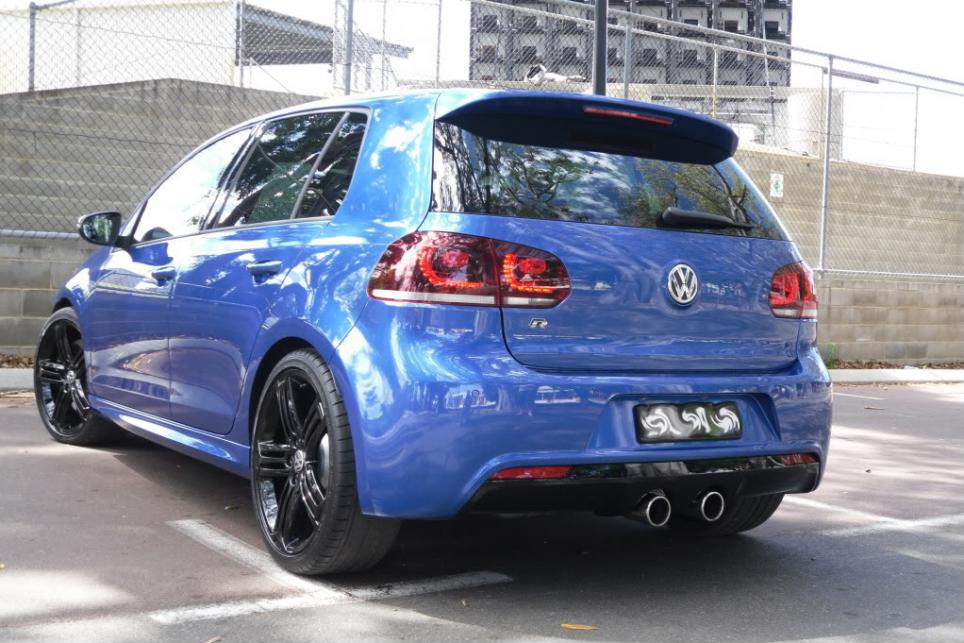

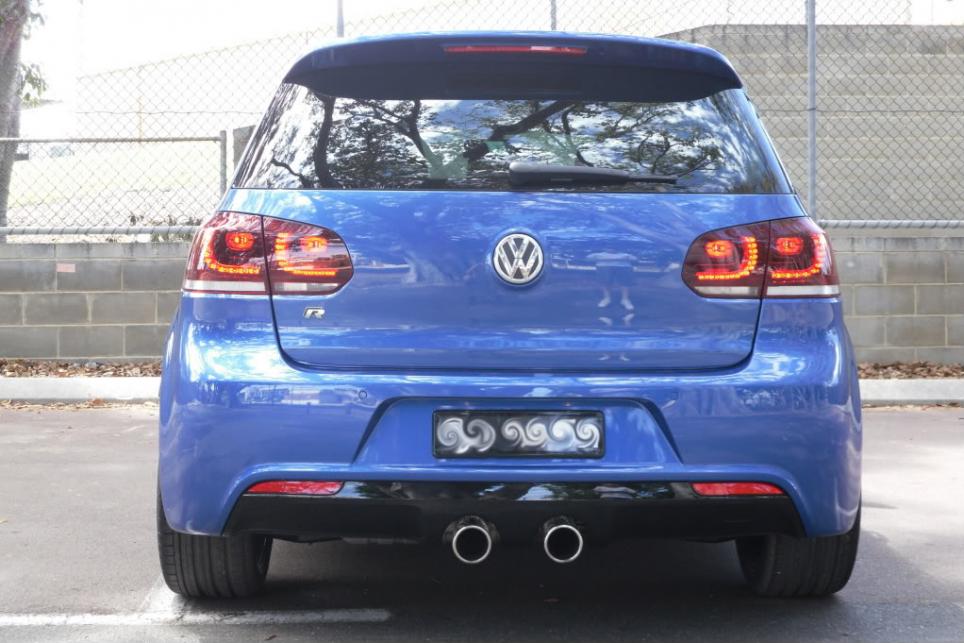

And the end result looks pretty good, imo:


Next up was the fitment of the front plate bracket. As you can see, I had some squished bugs on the front due to my drive to Lithgow (via Bells Line Of Road) and back (via Great Western Hwy) the night before. I'd cleaned up the area where the plate bracket was to attach. If you look carefully you can see that the 4 factory made holes are currently covered by the Ventureshield installed by Surface Tech:

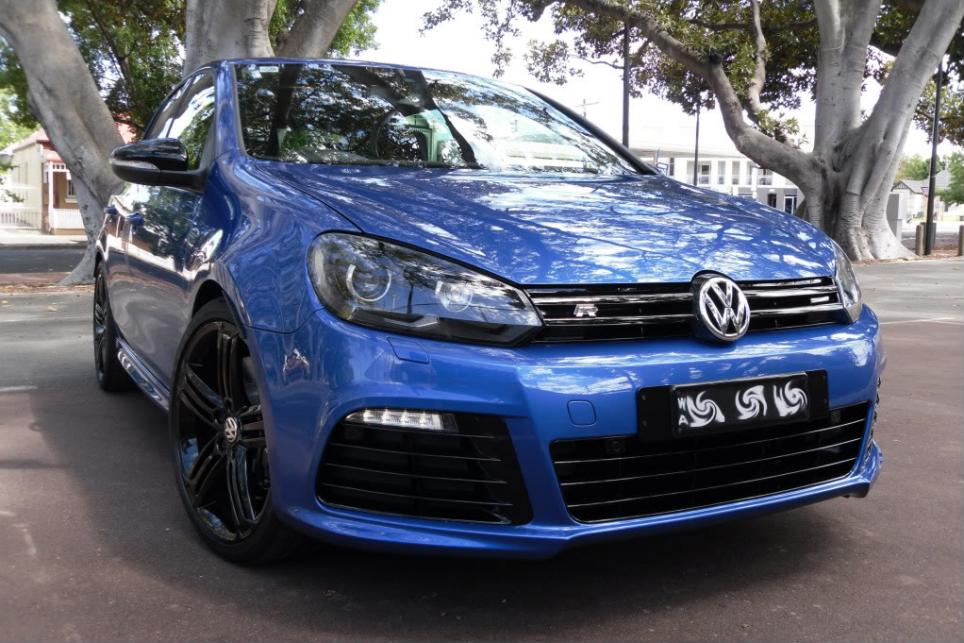

After slicing a + into the Ventureshield over each hole, and putting in the Lakin Plates supplied nylon screw plug spacer thingamybobs, the plate bracket and then plate and cover were on within 10 minutes:



We then did the left side VW OE aspherical mirror glass. Didn't think that was exciting enough to take photos at the time. Basically it's identical to the glass in the driver's mirror. I just adjusted the left mirror so that there was some space between it and the housing on all sides, then got my fingers (and nails) and pulled out the original mirror with a moderate amount of force. Then just unclip the two wires for the mirror heating, connect them up to the new mirror, and then push it into place with a mild amount of force. I'll take a photo myself at some point.

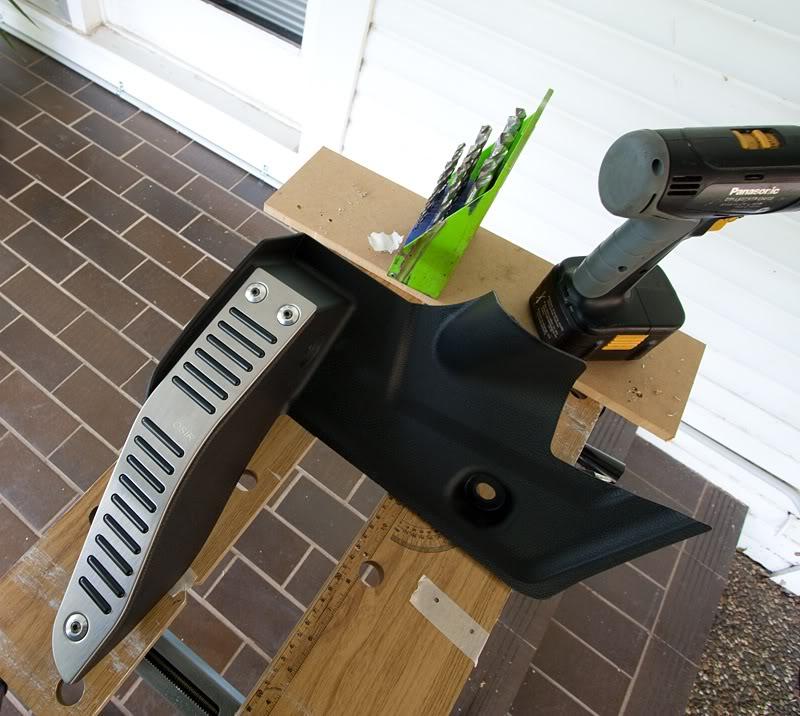

Next up, the OSIR O-Rest. This is secured with 3 self tapping screws. However, there is very little clearance for a drill to get in make the pilot holes so we decided to take the footrest and its attached trim out of the car. This is secured by a single allen key and a single flat blade screw:

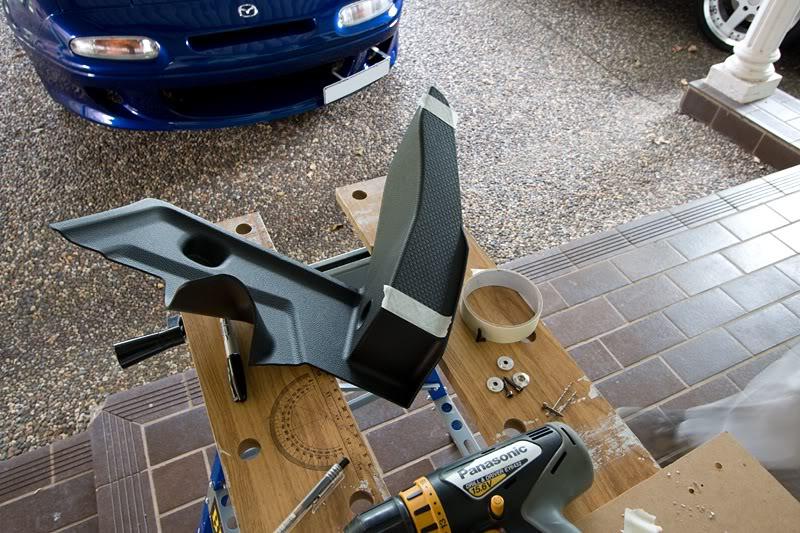

The OSIR O-Rest uses 3 self-tapping screws with allen key heads. So again, we just drilled 3 small pilot holes to ensure things line up how we want. I also put some strips of the 3M Double-sided clear tape under the two plastic pieces which make up the black inserts. I didn't remove the backing for the tape; it's literally just there to provide some pressure so the plastic doesn't rattle etc:

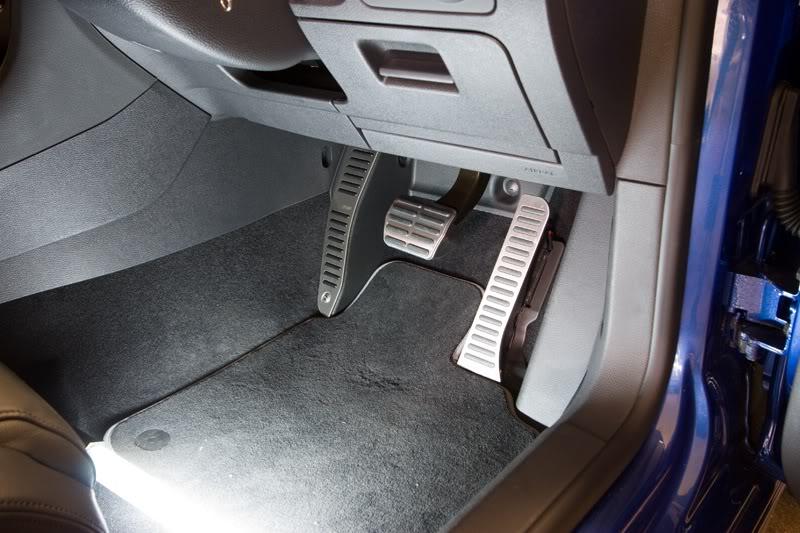

And here it is installed in the car:



Next up we did the S2TPP DSG Paddle Shifter installation. VW have really made the MK6 steering wheel difficult to dismantle! Some people report being able to do the installation on their MKV's on their own, but I would highly recommend anyone doing it on a MK6 to have a trusty and capable friend with them. We completely forgot to stop and take photos of each step, but I'll have some photos of the end result later.

Anyway, it was now evening and I was late for meeting my girlfriend and friends at the Carol's In The Domain, so we took one extra shot before I left:



Hope you like the photos guys.
I'll have my mate take some more photos after Christmas and once I've got the window tint done.

[Prodigy]

Thought i'd post up some pic's again seeing my first lot got lost in the other days 'Back to the Future' moment:

[Mr_Bob]

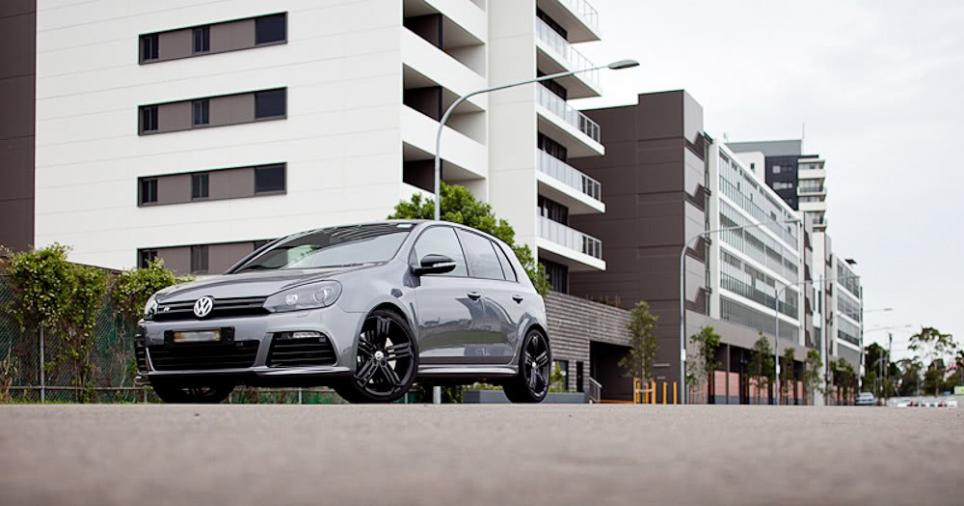

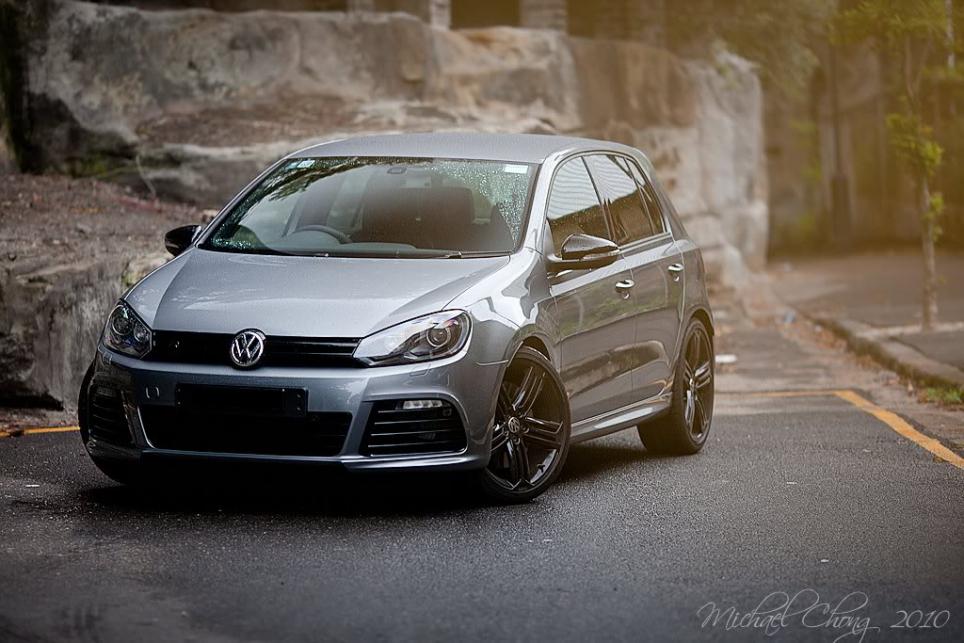

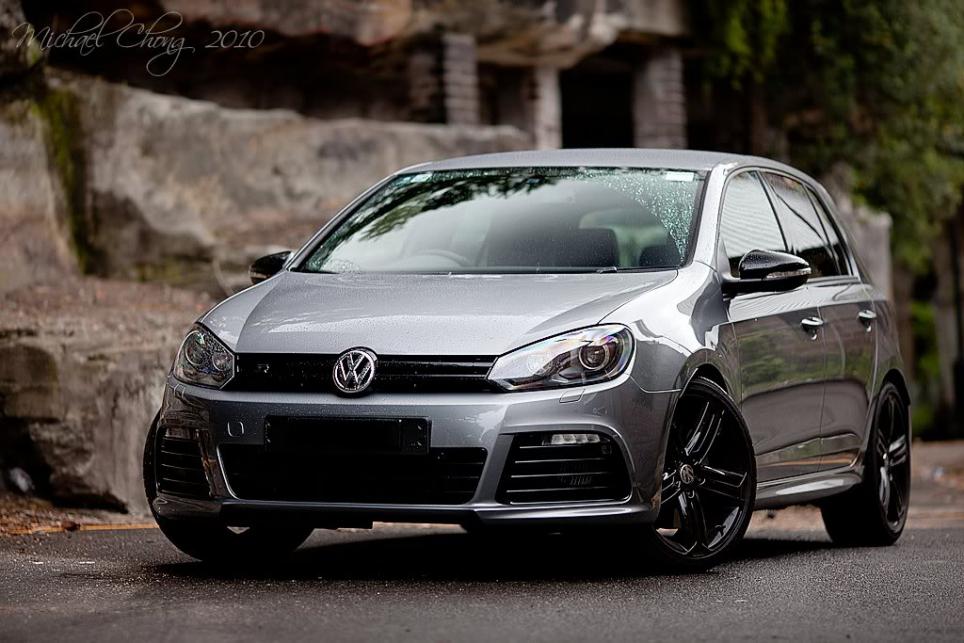

Met up with Daniel McKenna (D4NM4C) in Canberra to take some more shots.
Drive down was a bit hellish, with a 1.5hr delay on eastern distributor and M5,

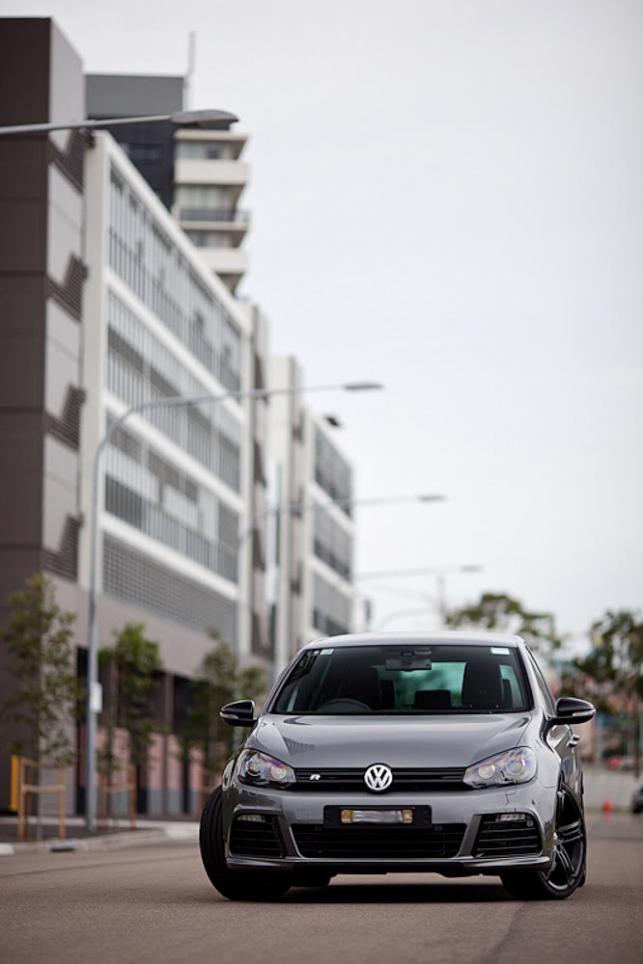

This is the first one, hot off the press... more pics to follow

[Mr_Bob]

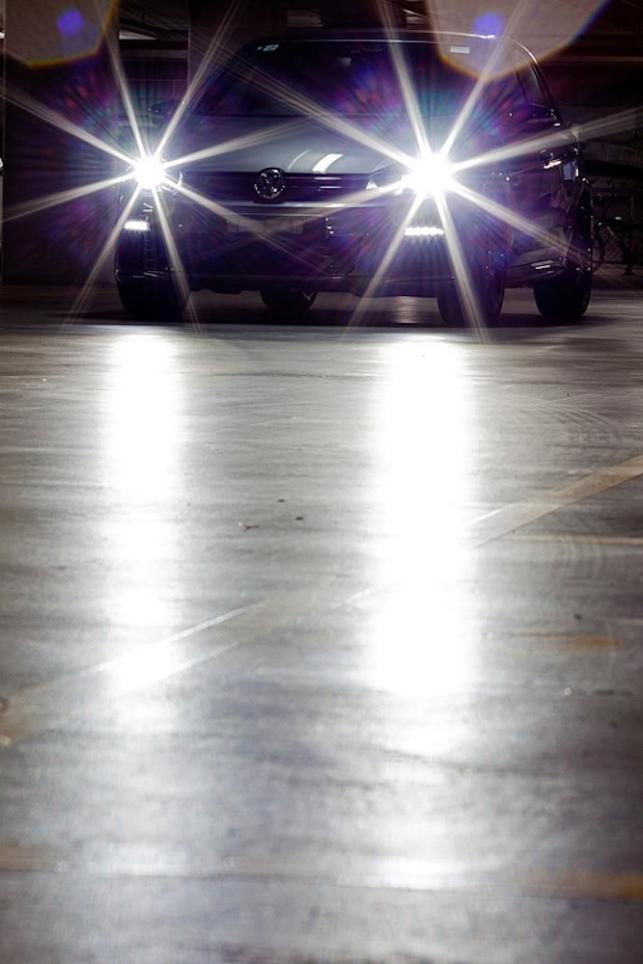

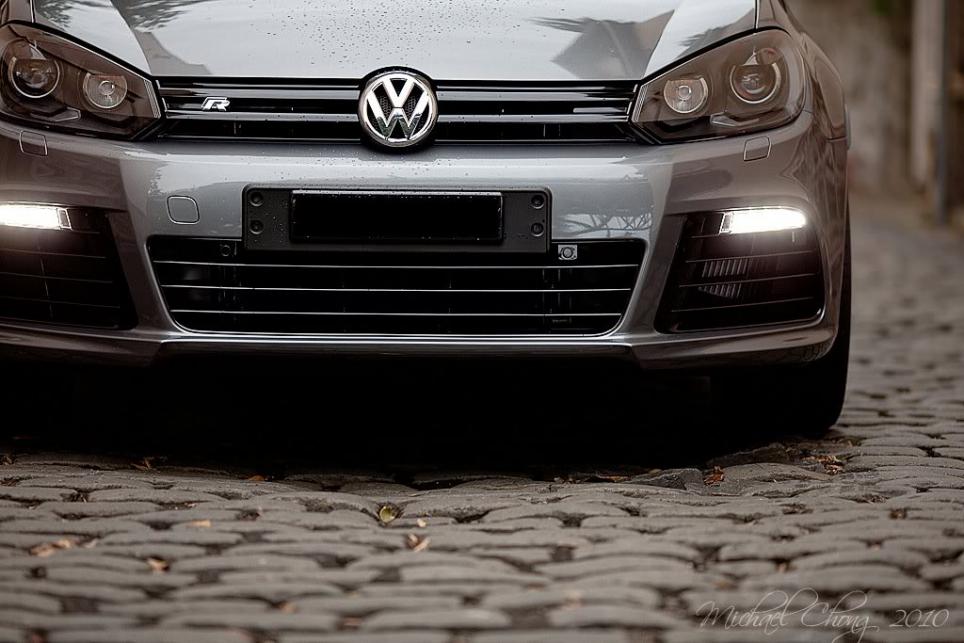

MOAR PICS!!
Thanks for the comments guys, i'll take credit for the subject matter, and pass the credit Dan for his uber camera skillz.

[driver19]

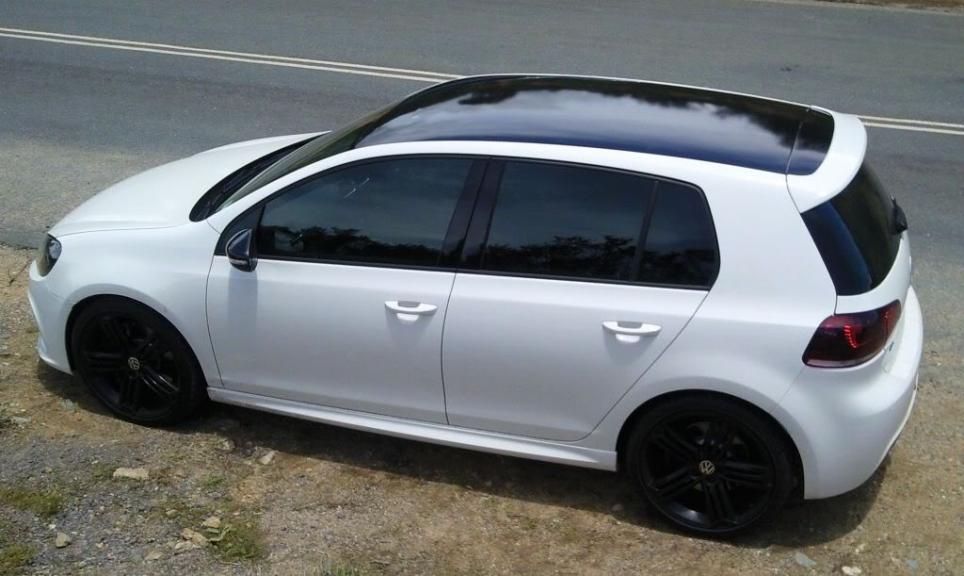

Taken me a while to get around to posting some pictures but here goes.

Before tinting, somewhere on the Pac Hwy


At Terrigal, after tinting and waxing.
