Fusebox B terminal part number/repair wire

[golfi_vend]

Hi

Does anyone know part number for this terminal? So many available.

[buzuki]

Cant quite tell from your picture, but the only difference in the wire is plating.

Try and see what your one is plated with, look like they might be standard ones

[golfi_vend]

im not meaning what plating i need (i know, normal, silver gold)

im retrofitting webasto and don't know the correct wire pn, with correct terminalsocket.

[grtuned]

In the remarks section of etka the numerals 1.5 means the wire Gauge scroll down I think 1.0 is most common but depends on what's being installed. The part numbers will give you gold or silver choices.


Sent from my iPad using Tapatalk

[golfi_vend]

Pic4 tells me 1.5 is correct.
But when looking at ...150E picture, it seems that it isn't correct shape for pin 20.

151e or 152e seems like more a fit.

Also remark has 1.0 and 1.5, what do they mean?

[grtuned]

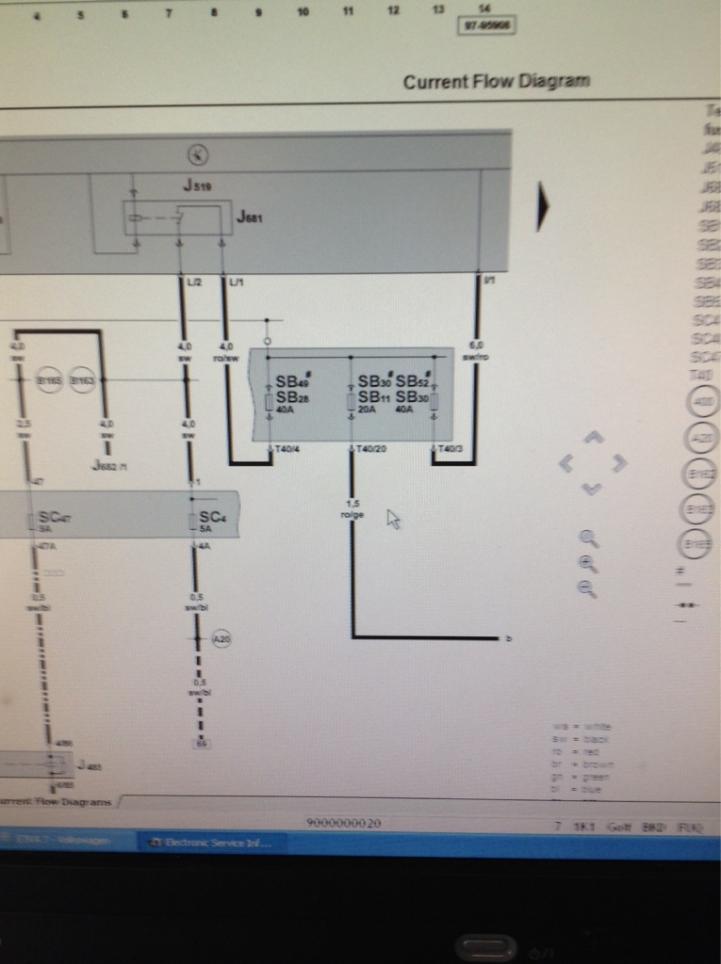

Look for T40/20 in the diagram! this is what I guess you need to find the terminal for the aux heater
The 1.5 means the wire gauge and the RO/GE is the color.
Problem is Etka will not give you a picture of the required terminal it only gives you an option of all the terminals that will fit the E-box, You need to know what the terminal looks like then make your correct option. My advise would be to remove terminal T40/25 see if it fits T40/20 as they look identical,if it does then you know what it looks like,then going from pictures on etka order the right terminal. I would be sticking with 1.5 gauge as described in the electrical wiring diagram.


Sent from my iPad using Tapatalk

[golfi_vend]

OKay this i understand, but why etka has two numbers in remarks. - Like for 151E, it has 1,0 and 2,8.

When looking at terminals only ones that have 1.5, don't even look similar to t40/20, they look more for t40/28 and so.

[grtuned]

Yep your right it can be confusing. If your using ETKA international this may be the reason. Try get some help at VW there ETKA is slightly different it may give you the right choice.


Sent from my iPad using Tapatalk

[golfi_vend]

Figured it out

No mather if is international or something else.

First number is wire crosssection etc 2.5, other number is terminal size 2.8.
I bought a half made webasto harness from a local vw guy. He has made the power part of the harness with 1.5 wire.
And reading from internet 1.5 til 2.5 use same terminals.
Also bought these from internet, if they arrive i can check if they fit.
Audi VW Skoda Seat Set of 6 Crimp Terminals Pins for Repair Wire 000979242E | eBay


These are too small for 1.5 wire.
Audi VW Skoda Seat Set of 6 Crimp Terminals Pins for Repair Wire 000979151E | eBay

[grtuned]

Always learning cheers. Makes sense now.

Hope it all works out post pics on your finished project.

[golfi_vend]

If it sits, then it fits.

[golfi_vend]

Words of progress.

Bought every need detail for install(including climatronic from mk6 and alot of other stuff).
You can see some bits from this pic. Including hoses, new washer tank etc... .

http://s28.postimg.org/w8oprgh8d/talveks.jpg

But when installing i ran into trouble. The Pipes wouldn't fit because of their shape, washer fluid pump hoses and wiring has to be customized and so on.

http://s7.postimg.org/eyee5a9qj/IMG_20140927_131857.jpg

Unfortunately i didn't have needed parts at the moment and layed it all back together. I already asked local vw guy to do install, cause i don't have another 10h to spend doing it.
