Disassembly of the Cluster

[ryana89]

Hello,

Planned on replacing/testing the oil pressure and water temp warning LED's in the Golf today. Had no problems taking the dash apart and removing the cluster.

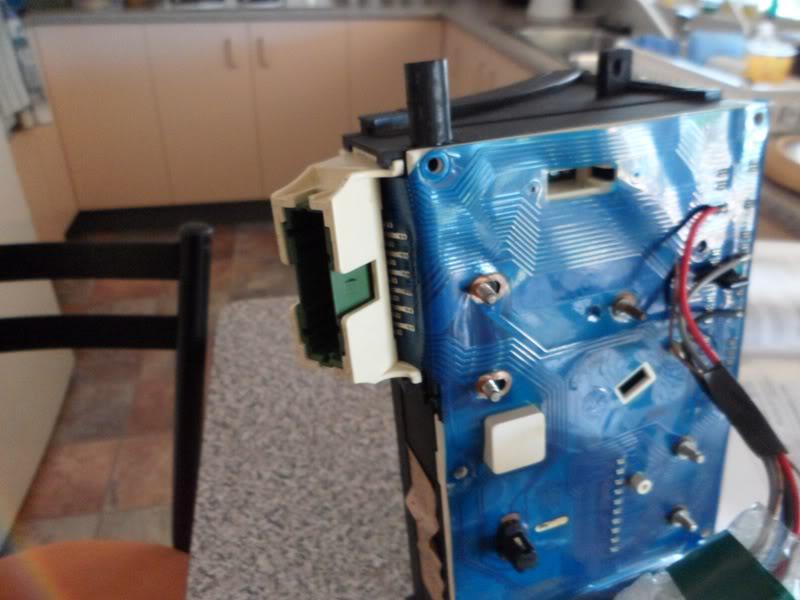

However I've spent the last hour trying to figure out how to "unclip" this connector so that the flexy printed circuit will allow me access into the internals of the cluster, with not luck

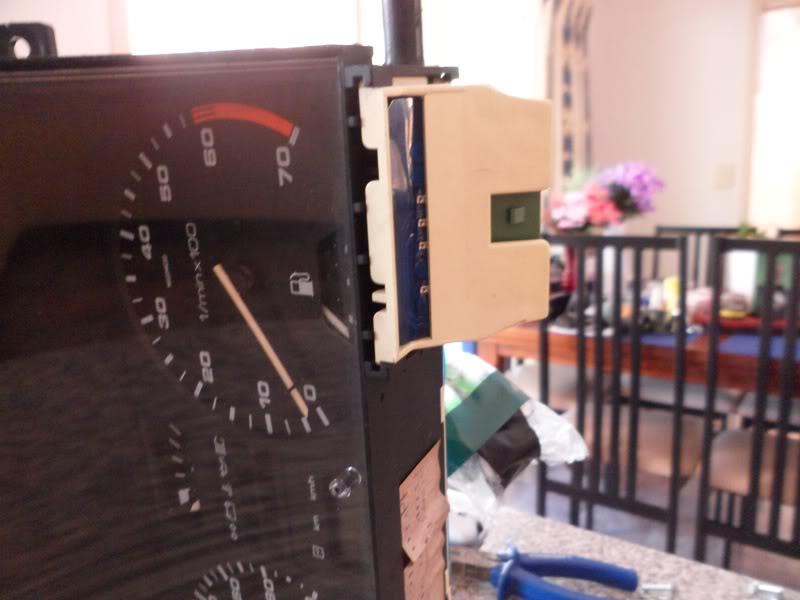

All the nuts/screws are undone, the only thing stopping me from opening it all up is that connection (big white plug with greenish looking plug inside it). Does anyone know what to do/how to disconnect it?

PITA of a job.
Thanks


EDIT: Figured out how to do, have to slide it whilst using a flat head screw driver to lever it up.
Got into the insides of the cluster and decided its to dangerous to play with such old, brittle equipment, the LED's can stay dead.

[benough]

You're keen!

The MFA stopped working in my cluster and I got it fixed for $70. There is an old school tech dude in Sydney that I was told about.

That's an option...

[ozgti]

lol! mine keep pulling out of the clips when I take the ribbon off! I need to work out why my MFD doesn't display MPG I get 99.9!!! Aweseome fuel range if only!

[ryana89]

Put it all back together and went to put it in the dash.

Speedo cable has also fallen apart at the connection to the cluster.
It all connected up though and works, just with alot of tappety/knocking sounds.

Probably time for a new speedo cable?

Don't spose that tech can also replace dead LED's?

[ozvino]

Ryan, I got an entire new cluster for $35; all I wanted was the Perspex cover

You could source a temp replacement to get you mobile and then look at getting yours repaired (to maintain your mileage) We have a few places in Melbourne also that repair clusters but they aren't always cheap.

Dave

[ryana89]

Thanks Dave, I may just take you up on that offer.

The car is in a runnable condition, the only suspect part at the moment is the speedo cable, plus it seems virtually impossible to properly connect the speedo cable up.

I'm just on the verge of replacing the front tyre's + a bit of steering work.
The current cluster doesn't have working water/oil warning lights aswell as a MFA that doesn't appear to work at all.

I'll send you a PM.
Thanks

[ozvino]

Sad to say I binned the cluster.....after peeling off the Perspex. Try the Loon, if not I may know where to source one

Dave

[ryana89]

Sad to say I binned the cluster.....after peeling off the Perspex. Try the Loon, if not I may know where to source one

Dave

Woops, sent the pm before reading that haha.

Thanks

[ozvino]

I'm sure you Can find someone in Brisbane. You could call these guys and ask, they must have been in business for 40+ years and are experts in vdo. They would be a good place to call and ask for advice and may have a suggestion for someone closer

Ringwood speedometer 03 9874 2260

Dave

[RedMk2Gti]

Search eBay German, there are plenty over there, I've got one for $56 landed to my door, much much cheaper than get it repaired

[mikinoz]

lol! mine keep pulling out of the clips when I take the ribbon off! I need to work out why my MFD doesn't display MPG I get 99.9!!! Aweseome fuel range if only!

You need to make sure the vacuum line is in good condition and connected to a vacuum spike on the intake.

[ozgti]

The swingometer works, but the digital readout doesn't.
