MKV DPF dissection

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • MKV DPF dissection

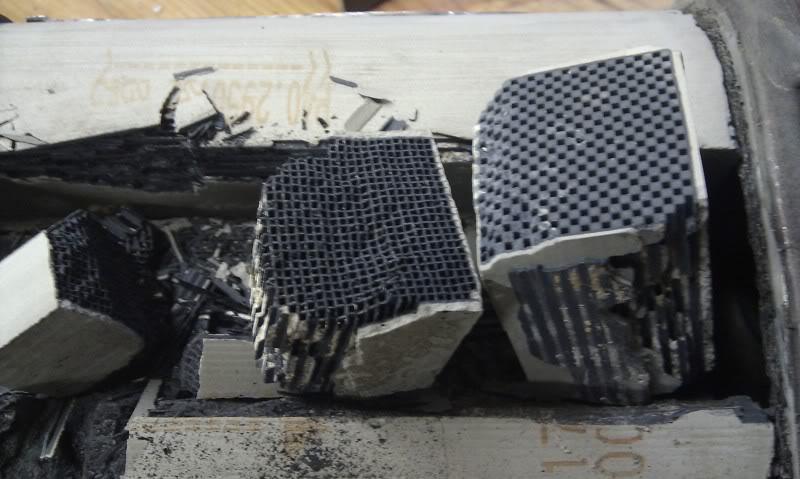

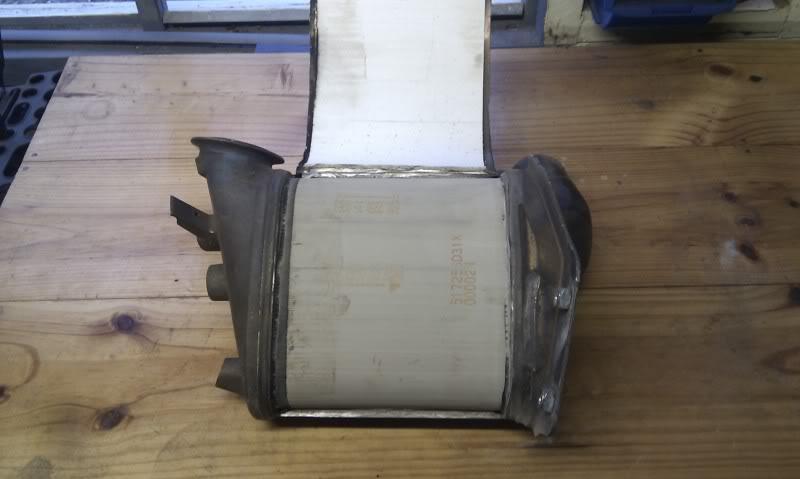

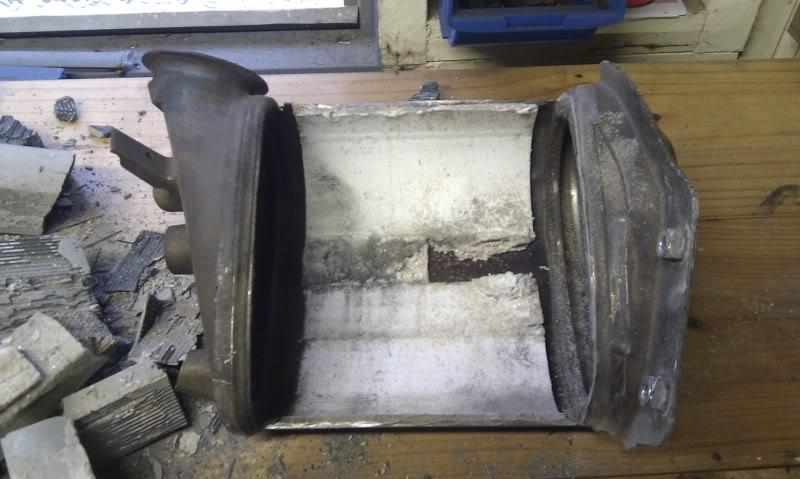

    Finally started cutting up Ryans old clogged DPF today. VERY interesting..

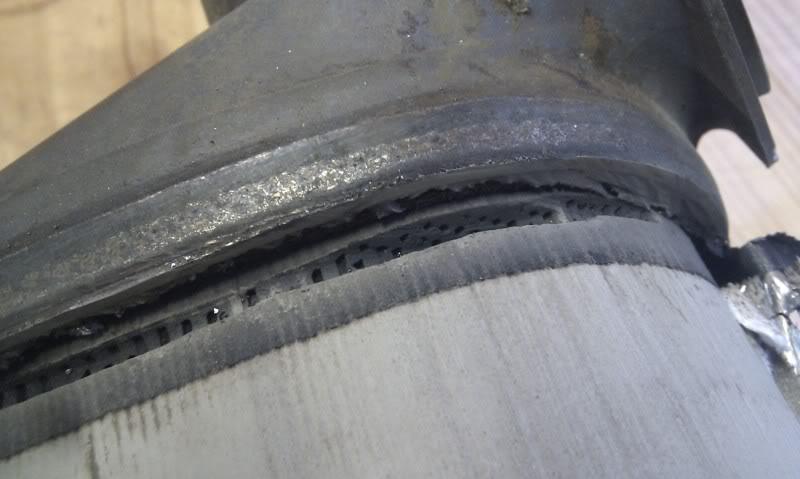

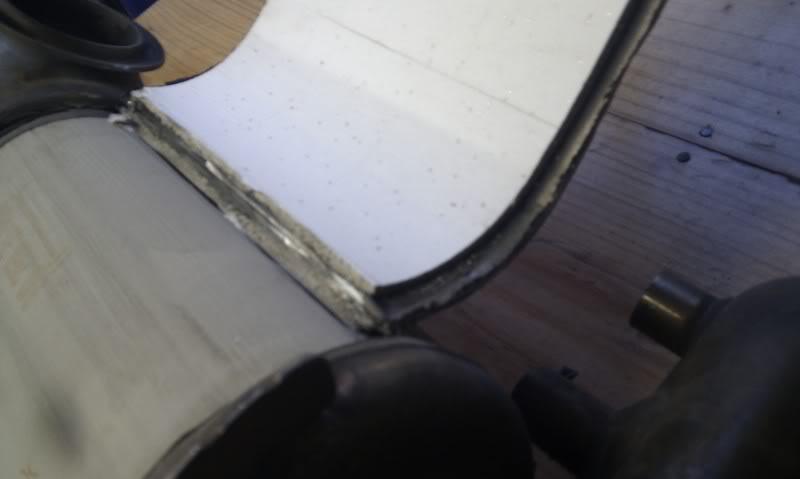

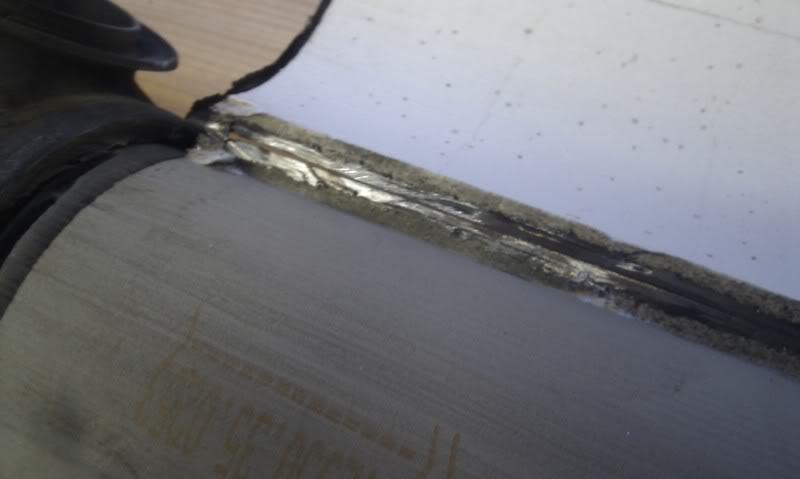

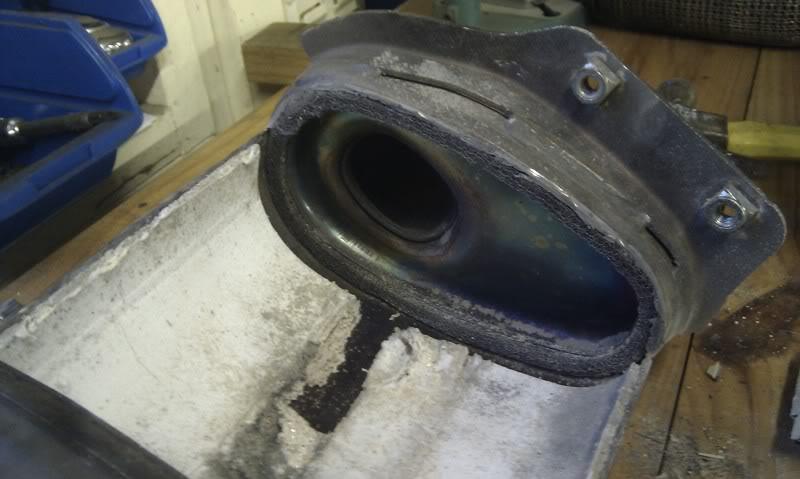

    First is the very fibrous and weak insulative layer around the inside of the can, you can see it in the flap I cut off. As it's no doubt something along the lines of asbestos, I'm wary of breathing it in! Secondly the innards of the DPF were a LOT cleaner than I thought. Seems the filter is made of full length cels that alternate at the very end being closed, and whilst the actual top was quite sooty, it was mainly full of the white ash you can see. This must be what builds up and can;t be burnt back off. I actually got very little black on my hands which suprised me, but a ton of ash came out of it. Perhaps Ryan (ryder01) I got it off had it backflushed and baked or something, but I expected a lot more soot. The cermaic was incredibly strong, and laying into it with a hammer had little effect, had to break it up with a big screwdriver and the hammer. Very much like ceramic, made the same sound as it broke up, and cracked the same. Once I got a central section out, I was able to remove big chunks of the core which I will keep for future study.

    In all the medium was far more symmetrical and uniform that I was expecting, and the ash that fills it was a suprise being white.







    Last edited by Greg Roles; 05-06-2011, 07:53 PM.
    2014 Skoda Yeti TDI Outdoor 4x4 | Audi Q3 CFGC repower | Darkside tune and Race Cams | Darkside dump pDPF | Wagner Comp IC | Snow Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Potenza Sports | Golf R subframe | Superpro sways and bushings | 034 engine mounts | MK6 GTI brakes |

  • #2

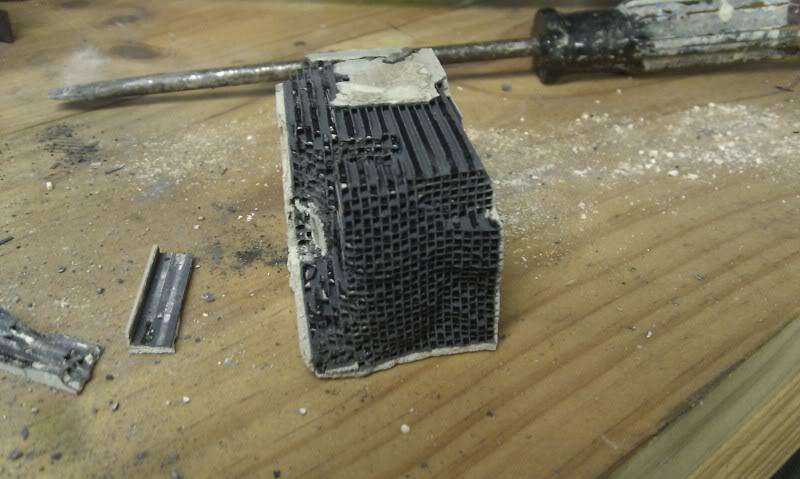

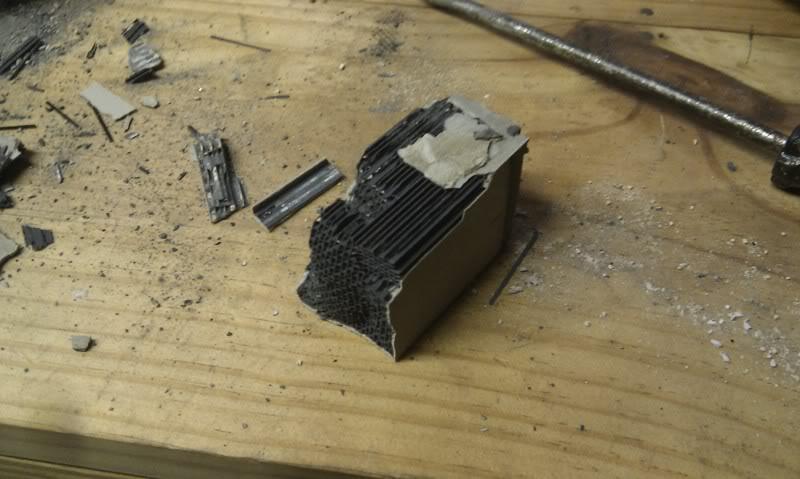

    And the detail,







    2014 Skoda Yeti TDI Outdoor 4x4 | Audi Q3 CFGC repower | Darkside tune and Race Cams | Darkside dump pDPF | Wagner Comp IC | Snow Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Potenza Sports | Golf R subframe | Superpro sways and bushings | 034 engine mounts | MK6 GTI brakes |

    Comment


    • #3

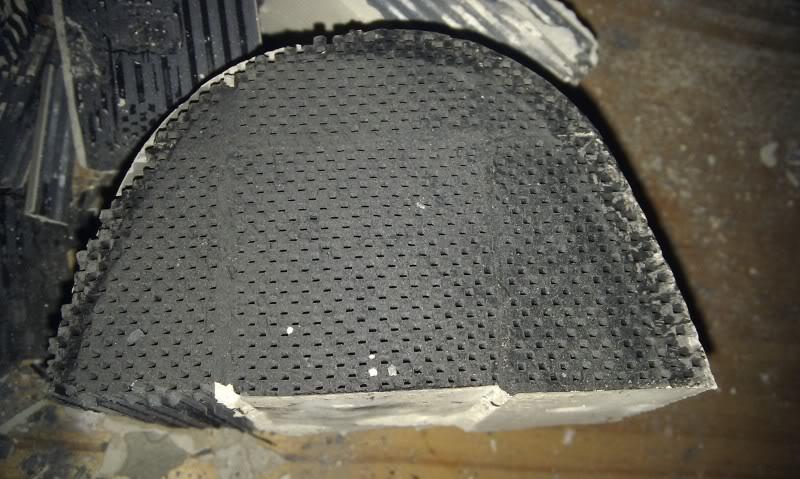

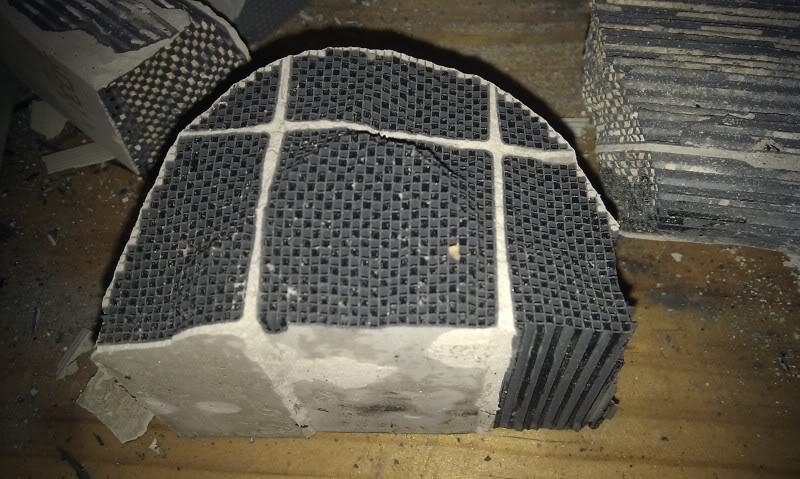

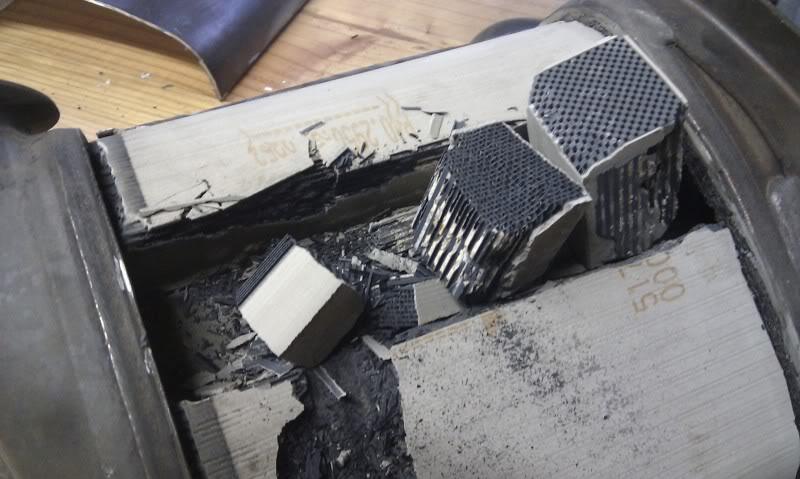

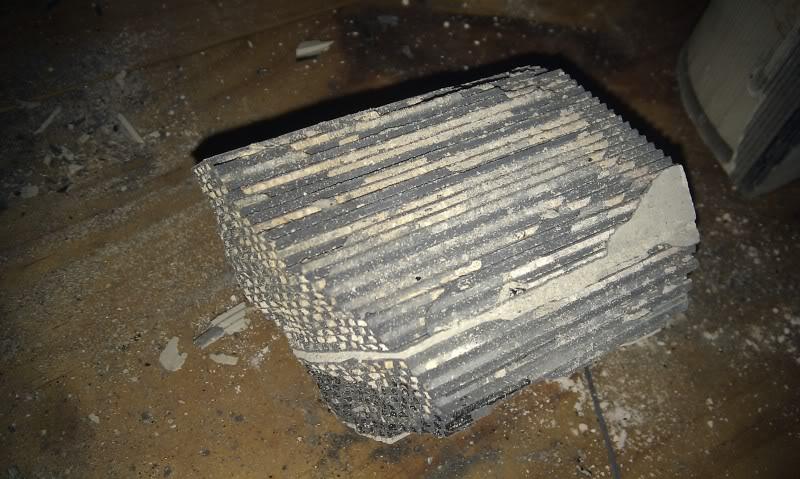

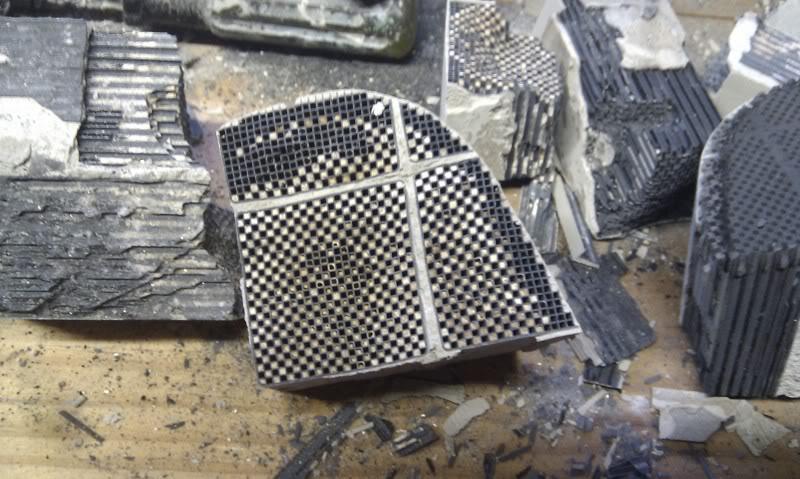

      Note the ash and symmetry in the design. Seems the filter is made up of several chambers which are ceramically bonded together probably to give it extra strength against cracking.







      2014 Skoda Yeti TDI Outdoor 4x4 | Audi Q3 CFGC repower | Darkside tune and Race Cams | Darkside dump pDPF | Wagner Comp IC | Snow Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Potenza Sports | Golf R subframe | Superpro sways and bushings | 034 engine mounts | MK6 GTI brakes |

      Comment


      • #4

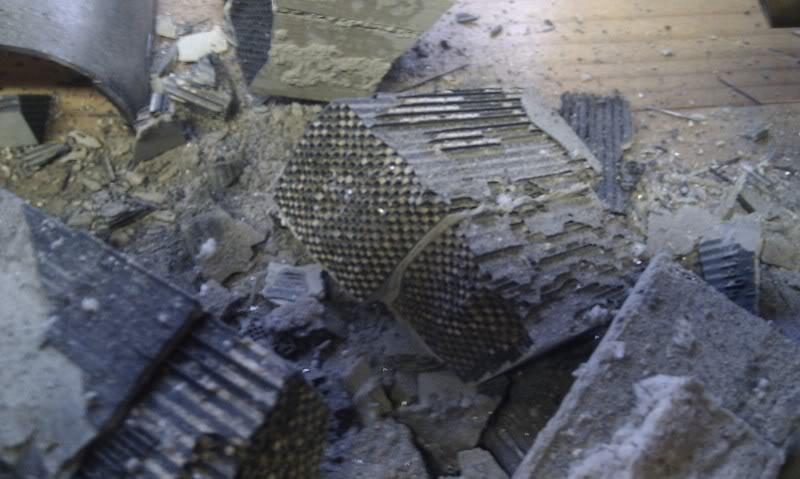

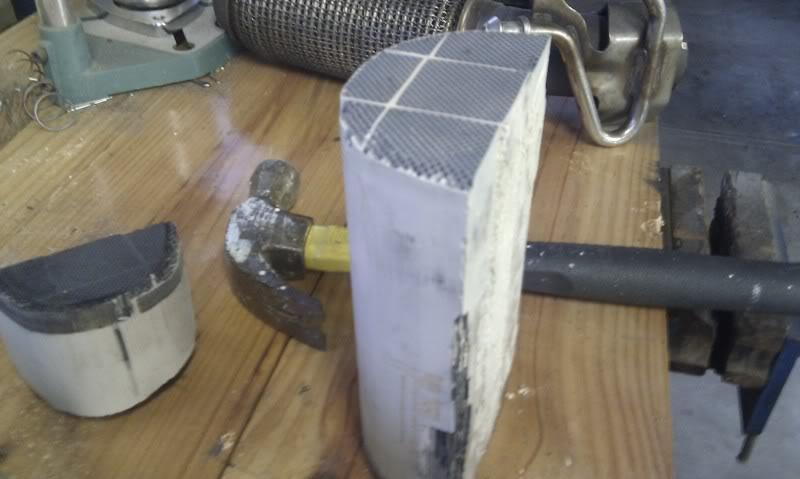

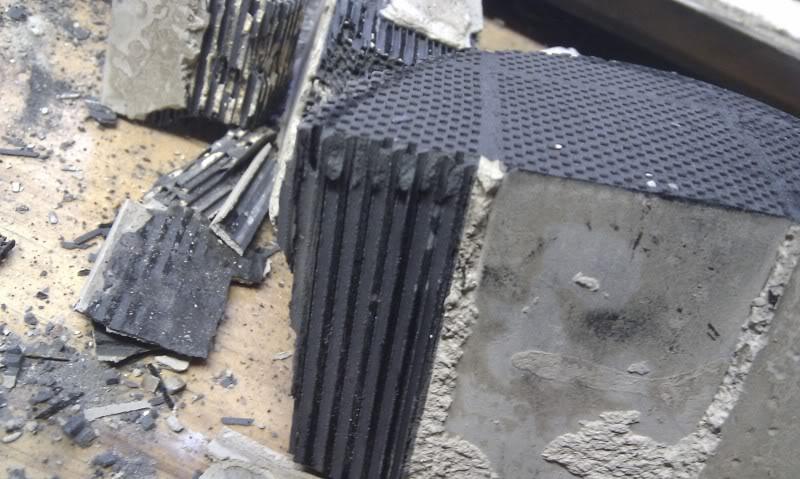

        Here's the big chunks showing the inner layout.









        2014 Skoda Yeti TDI Outdoor 4x4 | Audi Q3 CFGC repower | Darkside tune and Race Cams | Darkside dump pDPF | Wagner Comp IC | Snow Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Potenza Sports | Golf R subframe | Superpro sways and bushings | 034 engine mounts | MK6 GTI brakes |

        Comment


        • #5
          Some good work there, Greg. I see the box is ready to be welded up, or not?
          Performance Tunes from $850
          Wrecking RS OCTAVIA 2 Link

          Comment


          • #6
            Originally posted by Greg Roles View Post
            Note the ash and symmetry in the design. Seems the filter is made up of several chambers which are ceramically bonded together probably to give it extra strength against cracking.
            I'd say the "chambers" are standard base units used to construct the DPFs for varying sizes. It makes sense that the ash is white since the regen cycles should burn off the carbon. The poor thing much have been regenerating quite a lot near the end in a futile effort to clear the obstruction hence the relative lack of soot.

            So there's no separate cat section at all?
            Resident grumpy old fart
            VW - Metallic Paint, Radial Tyres, Laminated Windscreen, Electric Windows, VW Alloy Wheels, Variable Geometry Exhaust Driven Supercharger, Direct Unit Fuel Injection, Adiabatic Ignition, MacPherson Struts front, Torsion Beam rear, Coil Springs, Hydraulic Dampers, Front Anti-Roll Bar, Disc Brakes, Bosch ECU, ABS

            Comment


            • #7
              Originally posted by Transporter View Post
              Some good work there, Greg. I see the box is ready to be welded up, or not?
              Not by a long shot.....

              Originally posted by kaanage View Post
              I'd say the "chambers" are standard base units used to construct the DPFs for varying sizes. It makes sense that the ash is white since the regen cycles should burn off the carbon. The poor thing much have been regenerating quite a lot near the end in a futile effort to clear the obstruction hence the relative lack of soot.

              So there's no separate cat section at all?
              Nope, it all looked uniform, seems there must be some platinum in the front portion of the DPF, and less towards the back, but there was neither any silver, nor obvious sign of difference front to back, it must be integrated in the walls.

              The new MK6 DPF has very obvious seperate pieces, but so too this is to keep the costs of replacing the DPF down, and makes for even lower emissions.

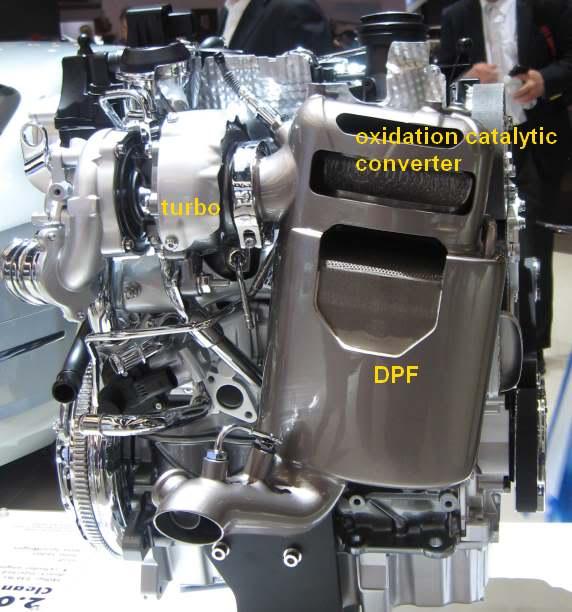

              From the rear of the engine....

              2014 Skoda Yeti TDI Outdoor 4x4 | Audi Q3 CFGC repower | Darkside tune and Race Cams | Darkside dump pDPF | Wagner Comp IC | Snow Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Potenza Sports | Golf R subframe | Superpro sways and bushings | 034 engine mounts | MK6 GTI brakes |

              Comment


              • #8
                JohnW provided a link to some VW tech manuals, this was in there...



                Nice info Greg

                Comment


                • #9
                  No wonder you gain so much by removing it - it looks very restrictive.
                  2007 Black Magic VW Golf GT TDi, Latte Leather, Sunroof, Bluefin Superchip, 18" Detroits, APR lower torque arm insert, APR Carbon Fibre Cold Air Intake system, GTi sideskirts & front lip, R32 Rear Bar, GTi Steering wheel, RNS-510,Infinity BassLink Subwoofer,stubby antenna, R8 Oil Cap, Golf R front calipers, slotted front rotors, ceramic brake pads, LITEC LED tail-lights, Dension Gateway Five, Rear Emblem Reverse Camera, H&R Ultralow coil-overs, Badge-less front grille

                  Comment


                  • #10
                    Originally posted by noone View Post
                    JohnW provided a link to some VW tech manuals, this was in there...

                    http://www.volkspage.net/technik/ssp/ssp/SSP_336.pdf
                    That's excellent - it clearly shows all the elements unique to the MkV GT diesel engine (at a basic level).
                    But the fact that VW moved away from the catalyst coated particulate filter so quickly shows the drawbacks of this since the DPFs must be clogging faster than their intended lifespan.
                    Resident grumpy old fart
                    VW - Metallic Paint, Radial Tyres, Laminated Windscreen, Electric Windows, VW Alloy Wheels, Variable Geometry Exhaust Driven Supercharger, Direct Unit Fuel Injection, Adiabatic Ignition, MacPherson Struts front, Torsion Beam rear, Coil Springs, Hydraulic Dampers, Front Anti-Roll Bar, Disc Brakes, Bosch ECU, ABS

                    Comment


                    • #11
                      that self study is a great read.

                      Greg - under "fuel quality" (right at the end) I would read that as good new for you. i.e - if you have a dpf delete, and no regen cycle happenning, then bio should be sweet.

                      Its great that it actually explains why rather than not. I always thought it was strange the way vw stopped saying bio was ok for their diesels right around the time the DPF's came in - before that it was just about encouraged!

                      anyway - as the self study mentions - the main DPF structure is made of silcon carbide coated with alumina (aluminium oxide) which is good for the platinum to bond to. the silicon carbide is a ceramic material very commonly used in these kind of applications.

                      You mentioned that there was a lack of black soot but a lot of ash - i would put forward a theory that the incorrect engine oil was being used - or - the oil was overfilled. This would lead to large amounts of oil vapour/ash being burned in the exhaust and subsequently clogging the DPF.

                      I have read one horror story from the states witha guy who bought a brand new jetta with a dpf. after just 10,000km the engine stopping at inconvenient times, because the DPF had become completely blocked. The reason - the dealer had used the wrong oil spec (he had a very early dpf car), AND had overfilled the oil at the first service. when i say the engine was failing - shutting down/refusing to restart due to fault codes.

                      there is an ongoing legal battle....
                      Last edited by gldgti; 06-06-2011, 06:10 PM.
                      '07 Touareg V6 TDI with air suspension
                      '98 Mk3 Cabriolet 2.0 8V
                      '99 A4 Quattro 1.8T

                      Comment


                      • #12
                        Self study is indeed a good read. Where can I get more?

                        I have NEVER had the active regeneration light come on in my car since I have owned it (6 months), I guess I do enough long distance driving (40km to work and back every week day) and give it enough stick!
                        Golf GT Sport TDI

                        Comment


                        • #13
                          In the event of failure from the temperature sender
                          before turbocharger, the turbocharger can no longer
                          be protected against excessively high temperatures.
                          Regeneration of the diesel particulate filter is stopped.
                          By means of the preglow control lamp, the driver is
                          informed that the vehicle should be driven to a
                          workshop. To reduce the carbon soot emissions,
                          exhaust gas recirculation is switched off.
                          Poor mans DPF removal? lol
                          Golf GT Sport TDI

                          Comment


                          • #14
                            Originally posted by jazd View Post
                            Self study is indeed a good read. Where can I get more?

                            I have NEVER had the active regeneration light come on in my car since I have owned it (6 months), I guess I do enough long distance driving (40km to work and back every week day) and give it enough stick!
                            Car does a no light active regen at 40-45% clogged, it doesn't let you know. At 60% (approx) you get the light, and it then tries like mad to force a regen, and wants you to drive at speed to get it hot. If that fails it goes on to put the car into limp mode at 75-80% clogged at which point you have to take it to VW to have it regenned with the bonnet open so it doesn't catch fire! The coli light comes on after the failed 60% regens, I've managed that already in my messing around.
                            2014 Skoda Yeti TDI Outdoor 4x4 | Audi Q3 CFGC repower | Darkside tune and Race Cams | Darkside dump pDPF | Wagner Comp IC | Snow Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Potenza Sports | Golf R subframe | Superpro sways and bushings | 034 engine mounts | MK6 GTI brakes |

                            Comment


                            • #15
                              Originally posted by jazd View Post
                              Poor mans DPF removal? lol
                              The above hapens eventually mate, the car will refuse to run after 80%. I've not been willing to confirm that though!
                              2014 Skoda Yeti TDI Outdoor 4x4 | Audi Q3 CFGC repower | Darkside tune and Race Cams | Darkside dump pDPF | Wagner Comp IC | Snow Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Potenza Sports | Golf R subframe | Superpro sways and bushings | 034 engine mounts | MK6 GTI brakes |

                              Comment
