ACC Retrofit Advice Please for Golf MK7

[MIG]

@MIG: yes, I understand how a legit GeKo account and ODIS access can provide OP a way of "CP matching" his new hex13 module - but simply having J2434 (with, or without an out-of-date VCDS device) ain't going to do it!!! Hence my intrigue.

Also, thanks for the info on the 7NO chassis radars (I didn't know this) - but I still haven't heard that anyone had managed to hack a MQB platform version radar (Why would Bosch continue to leave the debug header open on the MCU on these later modules?)

Don

ODIS supports J2434 devices. Is there some technical requirement that's missing? My understanding is that this is how independent shops have access to Geko, ODIS-S 10.0.0 | ODIS-E 14.1.0 | AUTEL J2534 - YouTube

[guile]

thanks for the feedback gents, i have a minor update with component protection now removed...

i used the passthru dongle and access to odis by paying $40 for a single 1 hour use from these guys...

VW GEKO ODIS Online Login Account

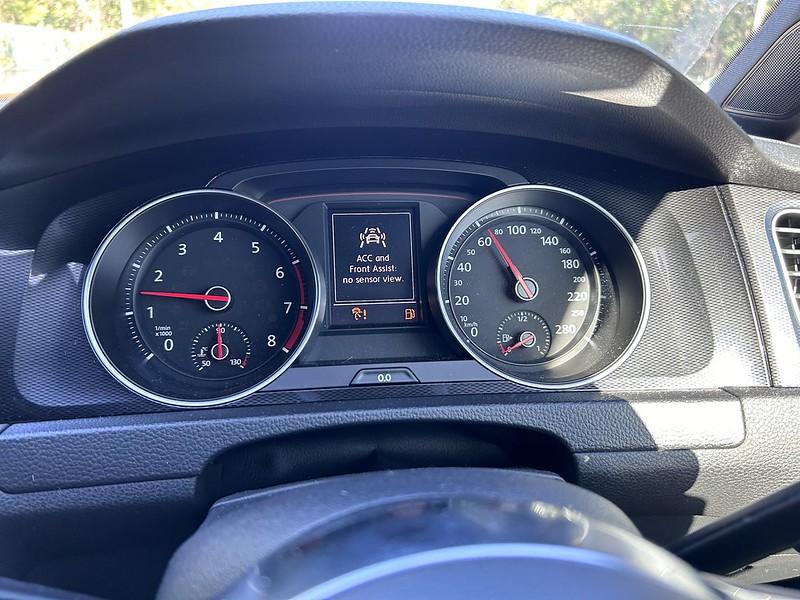

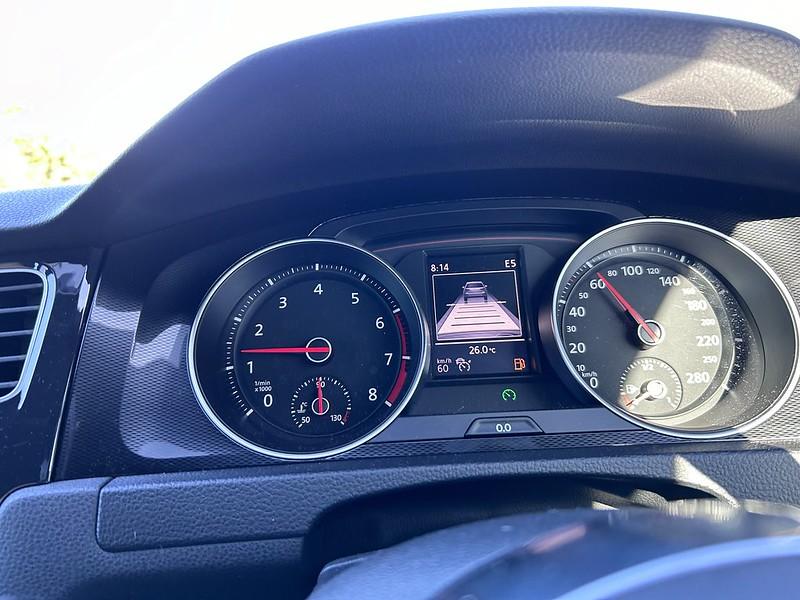

only error remaining is linked to having an android head unit...

Friday,01,March,2024,18:14:36:54062
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 23.11.0.0 (x64)
Data version: 20231027 DS351.0
Ross-Tech: Home


VIN: WVWZZZAUZFW270452 License Plate: INK10
Mileage: 178704km-111041mi Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: AU-VW37 (5Q0)
Scan: 01 02 03 08 09 10 13 14 15 16 17 19 32 42 44 52 55 5F A9

VIN: WVWZZZAUZFW270452 Mileage: 178704km-111041miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
14-Susp. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
32-Differential Locks -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
A9-Struct. Borne Sound -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CHHA) Labels:. 06K-907-425-V1.clb
Part No SW: 5G0 906 259 HW: 06K 907 425 B
Component: 2.0l R4 TFSI H13 0010
Revision: --H13--- CVN: 584B723D
Coding: 091D00324464050B2000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_ECM20TFS0215G0906259 001014
ROD: EV_ECM20TFS0215G0906259.rod
VCID: 6BD5C38F8256DEC906-803E
VINID: 9E69EAAAA465A969C21C0105082C00D17E

No fault code found.
Readiness: 1010 0001

-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels: 0D9-927-770.clb
Part No SW: 0D9 300 020 G HW: 02E 927 770 AQ
Component: DQ250-6V MQB H53 4520
Revision: 03253104 Serial number: TFK01502080055 CVN: 0000B2F1
Coding: 0014
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_TCMDQ250021 001001
ROD: EV_TCMDQ250021.rod
VCID: 1939C947184A9C5924-804C

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 5Q0-907-379-IPB-V1.clb
Part No SW: 3Q0 907 379 Q HW: 3Q0 907 379 F
Component: ESC H42 0610
Revision: 00000000 Serial number: 60385000000728
Coding: 01FA93A15427296C077B060541C56980C92A94E0608296F718 4250B9C209
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_Brake1UDSContiMK100IPB 034036
ROD: EV_Brake1UDSContiMK100IPB_034.rod
VCID: 489F5C03F360D5D14B-801C

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 5G0-907-044.clb
Part No SW: 5G0 907 044 BC HW: 5G0 907 044 BC
Component: Climatronic H03 1001
Revision: 00001K08 Dataset Number: 0000
Coding: 00120004200100001005000012101400
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_ACClimaBHBVW37X 003018
ROD: EV_ACClimaBHBVW37X_003_VW37.rod
VCID: 69D9B98788AACCD974-803C

Fresh air blower control module (front):

A/C pressure/coolant temperature sensor:

Air quality sensor:

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:| 5Q0-937-08X-HV1.clb
Part No SW: 5Q0 937 084 AJ HW: 5Q0 937 084 AJ
Component: BCM MQBAB H H18 0137
Serial number: 01011504503381 Dataset Number: 5G0063v____ 0001
Coding: 03001A42C24122FB0BA44080B10C0728100000000000000000 0000000000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_BCMCONTI 013000
ROD: EV_BCMBOSCH_013.rod
VCID: 000F84239BD02D91C3-8054

Wiper motor control module:
Subsystem 1 - Part No SW: 5G2 955 119 A HW: 5G2 955 119 A Labels: 5QX-955-119-V1.CLB
Component: WWS 150202 042 0551
Serial number: 150207073710
Coding: 0E4DDD

Rain/Light Recognition Sensor:
Subsystem 2 - Part No SW: 5Q0 955 547 A HW: 5Q0 955 547 A Labels: 5Q0-955-547.CLB
Component: RLHS 037 0059
Serial number: S5Y15M02D16H19M45S23
Coding: 00A8DD

Anti-theft alarm system sensor:
Subsystem 3 - Part No SW: 5Q0 951 172 HW: 5Q0 951 172
Component: Sensor, DWA 005 0315
Serial number: 000000000ZY1502342Z9

Alarm horn:
Subsystem 4 - Part No SW: 5Q0 951 605 HW: 5Q0 951 605
Component: Sirene, DWA 004 0311
Serial number: 00000000000061644739

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791) Labels:| 5Q0-919-294.clb
Part No SW: 5Q0 919 294 E HW: 5Q0 919 294 A
Component: PARKHILFE 8K H03 0048
Revision: -------- Serial number: 39391504217542 Dataset Number: 5G0039v__A_ 0020
Coding: 0031151011
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_EPHVA18AU3700000 002024
ROD: EV_EPHVA18AU3700000_002_VW37.rod
VCID: 3D713DD7ACA28079E8-8068

No fault code found.

-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J42 Labels:| 5Q0-907-567.clb
Part No SW: 5Q0 907 567 J HW: 5Q0 907 567 J
Component: ACC3 H09 0395
Serial number: 23061375030055 Dataset Number: 5g0114v____ 0014
Coding: 001E1300FE030B
Shop #: WSC 00028 028 00023
ASAM Dataset: EV_ACCBoschMQB 001022
ROD: EV_ACCBoschMQB_VW37.rod
VCID: 428B4E2BD55CFF8195-8016

No fault code found.

-------------------------------------------------------------------------------

[guile]

Address 14: Susp. Elect. (J250) Labels: 5Q0-907-376.clb
Part No SW: 5Q0 907 376 HW: 5Q0 907 376
Component: DAEMPFUNGS-SG H16 0115
Serial number: 19011541350032 Dataset Number: 5G0532v____ 0022
ASAM Dataset: EV_DRCONTITEMIC 001019
ROD: EV_DRCONTITEMIC_VW37.rod
VCID: 76E3E2FBC9141321E9-8022

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5Q0-959-655.clb
Part No SW: 5Q0 959 655 D HW: 5Q0 959 655 D
Component: AirbagVW20 014 0385
Serial number: 003F6R0G6FAC Dataset Number: 5G0003v____ 0096
Coding: 98CCC000000000005C00000000C800000065
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_AirbaVW20SMEVW37X 002130
ROD: EV_AirbaVW20SMEVW37X_VW37.rod
VCID: 41894127D05AE4998C-8014

Crash sensor for side airbag: driver side:
Subsystem 1 - Part No SW: ----------- HW: 480 001 102 15
Component: SideSensor_Df 001 0887
Serial number: 3576700000060274E21L
Coding: 2D2D2D

Front Passenger's Side Airbag Crash Sensor:
Subsystem 2 - Part No SW: ----------- HW: 480 001 102 15
Component: SideSensor_Pf 001 0887
Serial number: 3586700000036134E21K
Coding: 2D2D2D

Rear Side Airbag Crash Sensor (on driver's side):
Subsystem 3 - Part No SW: ----------- HW: 480 400 602 15
Component: SideSensor_Dr 001 6149
Serial number: 3516502A1196FF53D06K
Coding: 2D2D2D

Passenger side rear thorax airbag crash sensor:
Subsystem 4 - Part No SW: ----------- HW: 480 400 602 15
Component: SideSensor_Pr 001 6149
Serial number: 3526502BB196FF54804Q
Coding: 2D2D2D

Crash sensor for front airbag: driver side:
Subsystem 5 - Part No SW: ----------- HW: 480 400 502 15
Component: FrontSensor_D 001 6149
Serial number: 3556502C5192BC734039
Coding: 2D2D2D

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J524) Labels:| 5Q0-953-549.clb
Part No SW: 5Q0 953 521 P HW: 5Q0 953 569 A
Component: Lenks.Modul 075 0175
Revision: FF032032 Serial number: 20150212400803
Coding: 0410
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_SMLSVALEOMQB 001015
ROD: EV_SMLSVALEOMQB.rod
VCID: 3F8D47DFA6AE9269FA-806A

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5G0-920-XXX-17.clb-SRI3
Part No SW: 5G1 920 756 HW: 5G1 920 756
Component: KOMBI 301 4310
Coding: 27AD09083F80000800802A011400000000000000
Shop #: WSC 00046 412 12345
ASAM Dataset: EV_DashBoardVDDMQBAB 009043
ROD: EV_DashBoardVDDMQBAB_009_VW26.rod
VCID: 6ADBC68B8DACC7C17D-803E

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:| 5Q0-907-530-V1.clb
Part No SW: 5Q0 907 530 AC HW: 5Q0 907 530 F
Component: GW MQB High 128 1204
Revision: -------- Serial number: 0003097448 Dataset Number: 5G0067v____ 2011
Coding: 030100342F085900FF00026B9C0F0001000105000000000000 0000000000
Shop #: WSC 00046 412 12345
GVL: 01543C5000000000400C90000000CC00000000000000000000 00000000000000
ASAM Dataset: EV_GatewLear 011020
ROD: EV_GatewLear_011.rod
VCID: 72EBDEEBA57C0F01C5-8026

Generator:

Multifunction steering wheel control module:
Subsystem 2 - Part No SW: 5G0 959 442 N HW: 5G0 959 442 N Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H06 0038
Serial number: 29140000427050064121
Coding: 2DFFFF

Battery Monitoring Control Module:
Subsystem 3 - Part No SW: 5Q0 915 181 G HW: 5Q0 915 181 G
Component: J367-BDMHella H04 8050
Serial number: 4199495603

No fault code found.

-------------------------------------------------------------------------------
Address 32: Differential Locks (J492) Labels:* 0CQ-907-554.clb
Part No SW: 0CQ 907 554 E HW: 0CQ 907 554 E
Component: Quersperre H52 8040
Serial number: HA1-00002.12.14 Dataset Number: v1260x015G0 0000
Coding: 0001
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_LockElectHA1VW37X 001001
ROD: EV_LockElectHA1VW37X.rod
VCID: 479D5F3FFE7EDAA942-8012

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels:| 5QX-959-X93-42.clb
Part No SW: 5Q0 959 593 D HW: 5Q0 959 593 B
Component: TSG FS 020 0028
Serial number: 270115BAP14609 Dataset Number: 5G0222v____ 0061
Coding: 003E02208001040000000000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_DCUDriveSideEWMAXKLO 006003
ROD: EV_DCUDriveSideEWMAXCONT.rod
VCID: 428B4E2BD55CFF8195-8016

Rear Driver Side Door Control Module:
Subsystem 1 - Part No SW: 5Q0 959 812 HW: 5Q0 959 812 Labels: 5QX-959-81X-V1.CLB
Component: FOND_FHSG_DRV 005 0005
Serial number: 00000000000005296446
Coding: 0D0000

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 5Q0-909-144.clb
Part No SW: 3Q0 909 144 H HW: 3Q0 909 144 H
Component: EPS_MQB_ZFLS 505 5061
Dataset Number: 5G0074v____ 0976
Coding: 8103
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_SteerAssisMQB 012140
ROD: EV_SteerAssisMQB_012_VW37.rod
VCID: 377D2FFF8E9EAA2932-8062

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels:| 5QX-959-X92-52.clb
Part No SW: 5Q0 959 592 D HW: 5Q0 959 592 B
Component: TSG BFS 020 0028
Serial number: 060215BB515856 Dataset Number: 5G0157v____ 0057
Coding: 003E02208E01040000800000
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_DCUPasseSideEWMAXKLO 006003
ROD: EV_DCUPasseSideEWMAXCONT.rod
VCID: 41894127D05AE4998C-8014

Rear Passenger Door Control Module:
Subsystem 1 - Part No SW: 5Q0 959 811 HW: 5Q0 959 811 Labels: 5QX-959-81X-V1.CLB
Component: FOND_FHSG_PSG 005 0005
Serial number: 00000000000005331087
Coding: 150000

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range (J745) Labels:| 7P6-907-357.clb
Part No SW: 7P6 907 357 D HW: 7P6 907 357 A
Component: AFS-ECU H07 0090
Revision: -------- Serial number: -------------- Dataset Number: 5G0036v____ 0021
Coding: 029603000B000200
Shop #: WSC 01357 011 00200
ASAM Dataset: EV_HeadlRegulVWAFSMQB 001120
ROD: EV_HeadlRegulVWAFSMQB.rod
VCID: 408F4423DB50ED9183-8014

Left Headlamp Power Output Stage:
Subsystem 1 - Part No SW: 3D0 941 329 E HW: 3D0 941 329 E Labels: 3D0-941-329.CLB
Component: LeiMo links H01 0002
Coding: 2E0000

Right Headlamp Power Output Stage:
Subsystem 2 - Part No SW: 3D0 941 329 E HW: 3D0 941 329 E Labels: 3D0-941-329.CLB
Component: LeiMo rechts H01 0002
Coding: 2E0000

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr.
Cannot be reached

-------------------------------------------------------------------------------
Address A9: Struct. Borne Sound (J869) Labels: 4H0-907-159.clb
Part No SW: 5G0 907 159 HW: 4H0 907 159 A
Component: SAS-GEN 2 H06 0014
Serial number: 150118201063
ASAM Dataset: EV_SoundActuaGen2AU64X 003010
ROD: EV_SoundActuaGen2AU64X.rod
VCID: 6BD5C38F8256DEC906-803E

No fault code found.

End-------------------------(Elapsed Time: 04:43)--------------------------

[guile]

It looked like it might work when i first drove it...



but it wasn't long before i got the dreaded ACC and front assist no sensor view warning...



I'm hoping its linked to the alignment settings and i'm planning on following this thread to try and resolve it...

2014/15 MK7 Golf, MQB, ACC system faults | Ross-Tech Forums

Found solution to ACC Not Available / Radar calibration needed (with VCDS) | GOLFMK7 - VW GTI MKVII Forum / VW Golf R Forum / VW Golf MKVII Forum

MK7 ACC radar adjustment without calibration board | GOLFMK7 - VW GTI MKVII Forum / VW Golf R Forum / VW Golf MKVII Forum

[MIG]

Great work!

Yep, before I got my one dialled in, it was only 50m before it cut off.

Check the error log and measuring values for angle. If you can park on level ground, use your phone spirit level to get the up-down adjustment right, then tweak the left-right.

If you have a laser level, getting the little mirror in line with the car's thrust angle is a good place to start.

[guile]

If you have a laser level, getting the little mirror in line with the car's thrust angle is a good place to start.

thanks for the advice mate, I'll definitely start with the level on my phone...

I'm not sure what you mean about getting the little mirror in line with the thrust angle so would appreciate anymore detail or other tips you have please...
